TEHALIT.DA200 One-sided column DA200-45 with an expansion mechanism 2.7-3m aluminum DAS452700ELN

local index:
TKK043TEHA
Catalog No:
DAS452700ELN
EAN code:
4012740901932
Manufacturer: TEHALIT
Halogen free: Yes
Color: Silver
Shape: Rectangular
Price:
604,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

One-sided electrical installation column DA200-45 with expansion mechanism, for 45x45mm fittings from the tehalit.DA200 series. Compatible socket type: Mosaïc 45.

Technical data

  • Halogen free
    Yes
  • Shape
    Rectangular
  • Compatible product
    Mosaic 45
  • Surface finish
    Anodized
  • PKWIU
    25.11.23.0
  • Color
    Silver
  • Material
    Aluminum
  • Family
    TEHALIT.DA200
  • Accurate color
    Aluminum

Other technical data

  • Pillar shape
    Rectangular
  • Prewired
    No
  • Height levelling
    300 mm

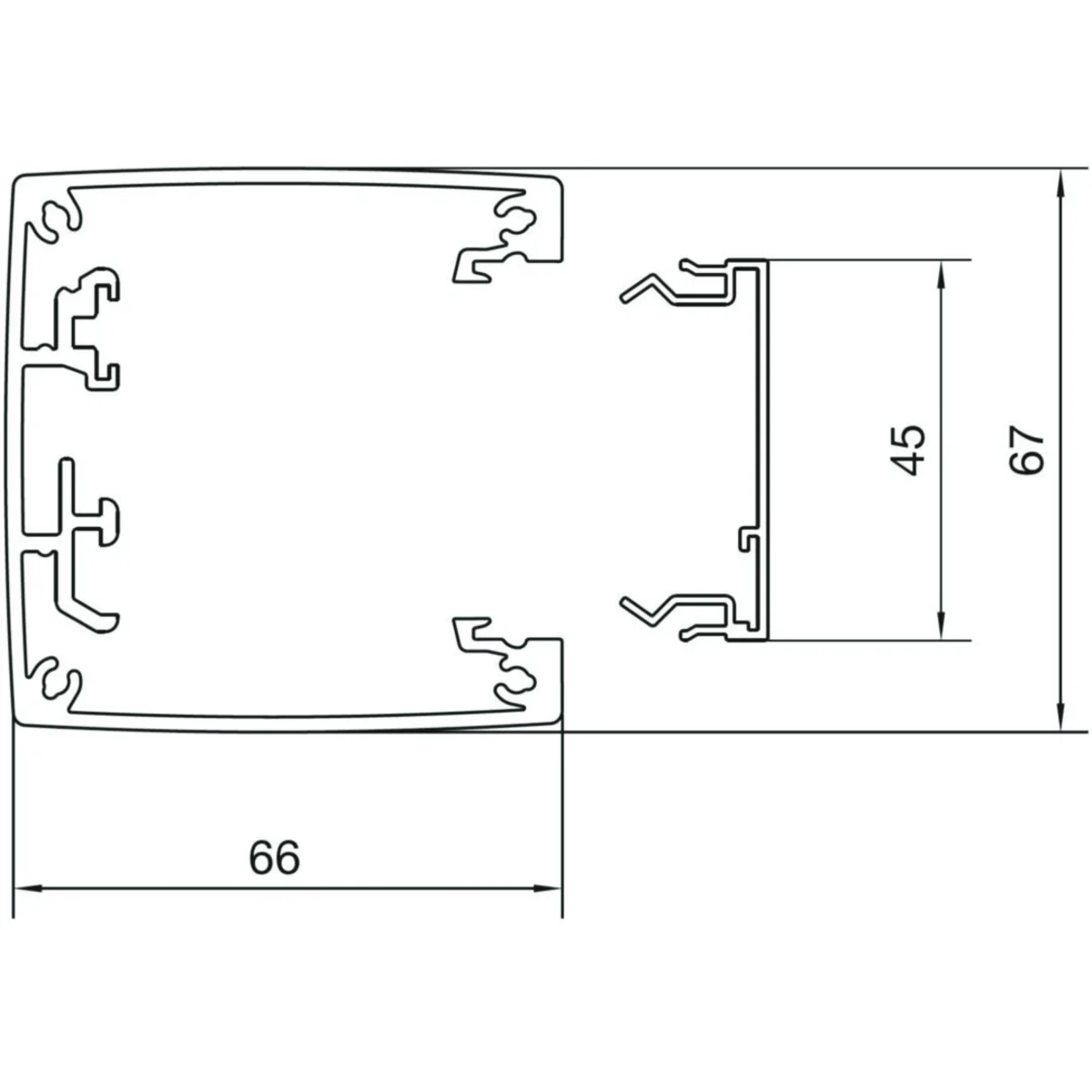

  • Column depth
    66 mm
  • Number of usable covers
    1
  • Type of fastening
    Stretch
  • Cable entry
    Top/bottom
  • Material installation column
    Aluminium
  • Material installation column halogen free
    Yes
  • Material cover
    Aluminium
  • Material cover halogen free
    Yes
  • Model
    Single-sided
  • Adjustable
    Yes
  • Column height
    2700 ... 3000 mm
  • Column width
    66 mm
  • Cover width
    45 mm
  • Place variable
    No
  • Through-going profile
    Yes
  • Material quality installation column
    Other
  • Surface protection column
    Anodised
  • Material quality cover
    Other
  • Useful cross section
    1200 mm²

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 16 pcs.
Weight (kg) 7,000 9,412 170,592
Width (m) 0,065 0,180 0,800
Length (m) 0,065 0,160 0,800
Depth (m) 2,700 2,755 3,010
