TEHALIT.DA200 Double-sided mini-column DA200-45 650mm aluminum DAP245700ELN

local index:
TKK025TEHA
Catalog No:
DAP245700ELN
EAN code:
4012740902076
Manufacturer: TEHALIT
Halogen free: Yes
Color: Silver
Shape: Rectangular
Price:
320,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double sided electrical installation minicolumnDA200-45, for 45x45 mm accessories, tehalit.DA200 series. Compatible socket type: Mosaic 45. Pole shape: rectangular. Installation method: perforated bottom.

Technical data

  • Halogen free
    Yes
  • Shape
    Rectangular
  • Fixing
    perforated bottom
  • Family
    TEHALIT.DA200
  • Accurate color
    Aluminum
  • Color
    Silver
  • Material
    Aluminum
  • Compatible product
    Mosaic 45
  • Surface finish
    Anodized
  • PKWIU
    25.11.23.0

Other technical data

  • Pillar shape
    Rectangular
  • Prewired
    No
  • Height levelling
    0 mm

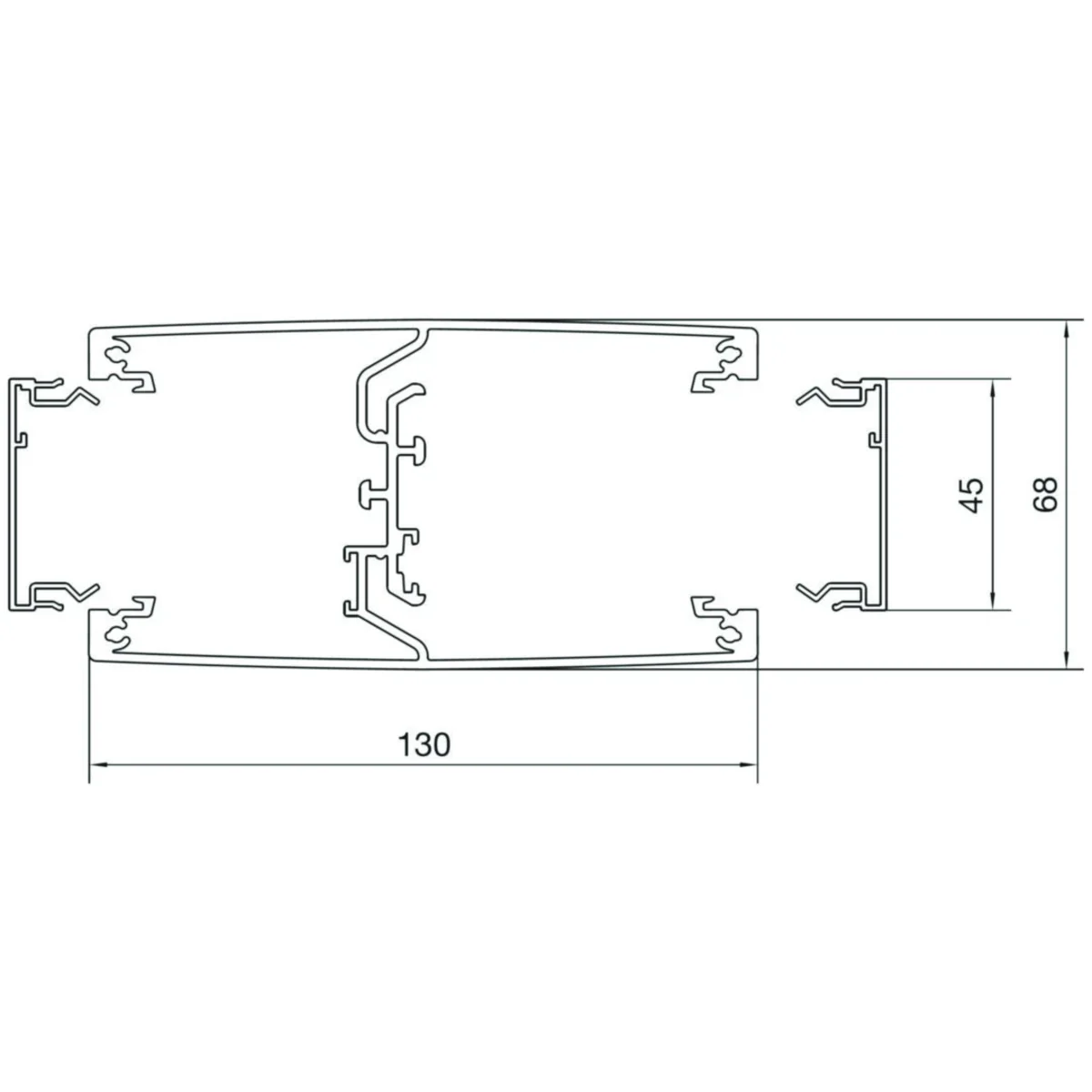

  • Column depth
    130 mm
  • Number of usable covers
    2
  • Type of fastening
    Screwing
  • Cable entry
    Top/bottom
  • Material installation column
    Aluminium
  • Material installation column halogen free
    Yes
  • Material cover
    Aluminium
  • Material cover halogen free
    Yes
  • Model
    Double-sided
  • Adjustable
    No
  • Column height
    650 ... 650 mm
  • Column width
    68 mm
  • Cover width
    45 mm
  • Place variable
    No
  • Through-going profile
    Yes
  • Material quality installation column
    Other
  • Surface protection column
    Anodised
  • Material quality cover
    Other
  • Useful cross section
    3600 mm²

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 20 pcs.
Weight (kg) 2,700 3,645 95,900
Width (m) 0,220 0,215 0,800
Length (m) 0,220 0,210 1,030
Depth (m) 0,770 0,770 1,200
