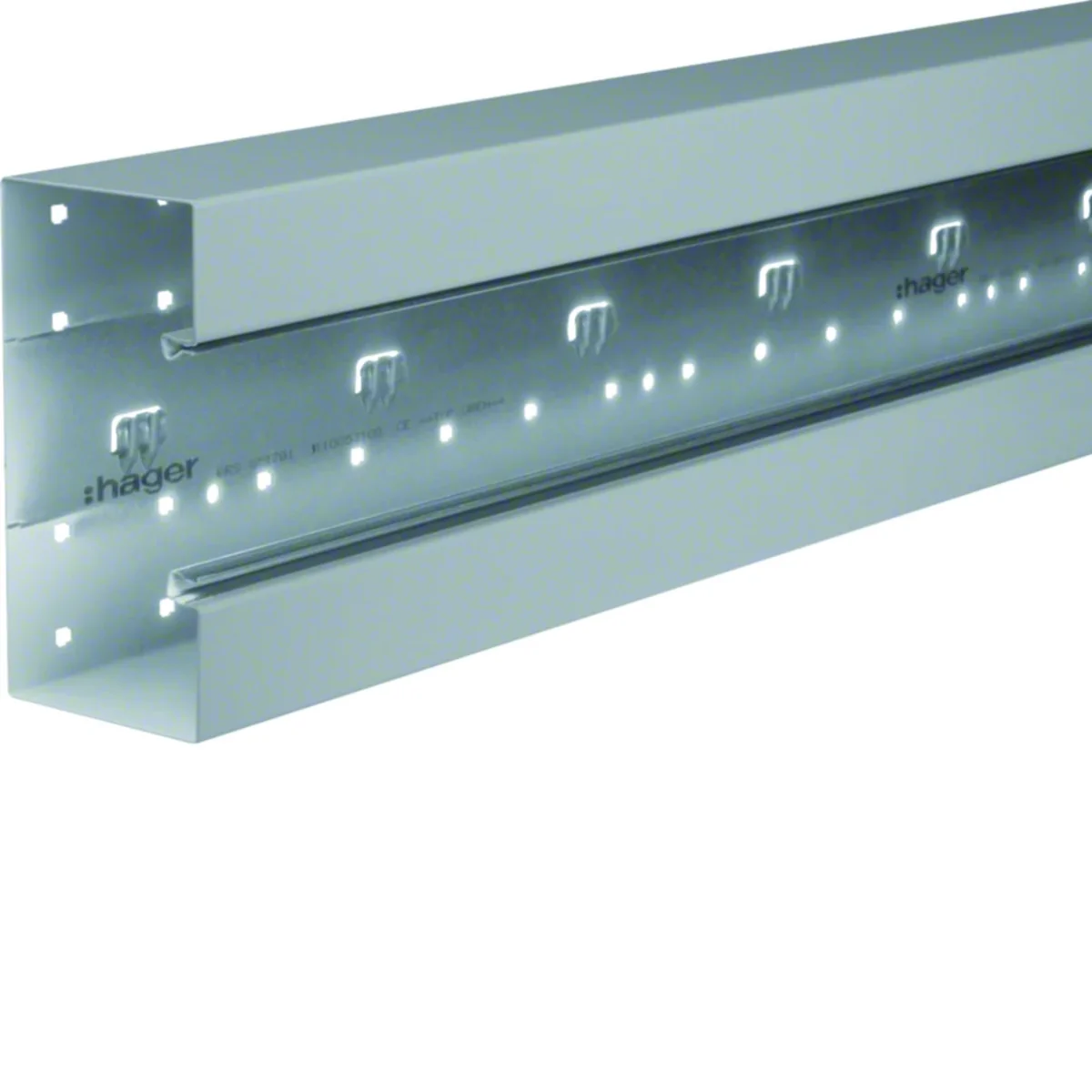

TEHALIT.BRS Galvanized steel base 83x170mm BRS851701VERZ

Indice locale:
TKM350TEHA
Numero di catalogo:
BRS851701VERZ
Codice EAN:
4012740215763
Produttore: TEHALIT
Halogen free: Yes
Length [mm]: 2000
Number of compartments: 1
Prodotto di grandi dimensioni
Prezzo:
102,34 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 4 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Base from the tehalite.BRS series.

Series characteristics:

Today's environment work needs a simple and functional design. This applies not only to everyday office work, but also to interior design. Less curves, less edges, less decorations, more functions - this is an increasingly noticeable trend in design. The tehalit.BRS under-sill channel system, made of steel sheet, meets these requirements thanks to its simple and functional form. Thanks to a wide range of products, quick assembly, flexible installation of devices and simplification of the way of working - tehalit.BRS is a perfect solution for commercial facilities.

Dati tecnici

  • Halogen free
    Yes
  • Number of compartments
    1
  • Material
    Galvanized steel sheet
  • Family
    TEHALIT.BRS
  • Cover width [mm]
    80
  • Surface finish
    Galvanized
  • Usable cross-section [mm²]
    13180
  • Protective film
    Yes
  • PKWIU
    25.99.29.0
  • Length [mm]
    2000
  • Color
    Silver
  • Compatible product
    Standard 60mm, 45mm, CEE, KNX, MCB
  • Width [mm]
    170
  • Height [mm]
    83
  • Accurate color
    galvanized
  • Number of chambers
    1 to 4
  • Number of covers that can be fitted
    1

Altri dati tecnici

  • Width
    170 mm
  • Length
    2000 mm
  • Covers supplied with the product
    No
  • Cover width 2
    0 mm
  • Symmetric
    Yes
  • Material
    Steel
  • Halogen free
    Yes
  • Colour
    Other
  • With protective foil
    Yes
  • With duct connector
    Yes
  • Mounting method cover
    Inner lying
  • Useful cross section
    13180 mm²
  • Depth
    83 mm
  • Number of covers
    1
  • Cover width 1
    80 mm
  • Cover width 3
    0 mm
  • Construction type rectangular
    Yes
  • Material quality
    Other
  • Surface protection
    Continuously galvanized
  • Construction rear wall (inner side)
    With cam clamps
  • Number of plug-in partitions
    1
  • Bottom perforation
    Yes
  • With cable fixing clip
    No

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Paleta
Quantità 2 pezzi 48 pezzi
Peso (kg) 16,680 400,320
Larghezza (m) 0,180 0,800
Lunghezza (m) 0,240 1,640
Profondità (m) 2,040 2,040
