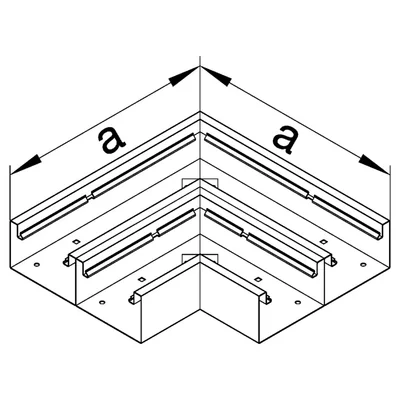

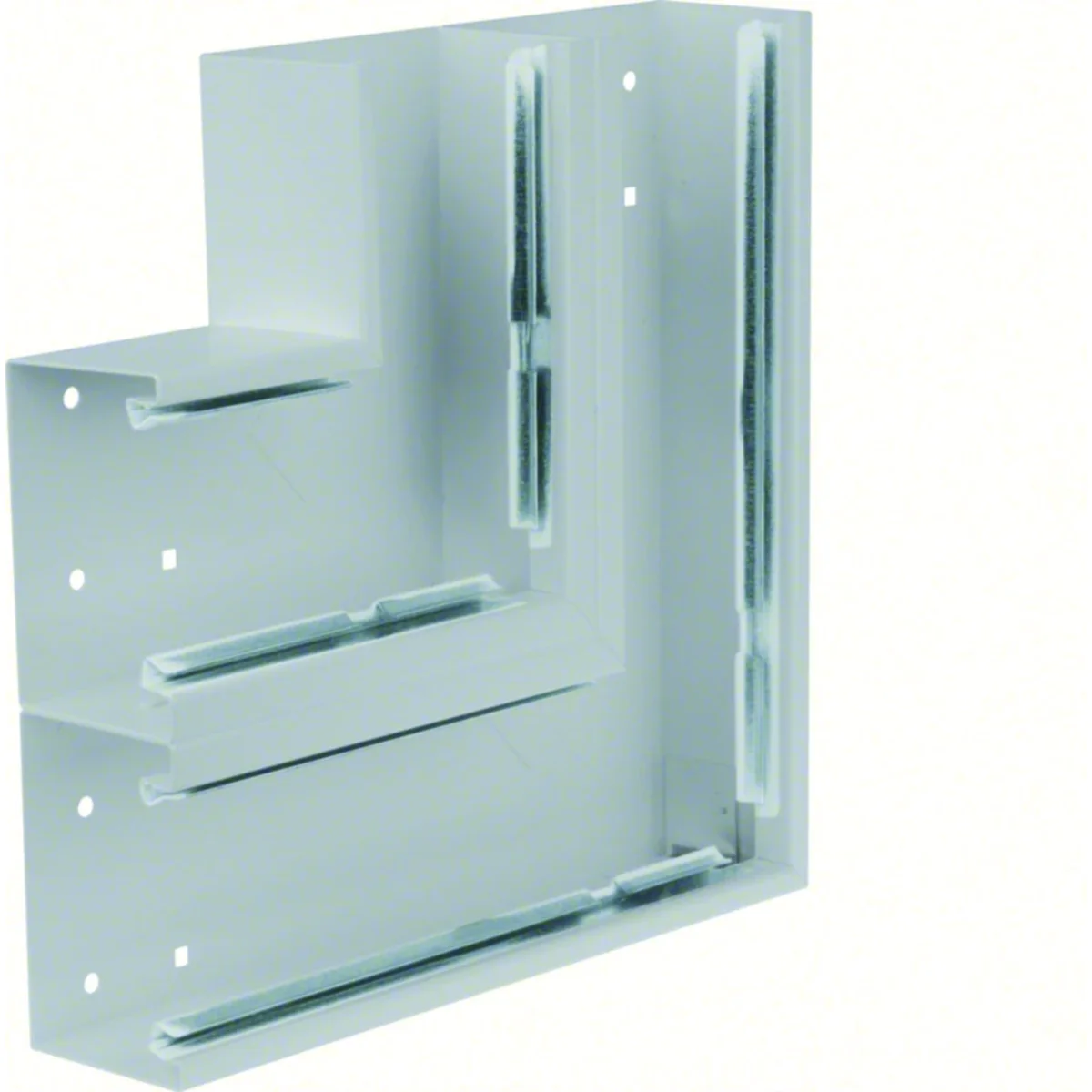

Name: TEHALIT.BRS Flat angle 66x210, two-chamber galvanized steel
Brand: TEHALIT
SKU: TAK0P1TEHA
Price: 172.91 PLN

Two-chamber flat angle from the tehalite.BRS series.

Series characteristics:

Today's work environment needs simple and functional design. This applies not only to everyday office work, but also to interior design. Less curves, less edges, less decorations, more functions - this is an increasingly noticeable trend in design. The tehalit.BRS under-sill channel system, made of steel sheet, meets these requirements thanks to its simple and functional form. Thanks to a wide range of products, quick assembly, flexible installation of devices and simplification of the way of working - tehalit.BRS is a perfect solution for commercial facilities.

Halogen free

Yes
Material

Galvanized steel sheet
Width [mm]

210
Height [mm]

66
Accurate color

galvanized
Configuration of add-ons

Base
PKWIU

25.99.29.0

Color

Silver
Family

TEHALIT.BRS

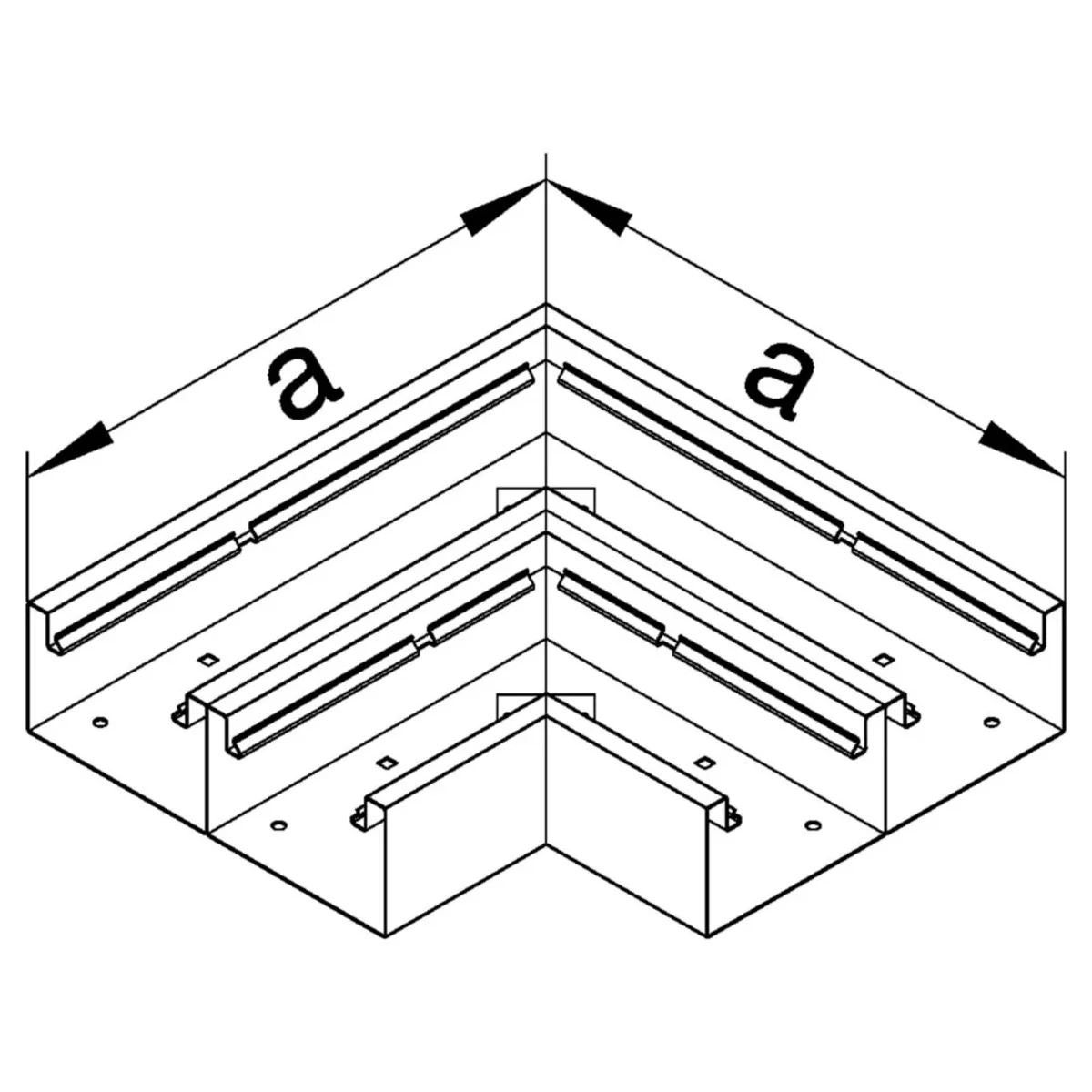

Dimension A [mm]

290
Surface finish

Galvanized
Protective film

NO
Cut joint cover

Yes

Other technical data

Width

210 mm
Number of covers

2
Cover width 2

80 mm
Direction

Rising/descending
Model

Base unit
Material

Steel
Halogen free

Yes
Colour

Other
With duct connector

No
Mounting method cover

Inner lying

Depth

68 mm
Cover width 1

80 mm
Cover width 3

0 mm
Symmetric

Yes
Angle

90 ... 90 °
Material quality

Other
Surface protection

Continuously galvanized
With protective foil

No
Bottom perforation

Yes
With cable fixing clip

No

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	6 pcs.	72 pcs.
Weight (kg)	1,800	1,936	12,162	179,428
Width (m)	0,290	0,290	0,380	0,800
Length (m)	0,065	0,070	0,440	0,880
Depth (m)	0,290	0,290	0,380	1,200
