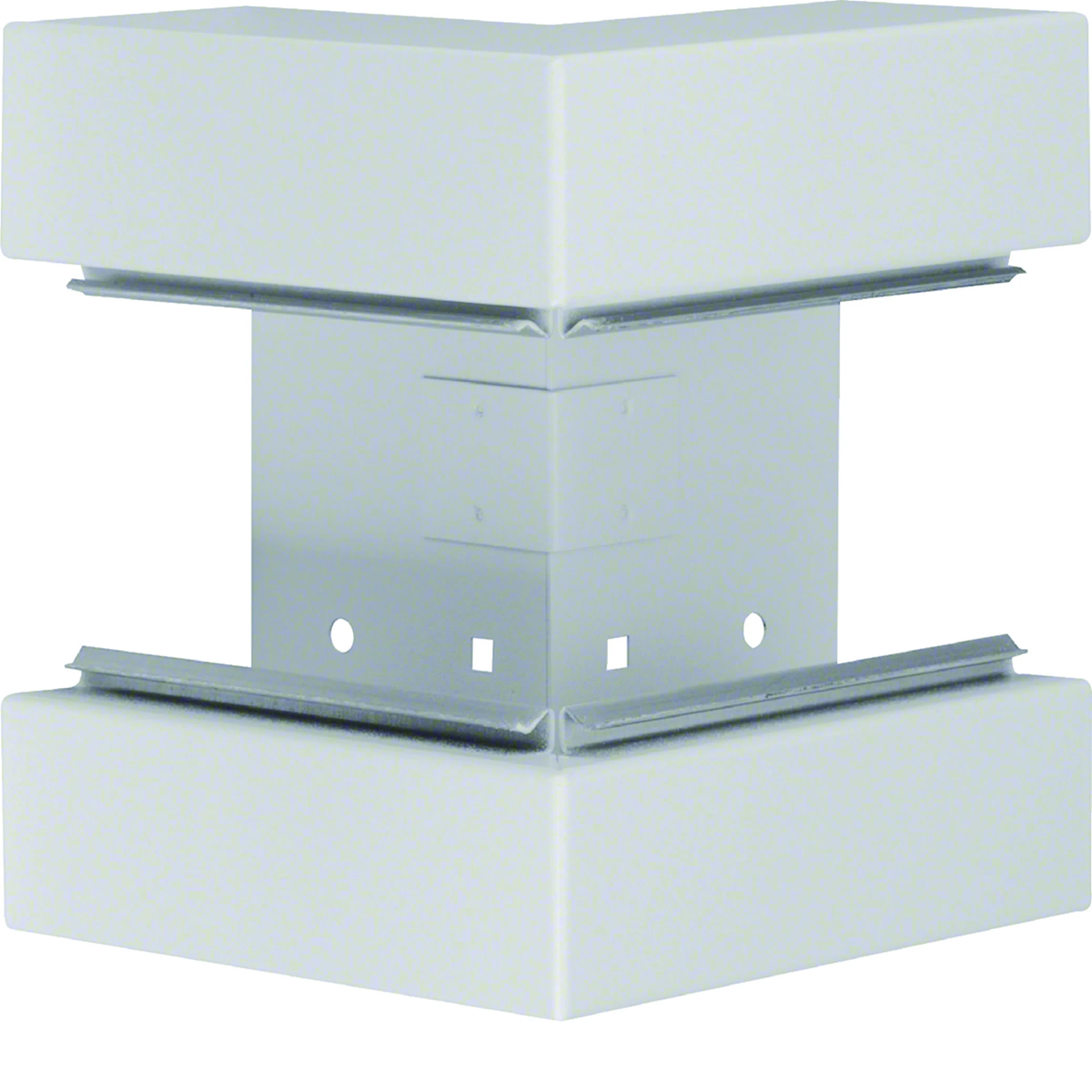

TEHALIT.BRS External corner 66x170 steel light grey BRS6517037035

local index:
TAK356TEHA
Catalog No:
BRS6517037035
EAN code:
4012740217026
Manufacturer: TEHALIT
Halogen free: Yes
Color: Gray
Material: Galvanized steel sheet
Price:
111,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

External angle from the tehalite.BRS series.

Series characteristics:

Today's the working environment needs a simple and functional design. This applies not only to everyday office work, but also to interior design. Less curves, less edges, less decorations, more functions - this is an increasingly noticeable trend in design. The tehalit.BRS under-sill channel system, made of steel sheet, meets these requirements thanks to its simple and functional form. Thanks to a wide range of products, quick assembly, flexible installation of devices and simplification of the way of working - tehalit.BRS is a perfect solution for commercial facilities.

Technical data

  • Halogen free
    Yes
  • Material
    Galvanized steel sheet
  • Width [mm]
    170
  • Height [mm]
    66
  • Accurate color
    light gray
  • Configuration of add-ons
    Base
  • Cut joint cover
    Yes
  • Color
    Gray
  • Family
    TEHALIT.BRS

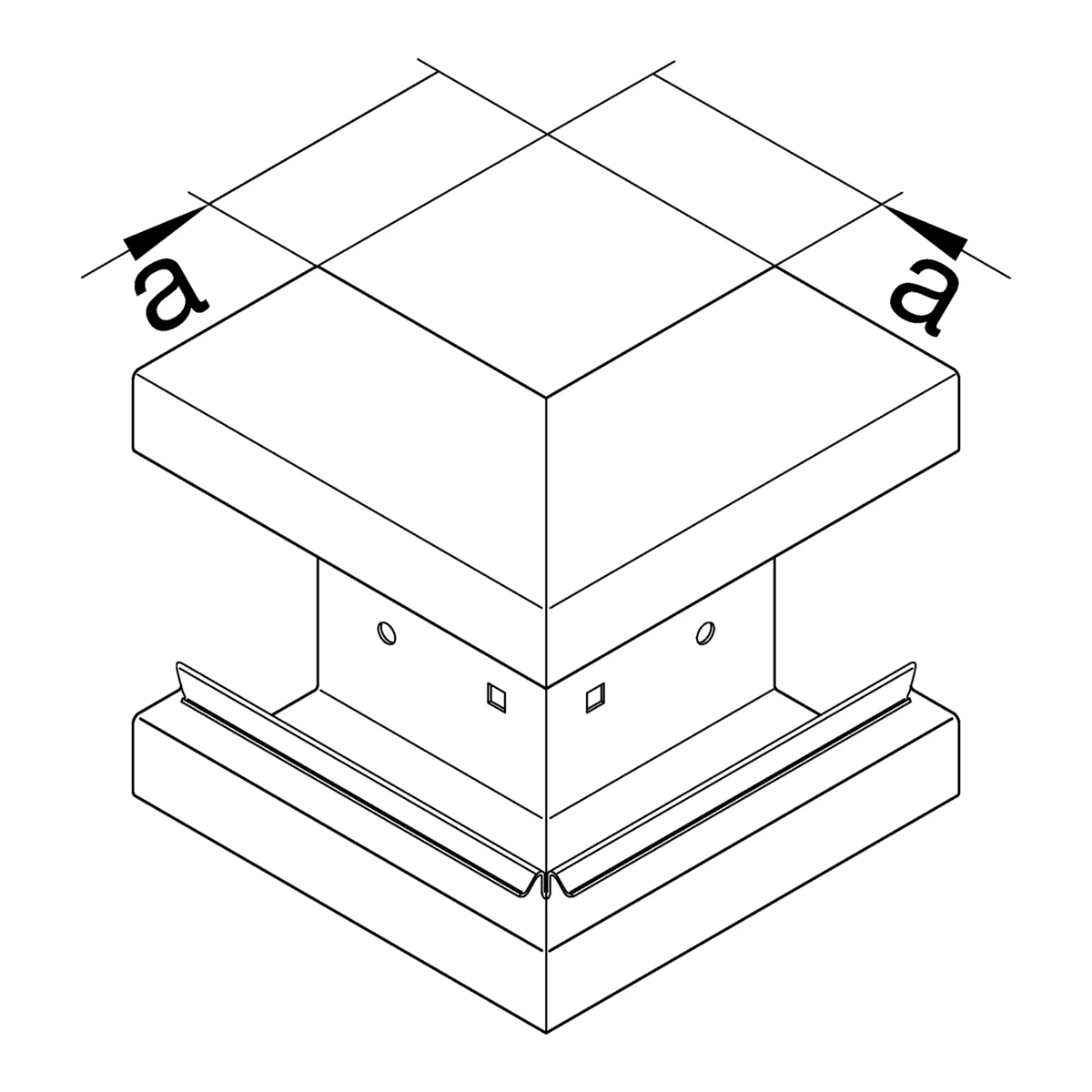

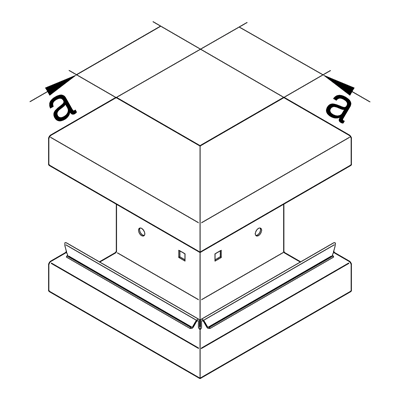

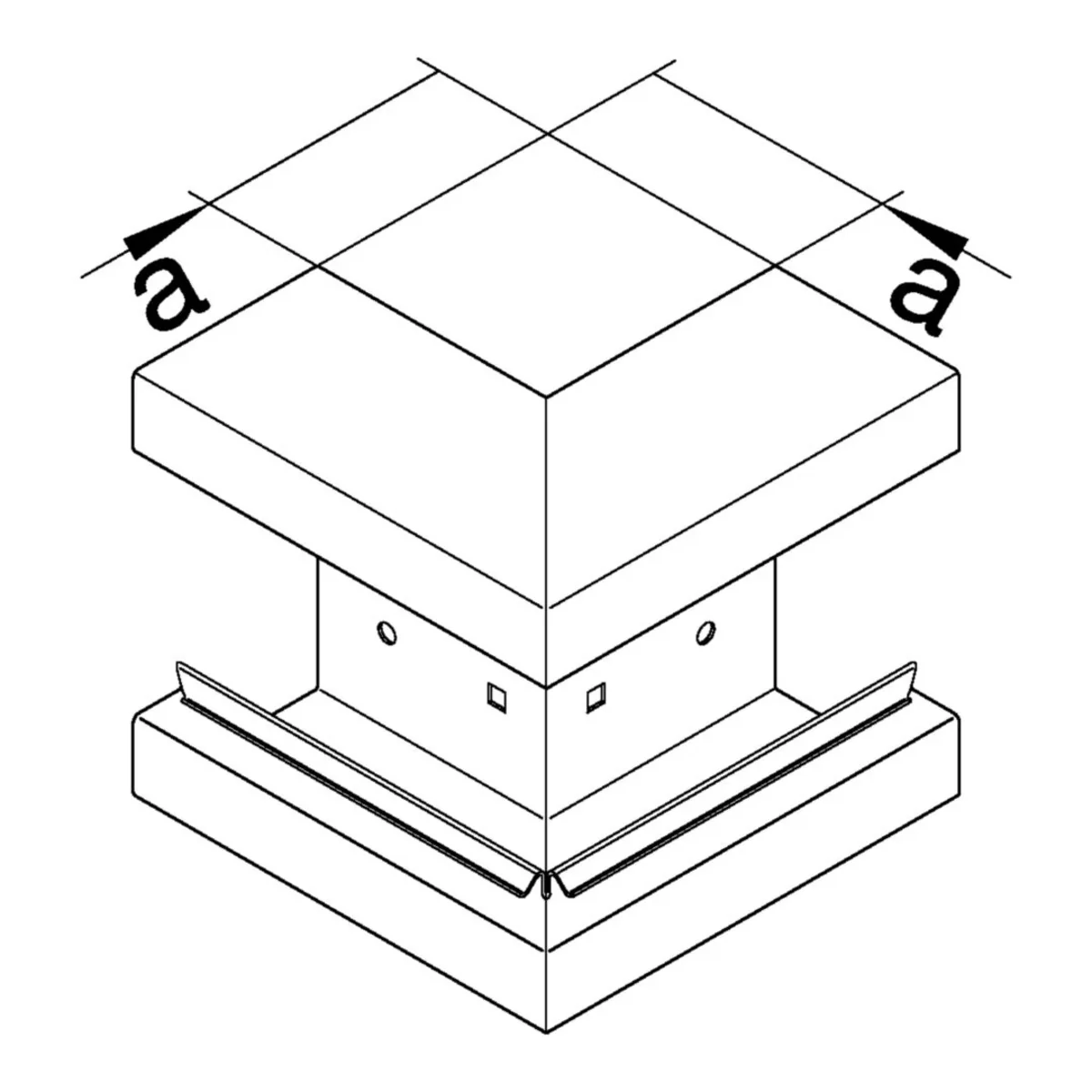

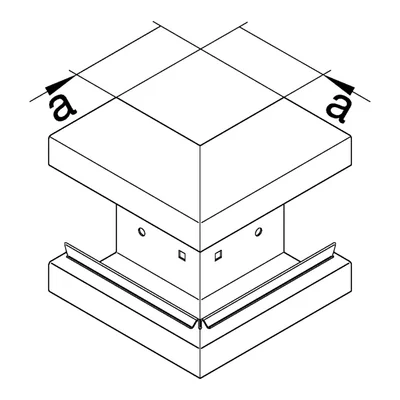

  • Dimension A [mm]
    80
  • Surface finish
    Powder coated
  • Protective film
    NO
  • Number of covers that can be fitted
    1
  • PKWIU
    25.99.29.0

Other technical data

  • Width
    170 mm
  • Number of covers
    1
  • Cover width 2
    0 mm
  • Symmetric
    Yes
  • Angle
    90 ... 90 °
  • Material quality
    Other
  • Surface protection
    Coated
  • With protective foil
    No
  • Bottom perforation
    Yes
  • With cable fixing clip
    No
  • Depth
    68 mm
  • Cover width 1
    80 mm
  • Cover width 3
    0 mm
  • Model
    Base unit
  • Material
    Steel
  • Halogen free
    Yes
  • RAL-number
    7035
  • With duct connector
    No
  • Mounting method cover
    Inner lying

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 6 pcs. 144 pcs.
Weight (kg) 0,781 0,870 5,570 165,309
Width (m) 0,145 0,150 0,380 0,800
Length (m) 0,170 0,150 0,210 1,050
Depth (m) 0,145 0,170 0,380 1,200
