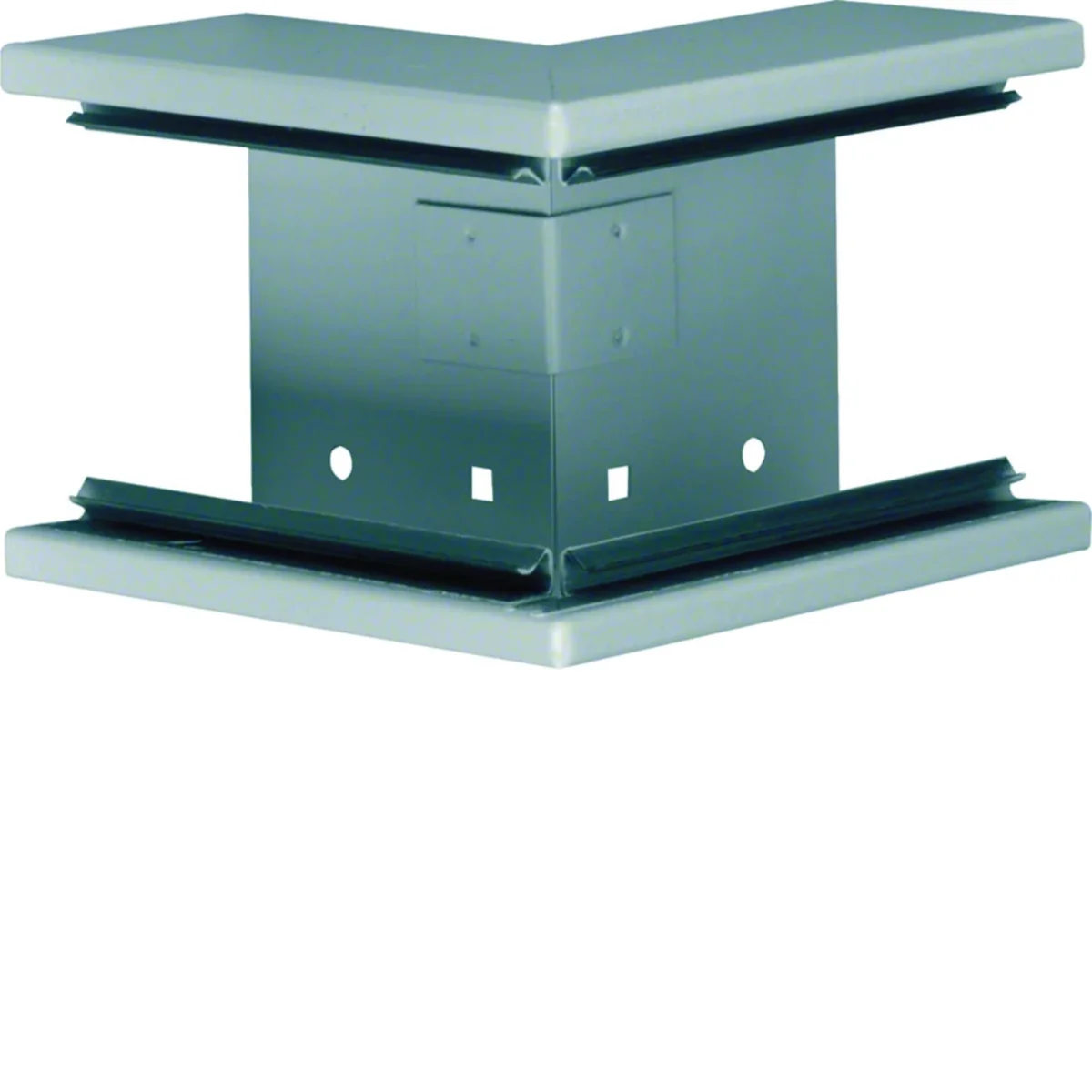

Name: TEHALIT.BRS External angle 66x100 galvanized steel
Brand: TEHALIT
SKU: TAK326TEHA
Price: 87.28 PLN

External angle from the tehalite.BRS series.

Series characteristics:

Today's the working environment needs a simple and functional design. This applies not only to everyday office work, but also to interior design. Less curves, less edges, less decorations, more functions - this is an increasingly noticeable trend in design. The tehalit.BRS under-sill channel system, made of steel sheet, meets these requirements thanks to its simple and functional form. Thanks to a wide range of products, quick assembly, flexible installation of devices and simplification of the way of working - tehalit.BRS is a perfect solution for commercial facilities.

Halogen free

Yes
Material

Galvanized steel sheet
Width [mm]

100
Height [mm]

66
Accurate color

galvanized
Configuration of add-ons

Base
Cut joint cover

Yes

Color

Silver
Family

TEHALIT.BRS

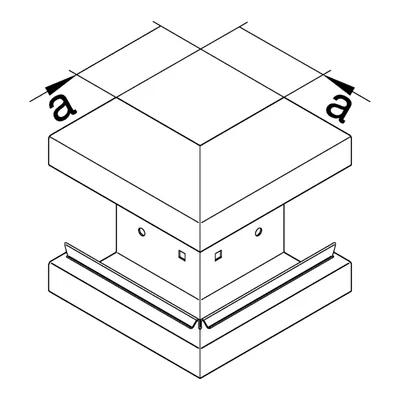

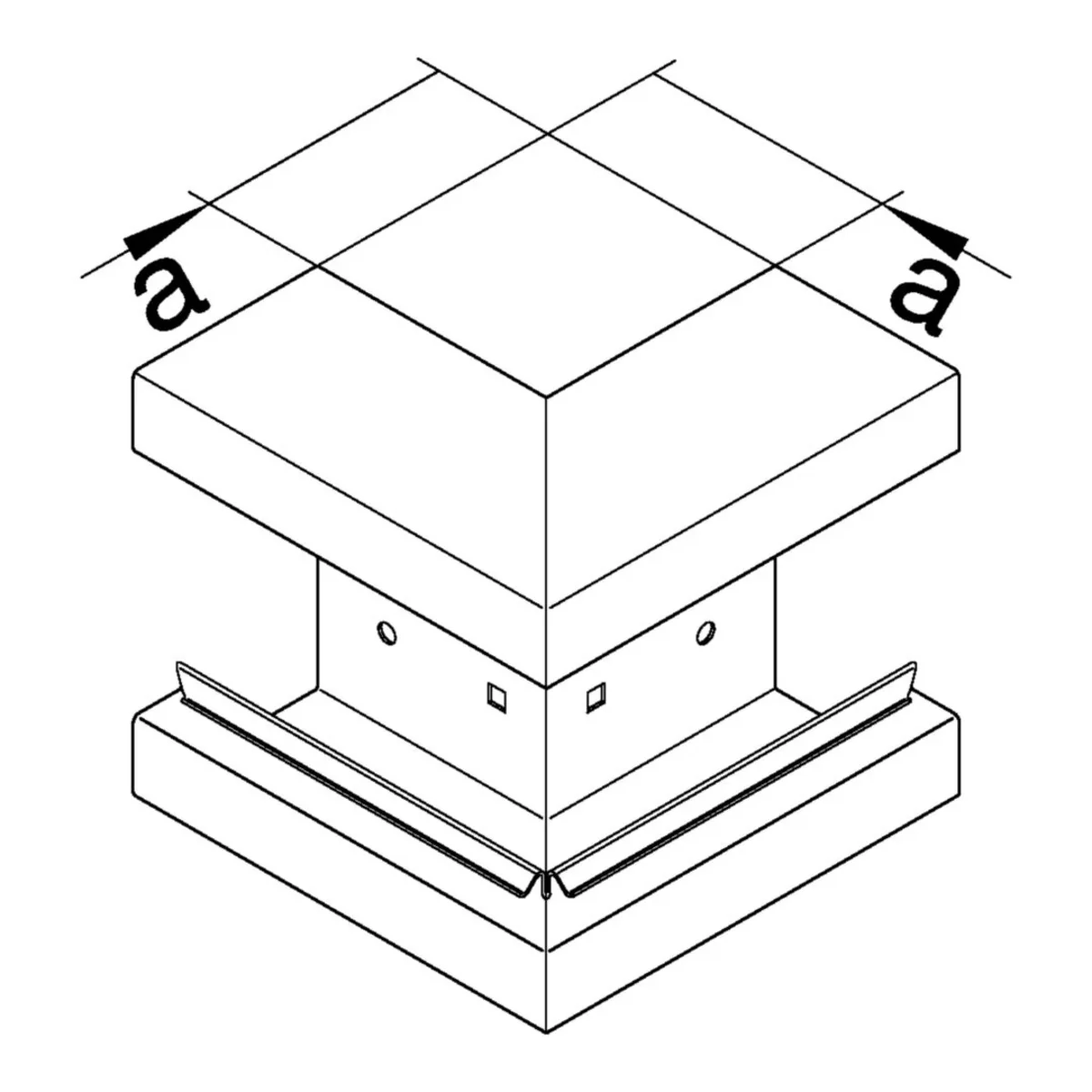

Dimension A [mm]

80
Surface finish

Galvanized
Protective film

Yes
Number of covers that can be fitted

1
PKWIU

25.99.29.0

Other technical data

Width

100 mm
Number of covers

1
Cover width 2

0 mm
Symmetric

Yes
Angle

90 ... 90 °
Material quality

Other
Surface protection

Continuously galvanized
With protective foil

Yes
Bottom perforation

Yes
With cable fixing clip

No

Depth

68 mm
Cover width 1

80 mm
Cover width 3

0 mm
Model

Base unit
Material

Steel
Halogen free

Yes
Colour

Other
With duct connector

No
Mounting method cover

Inner lying

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	4 pcs.	144 pcs.
Weight (kg)	0,557	0,590	2,740	121,640
Width (m)	0,145	0,160	0,310	0,800
Length (m)	0,100	0,120	0,215	1,050
Depth (m)	0,145	0,130	0,360	1,200
