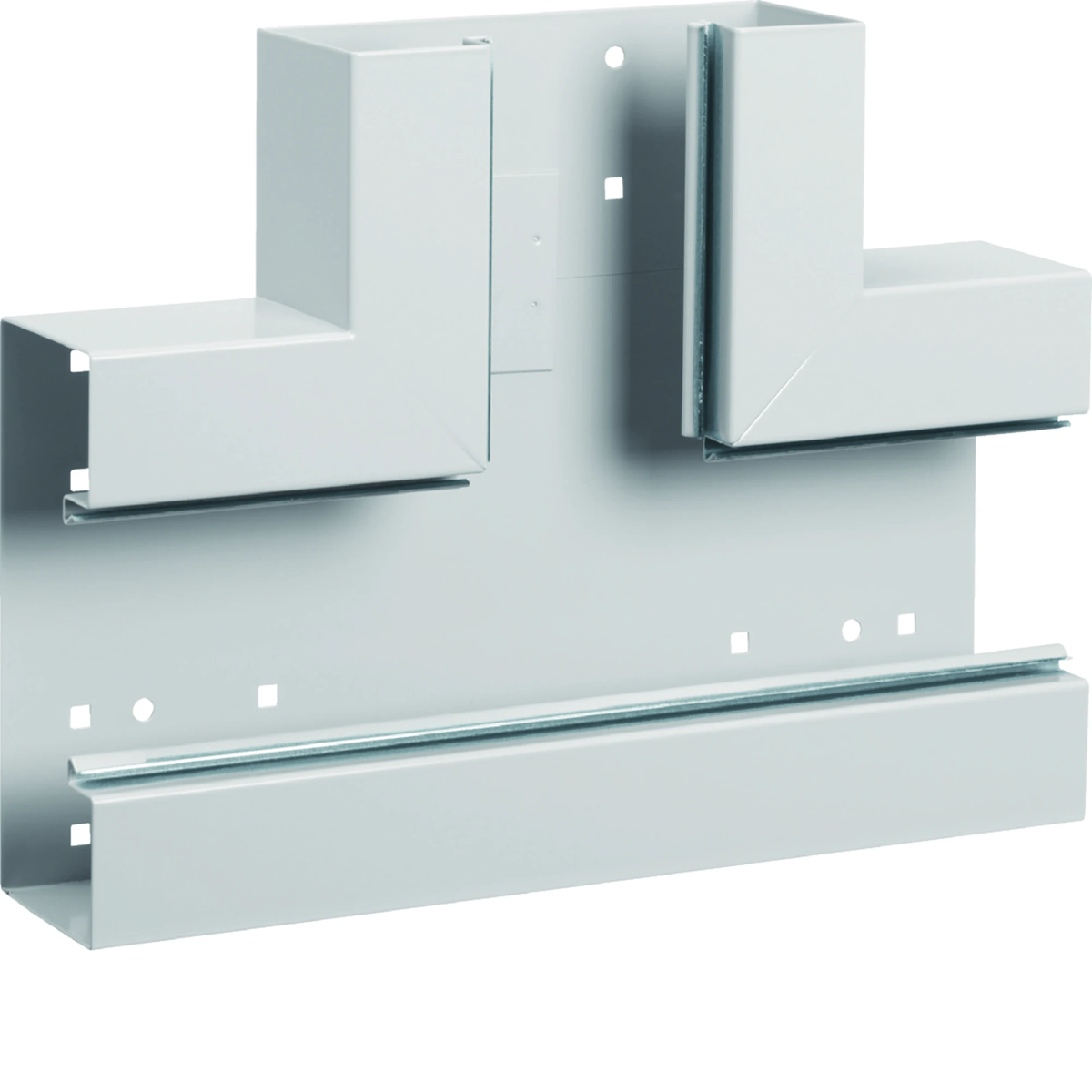

TEHALIT.BRS Element T 66x170 steel light grey BRS6517087035

Index local:
TAK370TEHA
Numéro de catalogue:
BRS6517087035
Code EAN:
4012740875141
Producteur: TEHALIT
Halogen free: Yes
Color: Gray
Material: Galvanized steel sheet
Prix:
570,38 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 4 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Element T from the tehalite.BRS series.

Series characteristics:

Today's the working environment needs a simple and functional design. This applies not only to everyday office work, but also to interior design. Less curves, less edges, less decorations, more functions - this is an increasingly noticeable trend in design. The tehalit.BRS under-sill channel system, made of steel sheet, meets these requirements thanks to its simple and functional form. Thanks to a wide range of products, quick assembly, flexible installation of devices and simplification of the way of working - tehalit.BRS is a perfect solution for commercial facilities.

Données techniques

  • Halogen free
    Yes
  • Material
    Galvanized steel sheet
  • Width [mm]
    170
  • Height [mm]
    66
  • Accurate color
    light gray
  • Number of covers that can be fitted
    1
  • PKWIU
    25.11.23.0
  • Color
    Gray
  • Family
    TEHALIT.BRS

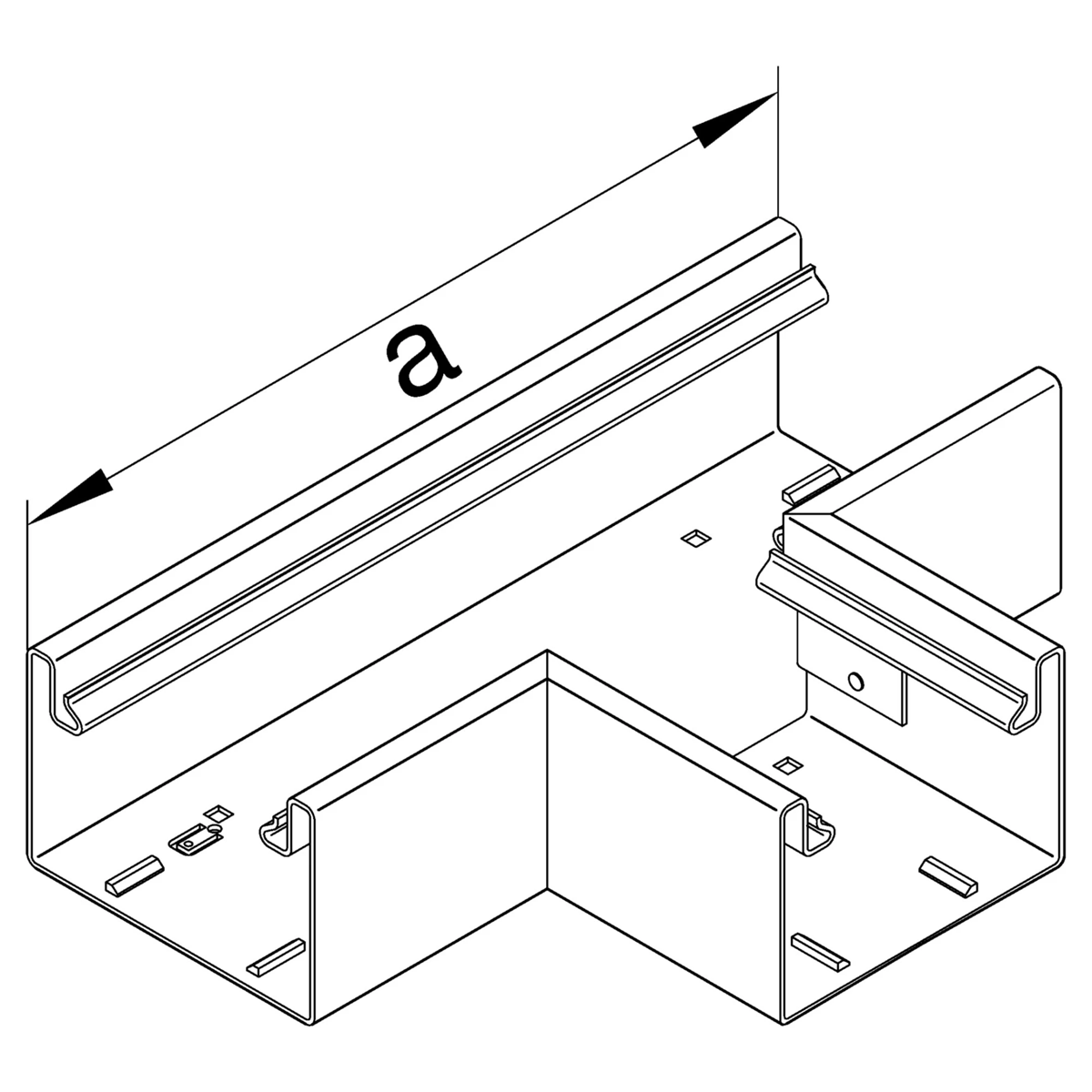

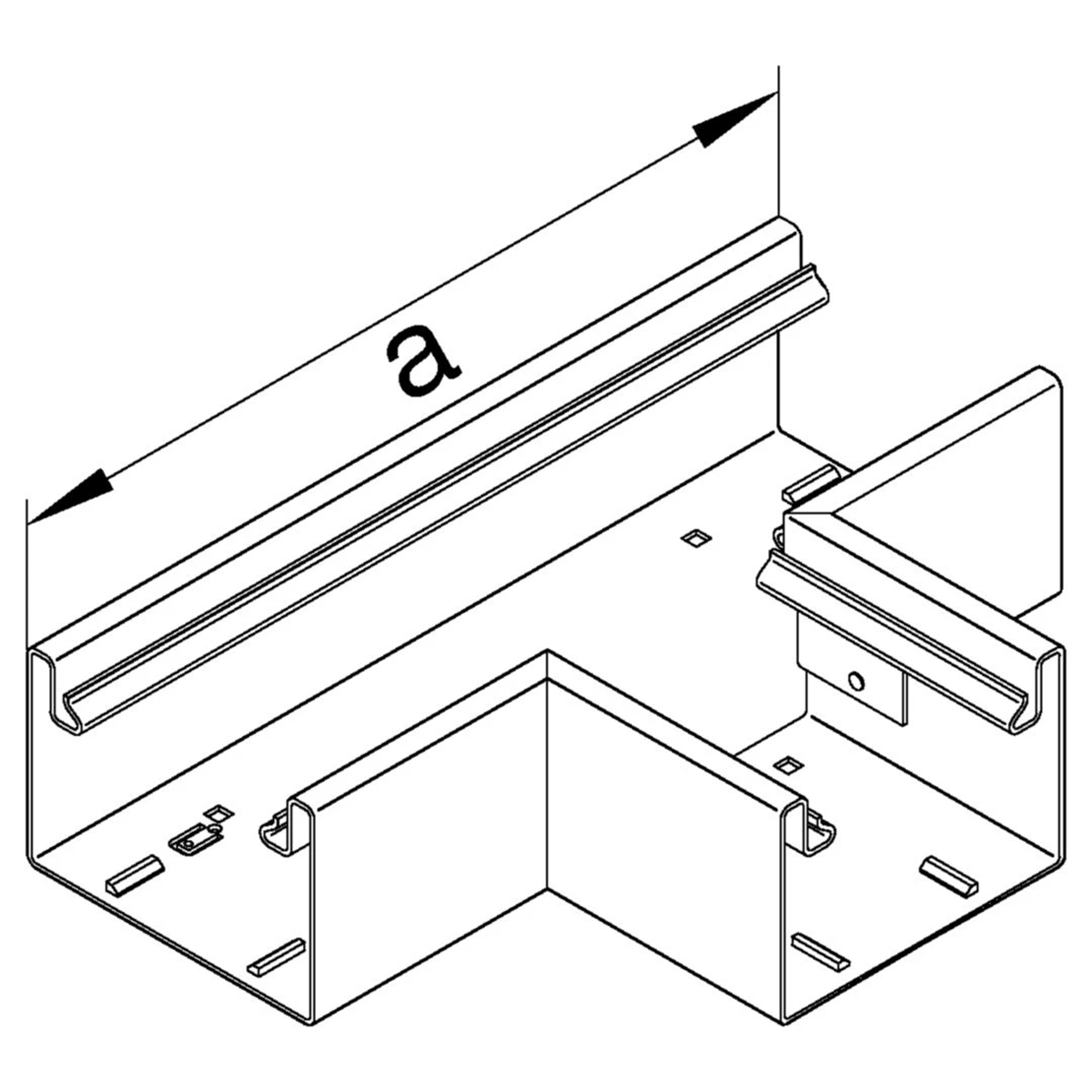

  • Dimension A [mm]
    330
  • Surface finish
    Powder coated
  • Protective film
    Yes
  • Cut joint cover
    NO

Autres données techniques

  • Width
    170 mm
  • Width branch
    170 mm
  • Cover width 1
    80 mm
  • Cover width 3
    0 mm
  • Model
    Moulded hood
  • Material quality
    Other
  • Surface protection
    Coated
  • With protective foil
    Yes
  • Bottom perforation
    No
  • With cable fixing clip
    No
  • Depth
    68 mm
  • Number of covers
    1
  • Cover width 2
    0 mm
  • Symmetric
    Yes
  • Material
    Steel
  • Halogen free
    Yes
  • RAL-number
    7035
  • With duct connector
    No
  • Mounting method cover
    Inner lying

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Pakiet Paleta Karton Pakiet Paleta
Quantité 1 pcs. 4 pcs. 96 pcs. 1 pcs. 4 pcs. 96 pcs.
poids (kg) 1,430 5,720 137,490 1,430 5,720 137,490
Largeur (m) 0,250 0,380 0,800 0,250 0,380 0,800
Longueur (m) 0,070 0,210 1,050 0,070 0,210 1,050
Profondeur (m) 0,330 0,380 1,200 0,330 0,380 1,200
