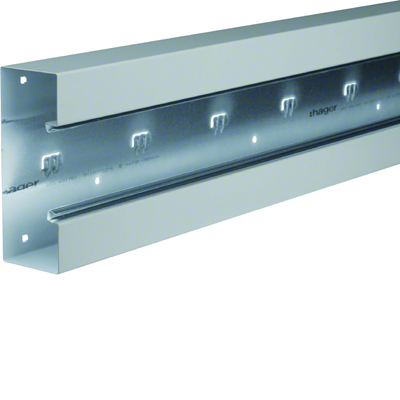

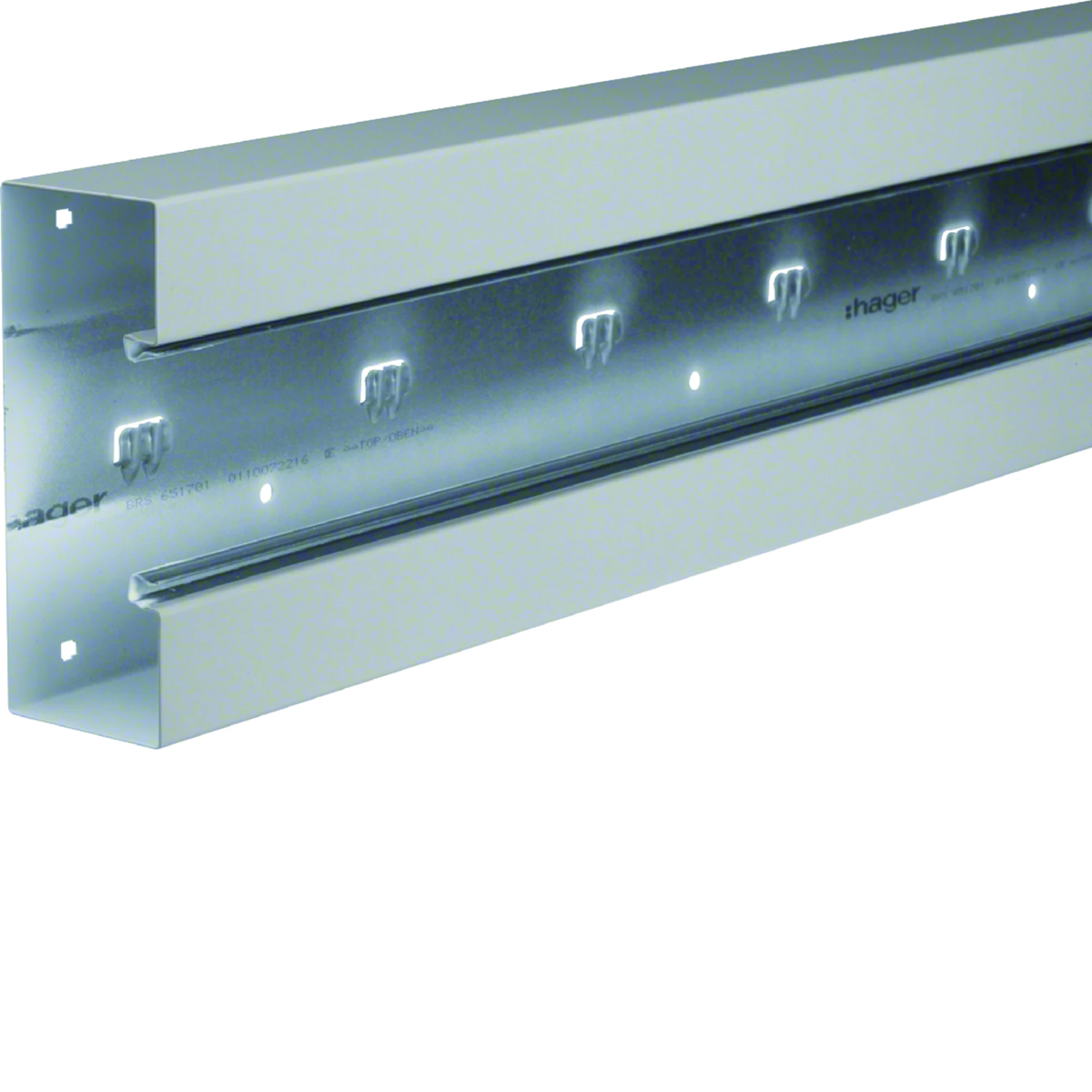

Name: TEHALIT.BRS 170mm galvanized steel base
Brand: TEHALIT
SKU: TKM312TEHA
Price: 86.43 PLN

Base from the tehalite.BRS series.

Series characteristics:

Today's environment work needs a simple and functional design. This applies not only to everyday office work, but also to interior design. Less curves, less edges, less decorations, more functions - this is an increasingly noticeable trend in design. The tehalit.BRS under-sill channel system, made of steel sheet, meets these requirements thanks to its simple and functional form. Thanks to a wide range of products, quick assembly, flexible installation of devices and simplification of the way of working - tehalit.BRS is a perfect solution for commercial facilities.

Halogen free

Yes
Number of compartments

1
Material

Galvanized steel sheet
Family

TEHALIT.BRS
Cover width [mm]

80
Surface finish

Galvanized
Usable cross-section [mm²]

10240
Protective film

Yes
PKWIU

25.99.29.0

Length [mm]

2000
Color

Silver
Compatible product

Standard 60mm, 45mm, CEE, KNX, MCB
Width [mm]

170
Height [mm]

66
Accurate color

galvanized
Number of chambers

1 to 2
Number of covers that can be fitted

1

Other technical data

Width

170 mm
Length

2000 mm
Covers supplied with the product

No
Cover width 2

0 mm
Symmetric

Yes
Material

Steel
Halogen free

Yes
Colour

Other
With protective foil

Yes
With duct connector

Yes
Mounting method cover

Inner lying
Useful cross section

10240 mm²

Depth

68 mm
Number of covers

1
Cover width 1

80 mm
Cover width 3

0 mm
Construction type rectangular

Yes
Material quality

Other
Surface protection

Continuously galvanized
Construction rear wall (inner side)

With cam clamps
Number of plug-in partitions

1
Bottom perforation

Yes
With cable fixing clip

No

A kind of package		Karton	Paleta
Quantity	1 pcs.	4 pcs.	72 pcs.
Weight (kg)	3,500	30,960	597,280
Width (m)	0,170	0,260	0,800
Length (m)	0,065	0,240	1,640
Depth (m)	1,000	2,045	2,045
