TEHALIT.BRS 100mm galvanized steel base BRS651001VERZ

local index:
TKM300TEHA
Catalog No:
BRS651001VERZ
EAN code:
4012740215664
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 2000
Number of compartments: 1
Large-size product
Price:
73,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

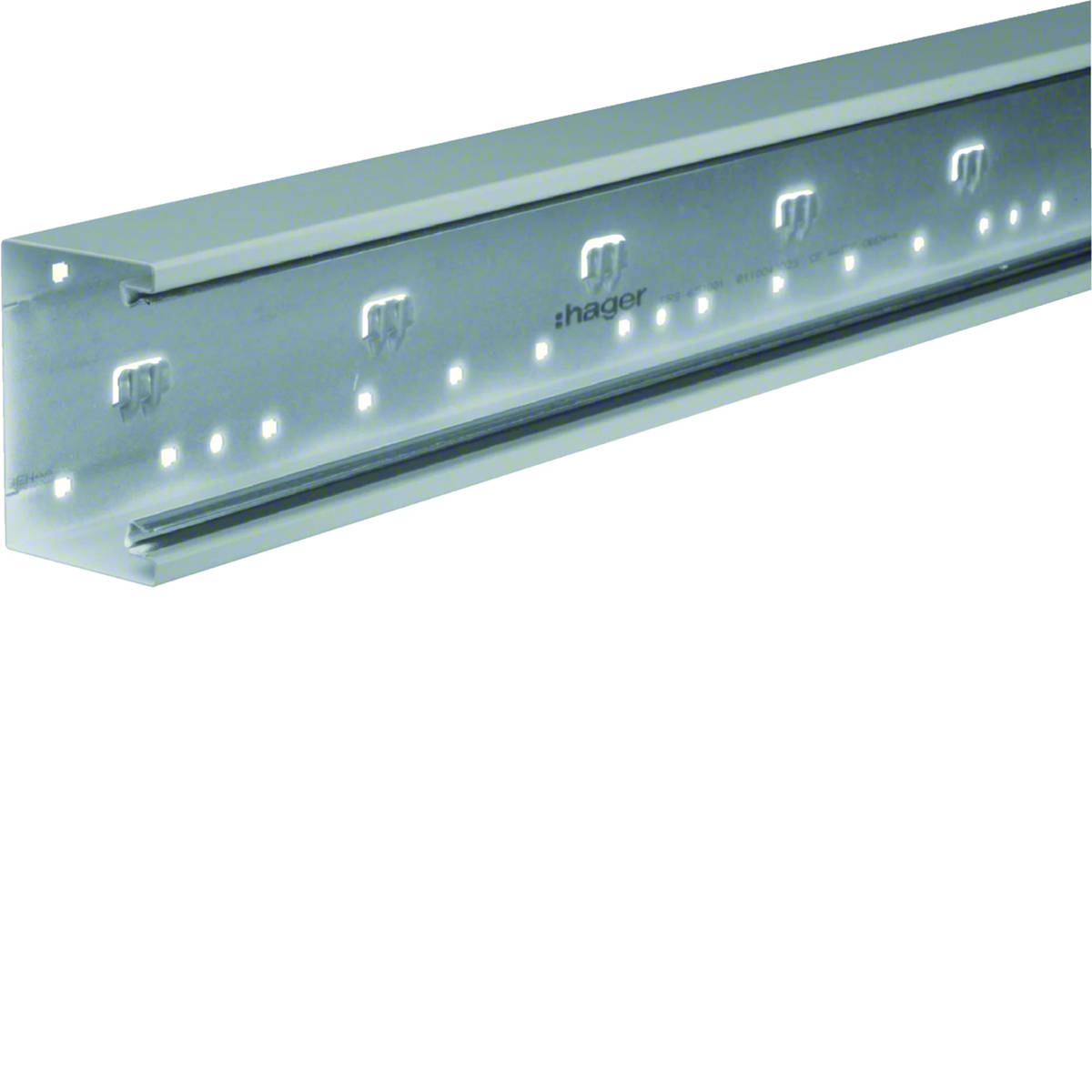

Base from the tehalite.BRS series.

Series characteristics:

Today's environment work needs a simple and functional design. This applies not only to everyday office work, but also to interior design. Less curves, less edges, less decorations, more functions - this is an increasingly noticeable trend in design. The tehalit.BRS under-sill channel system, made of steel sheet, meets these requirements thanks to its simple and functional form. Thanks to a wide range of products, quick assembly, flexible installation of devices and simplification of the way of working - tehalit.BRS is a perfect solution for commercial facilities.

Technical data

  • Halogen free
    Yes
  • Number of compartments
    1
  • Material
    Galvanized steel sheet
  • Family
    TEHALIT.BRS
  • Cover width [mm]
    80
  • Surface finish
    Galvanized
  • Usable cross-section [mm²]
    5790
  • Protective film
    Yes
  • PKWIU
    25.99.29.0
  • Length [mm]
    2000
  • Color
    Silver
  • Compatible product
    Standard 60mm, 45mm, CEE, KNX, MCB
  • Width [mm]
    100
  • Height [mm]
    66
  • Accurate color
    galvanized
  • Number of chambers
    1 to 2
  • Number of covers that can be fitted
    1

Other technical data

  • Width
    100 mm
  • Length
    2000 mm
  • Covers supplied with the product
    No
  • Cover width 2
    0 mm
  • Symmetric
    Yes
  • Material
    Steel
  • Halogen free
    Yes
  • Colour
    Other
  • With protective foil
    Yes
  • With duct connector
    Yes
  • Mounting method cover
    Inner lying
  • Useful cross section
    5790 mm²
  • Depth
    68 mm
  • Number of covers
    1
  • Cover width 1
    80 mm
  • Cover width 3
    0 mm
  • Construction type rectangular
    Yes
  • Material quality
    Other
  • Surface protection
    Continuously galvanized
  • Construction rear wall (inner side)
    With cam clamps
  • Number of plug-in partitions
    1
  • Bottom perforation
    Yes
  • With cable fixing clip
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 4 pcs. 144 pcs.
Weight (kg) 2,418 20,570 780,520
Width (m) 0,100 0,260 0,800
Length (m) 0,065 0,080 1,560
Depth (m) 1,000 2,045 2,045
