TEHALIT.BRP/BRAP Internal angle 65x100 painted aluminium BRP651004HLAN

Name: TEHALIT.BRP/BRAP Internal angle 65x100 painted aluminium
Brand: TEHALIT
SKU: TAK269TEHA
Price: 18.52 PLN

local index:

TAK269TEHA

Catalog No:

BRP651004HLAN

EAN code:

4012740222754

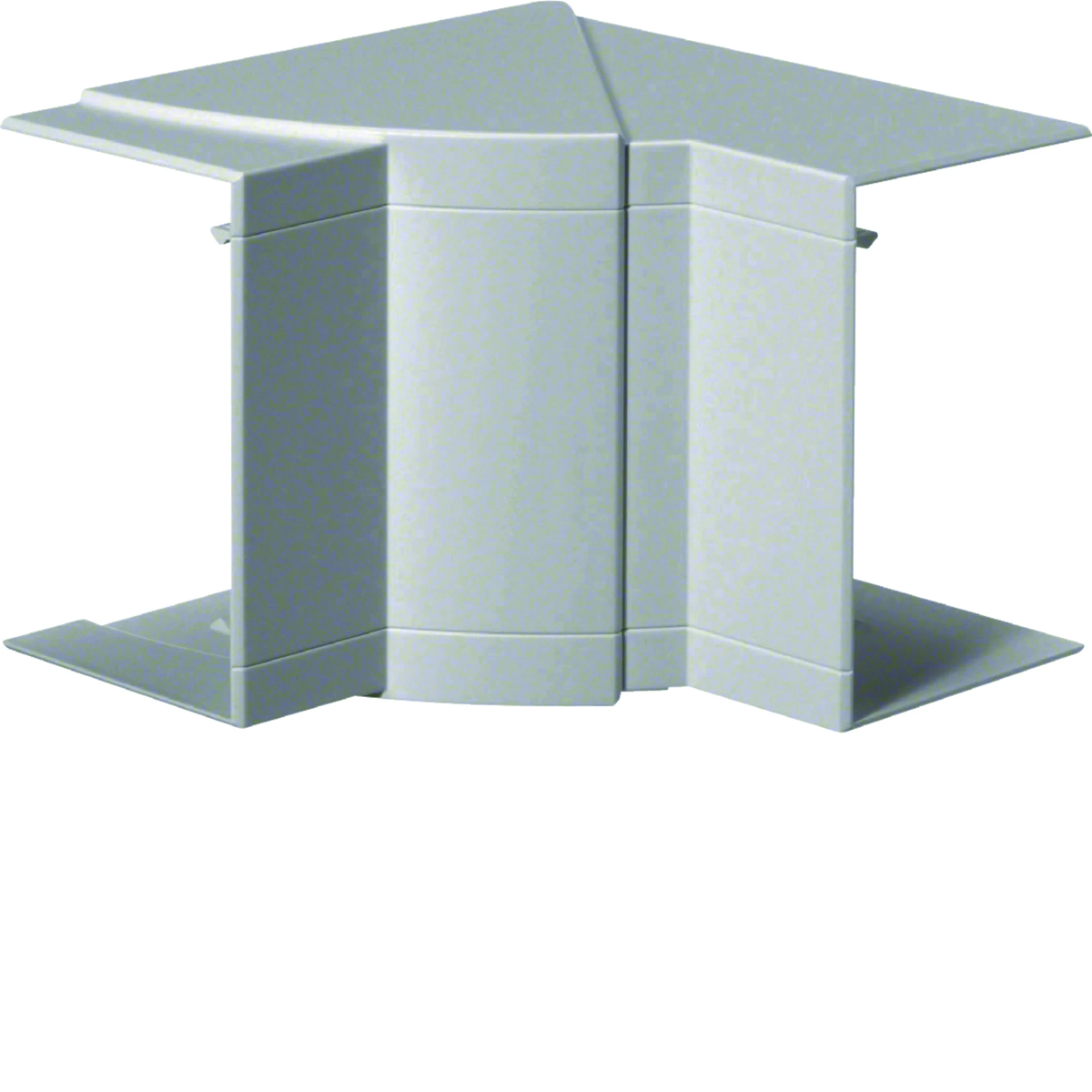

TEHALIT.BRP/BRAP Internal angle 65x100 painted aluminium

Click on the photo to enlarge

Manufacturer: TEHALIT

Halogen free: Yes

Length [mm]: 135

Color: Silver

See full description

Price:

18,52 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Internal angle from the tehalit.BRP/BRAP series:

protection degree: IP40,

Characteristics of the series:

The main concept behind the creation of the tehalit.BRP system was the need to create a simple, quick and universal profile that allows the installation of any accessories. The result of the hard work of our engineers and the experience gained over the years is a simple, quick-to-install PVC duct. The profile can also be made of aluminum (tehalite.BRAP).

Technical data

Halogen free

Yes
Color

Silver
Fixing

Clamps
Width [mm]

100
Operating temperature range [°C]

from -30 to 90
Accurate color

Aluminum
Cut joint cover

Yes

Length [mm]

135
Material

PC ABS
Family

TEHALIT.BRP/BRAP
Height [mm]

65
Surface finish

Lacquered
Protective film

NO
PKWIU

22.23.19.0

Other technical data

Width

100 mm
Shape

Symmetric
Cover width 1

0 mm
Cover width 3

0 mm

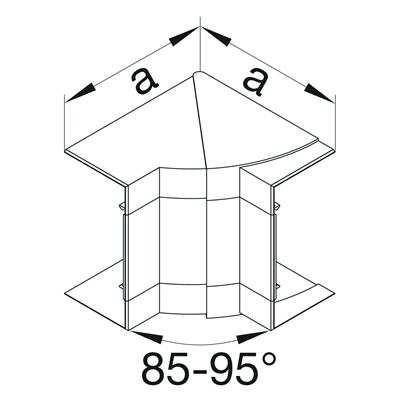

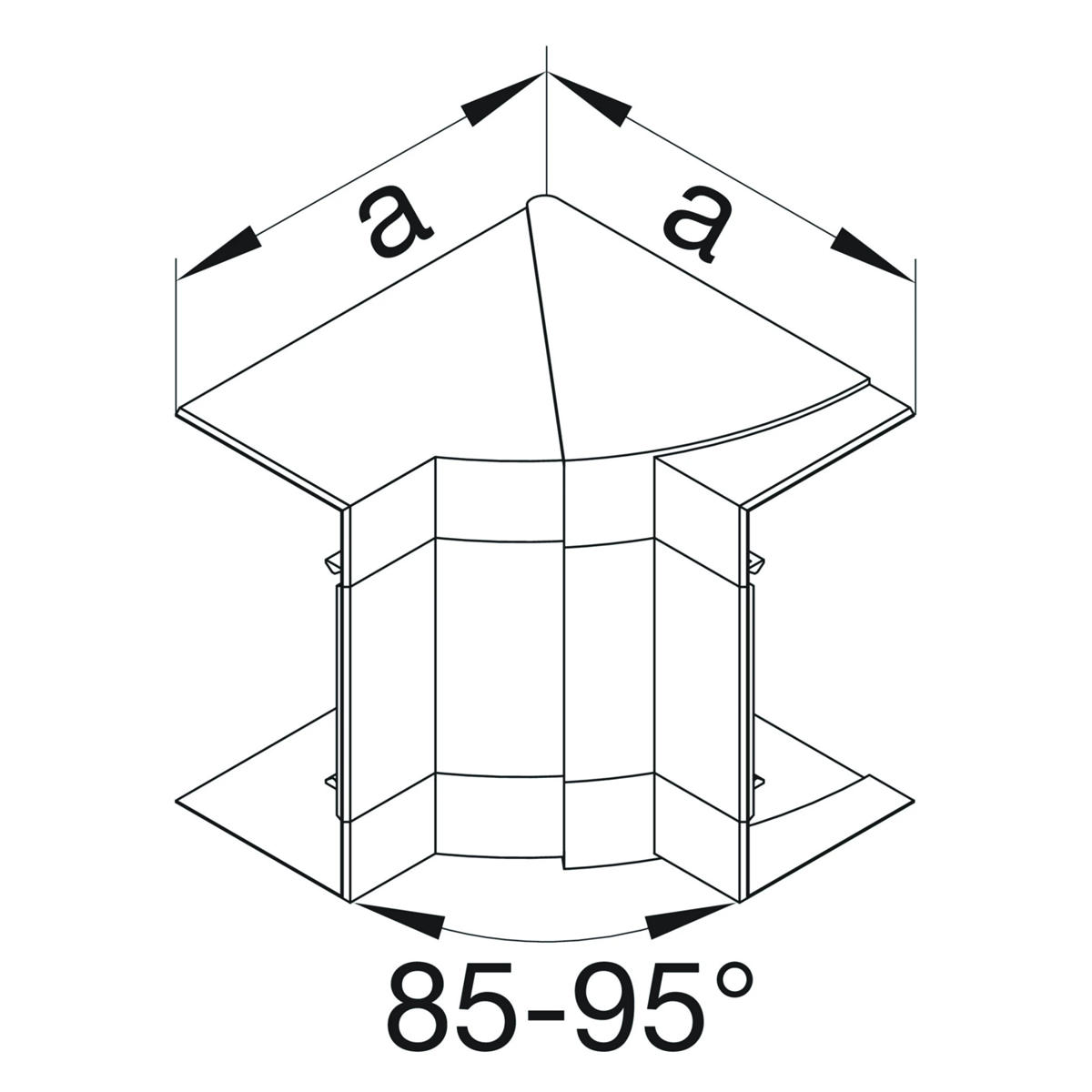

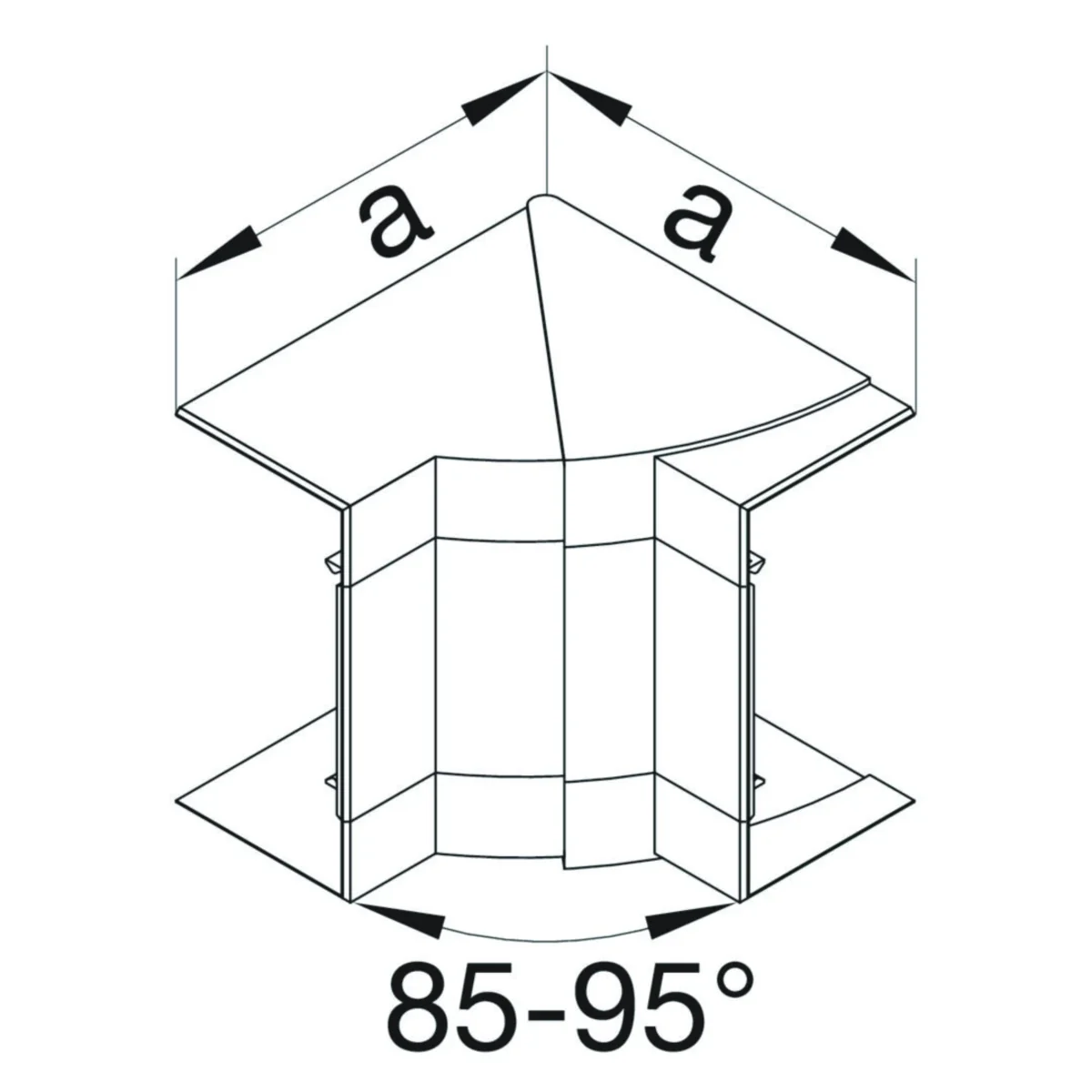

Angle

85 ... 95 °
Material quality

Other
Surface protection

Wet varnished
With protective foil

No
Bottom perforation

No

Depth

65 mm
Number of covers

0
Cover width 2

0 mm
Model

Moulded hood
Material

Plastic
Halogen free

Yes
Colour

Other
With duct connector

No
With cable fixing clip

Yes

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	4 pcs.	288 pcs.
Weight (kg)	0,131	0,156	0,752	79,144
Width (m)	0,141	0,110	0,180	0,800
Length (m)	0,135	0,100	0,210	0,990
Depth (m)	0,135	0,140	0,250	1,200
