TEHALIT.BRP/BRAP Flat angle 65x130 painted aluminium BRP651305HLAN

local index:
TAK802TEHA
Catalog No:
BRP651305HLAN
EAN code:
4012740222884
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 185
Color: Silver
Price:
24,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

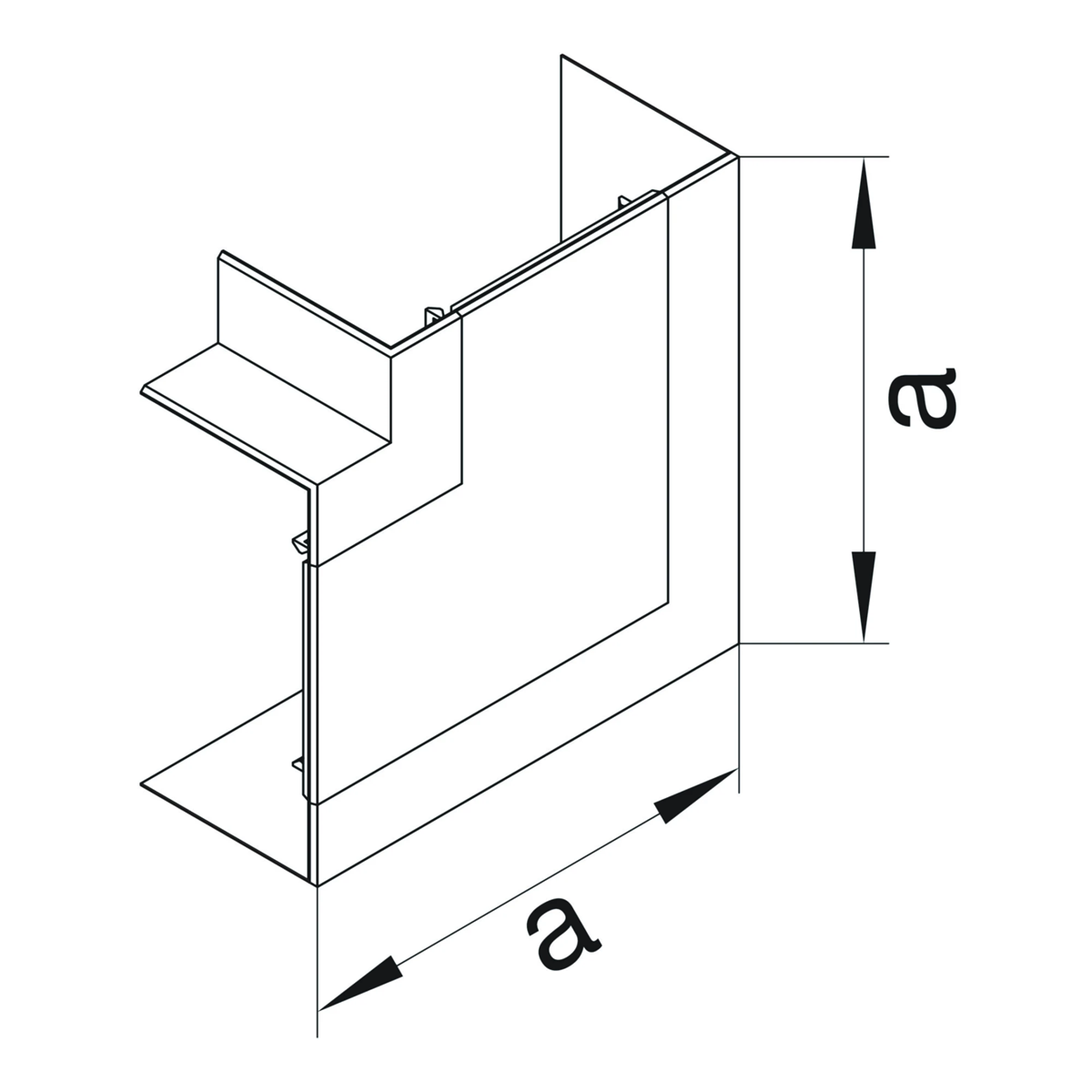

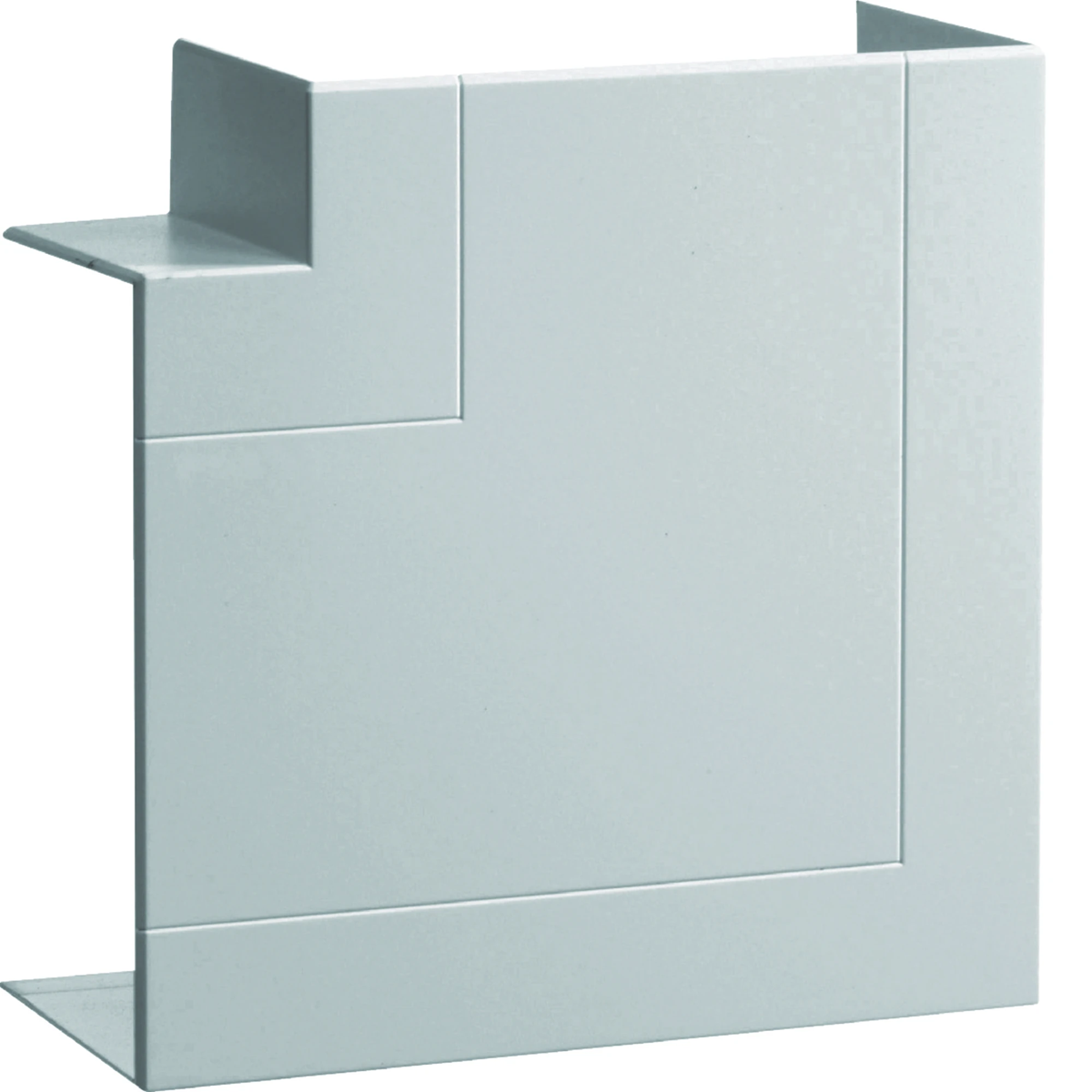

Flat angle from the tehalit.BRP/BRAP series:

  • degree of protection: IP40,

Characteristics of the series:

The main concept behind the creation of the tehalit.BRP system was the need to create a simple, quick and universal profile that allows the installation of any accessories. The result of the hard work of our engineers and the experience gained over the years is a simple, quick-to-install PVC duct. The profile can also be made of aluminum (tehalite.BRAP).

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Fixing
    Clamps
  • Width [mm]
    130
  • Operating temperature range [°C]
    from -30 to 90
  • Accurate color
    Aluminum
  • Cut joint cover
    Yes
  • Length [mm]
    185
  • Material
    PC ABS
  • Family
    TEHALIT.BRP/BRAP
  • Height [mm]
    65
  • Surface finish
    Wet painted
  • Protective film
    NO
  • PKWIU
    22.23.19.0

Other technical data

  • Width
    130 mm
  • Number of covers
    0
  • Cover width 2
    0 mm
  • Direction
    Rising/descending
  • Model
    Moulded hood
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    Other
  • With duct connector
    No
  • Mounting method cover
    Spanned
  • Depth
    65 mm
  • Cover width 1
    0 mm
  • Cover width 3
    0 mm
  • Symmetric
    Yes
  • Angle
    90 ... 90 °
  • Material quality
    Other
  • Surface protection
    Wet varnished
  • With protective foil
    No
  • Bottom perforation
    No
  • With cable fixing clip
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 5 pcs. 360 pcs.
Weight (kg) 0,156 0,157 0,928 91,816
Width (m) 0,131 0,160 0,180 0,800
Length (m) 0,131 0,065 0,210 1,040
Depth (m) 0,145 0,160 0,250 1,200
