TEHALIT.BRP/BRAP External corner 68x170 light grey BRP651703H7035

Name: TEHALIT.BRP/BRAP External corner 68x170 light grey
Brand: TEHALIT
SKU: TAK290TEHA
Price: 48.66 PLN
Availability: BackOrder

Index local:

TAK290TEHA

Numéro de catalogue:

BRP651703H7035

Code EAN:

4012740897846

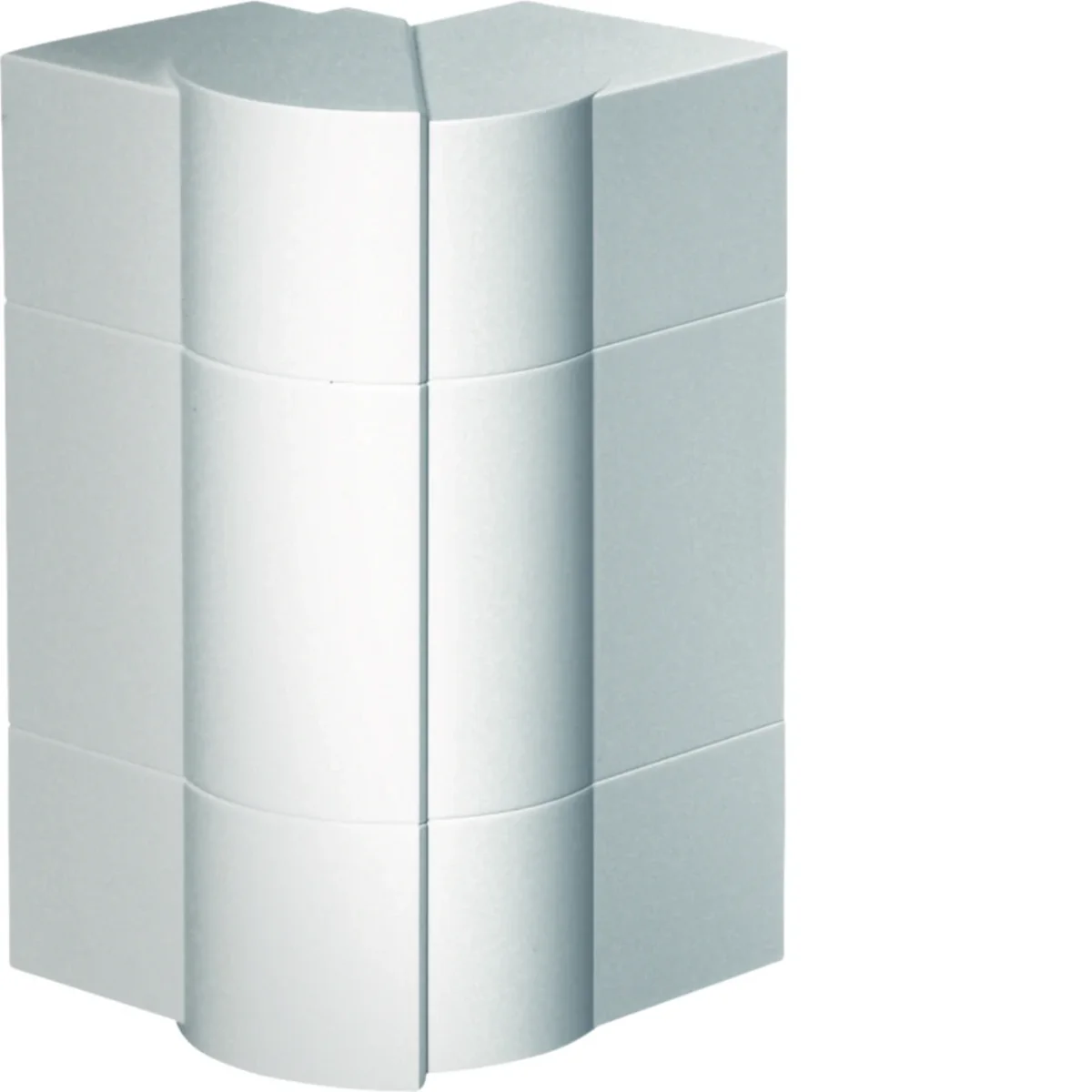

TEHALIT.BRP/BRAP External corner 68x170 light grey

Cliquer sur la photo pour l'agrandir

Producteur: TEHALIT

Halogen free: Yes

Length [mm]: 120

Color: Gray

Voir la description complète

Prix:

48,66 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

External angle from the tehalit.BRP/BRAP series:

degree of protection: IP40,

Characteristics of the series:

The main concept behind the creation of the tehalit.BRP system was the need to create a simple, quick and universal profile that allows the installation of any accessories. The result of the hard work of our engineers and the experience gained over the years is a simple, quick-to-install PVC duct. The profile can also be made of aluminum (tehalite.BRAP).

Données techniques

Halogen free

Yes
Color

Gray
Fixing

Clamps
Width [mm]

170
Operating temperature range [°C]

from -30 to 90
Accurate color

light gray
Number of covers that can be fitted

1
PKWIU

22.23.19.0

Length [mm]

120
Material

PC ABS
Family

TEHALIT.BRP/BRAP
Height [mm]

68
Surface finish

Natural
Protective film

NO
Cut joint cover

Yes

Autres données techniques

Width

170 mm
Number of covers

1
Cover width 2

0 mm
Symmetric

Yes
Angle

85 ... 95 °
Material quality

Other
Anti-bacterial treatment

No
Colour

Grey
With protective foil

No
Bottom perforation

No
With cable fixing clip

No
Impact strength

IK07

Depth

68 mm
Cover width 1

80 mm
Cover width 3

0 mm
Model

Moulded hood
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
RAL-number

7035
With duct connector

No
Mounting method cover

Spanned
Degree of protection (IP)

IP40
Operating temperature

-30 ... 90 °C

Détails du fabricant

Producteur

Tehalit GmbH
Adresse

67716 Heltersberg Seebergstrasse 37 Niemcy
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Pakiet	Paleta
Quantité	1 pcs.	5 pcs.	360 pcs.
poids (kg)	0,136	0,946	99,868
Largeur (m)	0,100	0,180	0,800
Longueur (m)	0,060	0,200	0,820
Profondeur (m)	0,180	0,250	1,200
