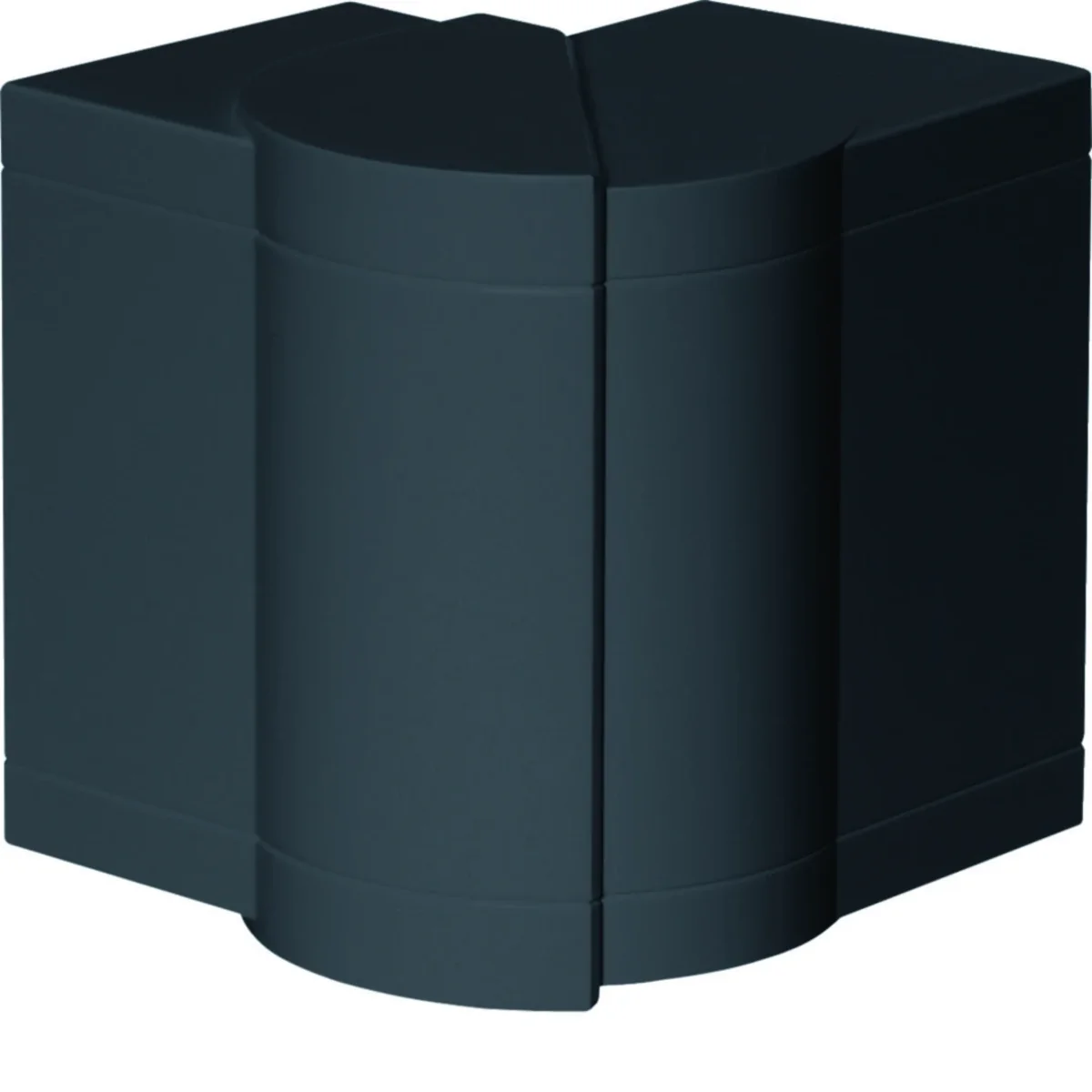

TEHALIT.BRP/BRAP External corner 68x100 black BRP651003H9011

local index:
TAK267TEHA
Catalog No:
BRP651003H9011
EAN code:
4012740856072
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 40
Color: Graphite
Price:
9,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

External angle from the tehalit.BRP/BRAP series:

  • degree of protection: IP40,

Characteristics of the series:

The main concept behind the creation of the tehalit.BRP system was the need to create a simple, quick and universal profile that allows the installation of any accessories. The result of the hard work of our engineers and the experience gained over the years is a simple, quick-to-install PVC duct. The profile can also be made of aluminum (tehalite.BRAP).

Technical data

  • Halogen free
    Yes
  • Color
    Graphite
  • Fixing
    Clamps
  • Width [mm]
    100
  • Operating temperature range [°C]
    from -30 to 90
  • Protective film
    NO
  • Cut joint cover
    Yes
  • Length [mm]
    40
  • Material
    PC ABS
  • Family
    TEHALIT.BRP/BRAP
  • Height [mm]
    68
  • Surface finish
    Natural
  • Number of covers that can be fitted
    1
  • PKWIU
    27.33.14.0

Other technical data

  • Width
    100 mm
  • Number of covers
    1
  • Cover width 2
    0 mm
  • Symmetric
    Yes

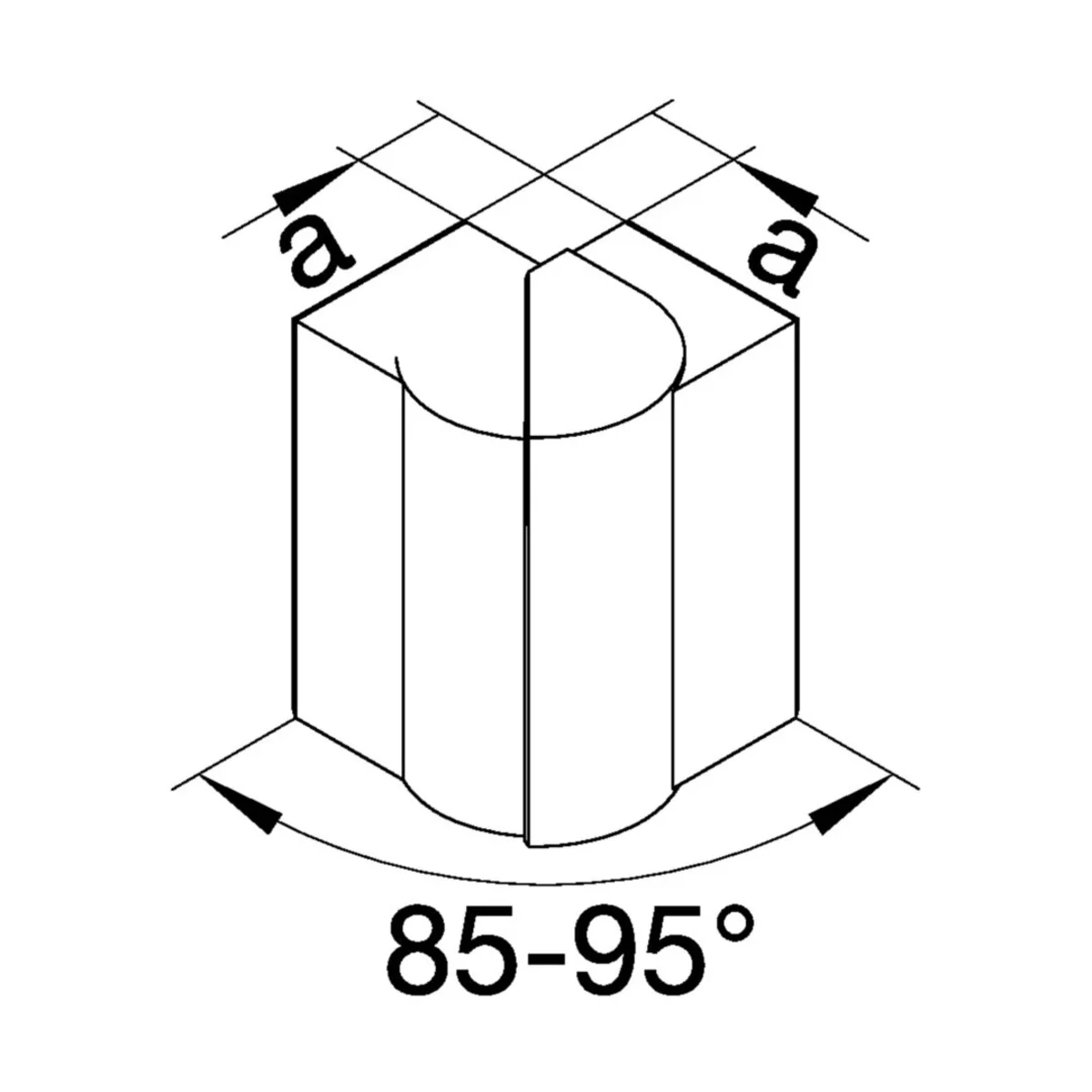

  • Angle
    85 ... 95 °
  • Material quality
    Other
  • Surface protection
    Untreated
  • RAL-number
    9011
  • With duct connector
    No
  • Mounting method cover
    Spanned
  • Depth
    68 mm
  • Cover width 1
    80 mm
  • Cover width 3
    0 mm
  • Model
    Moulded hood
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    Other
  • With protective foil
    No
  • Bottom perforation
    No
  • With cable fixing clip
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 4 pcs. 288 pcs.
Weight (kg) 0,116 0,126 0,620 67,640
Width (m) 0,141 0,070 0,185 0,800
Length (m) 0,112 0,090 0,210 0,990
Depth (m) 0,112 0,100 0,260 1,200
