TEHALIT.BRP/BRAP External angle 68x170 painted aluminium BRP651703HLAN

local index:
TAK292TEHA
Catalog No:
BRP651703HLAN
EAN code:
4012740222846
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 120
Color: Silver
Price:
23,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

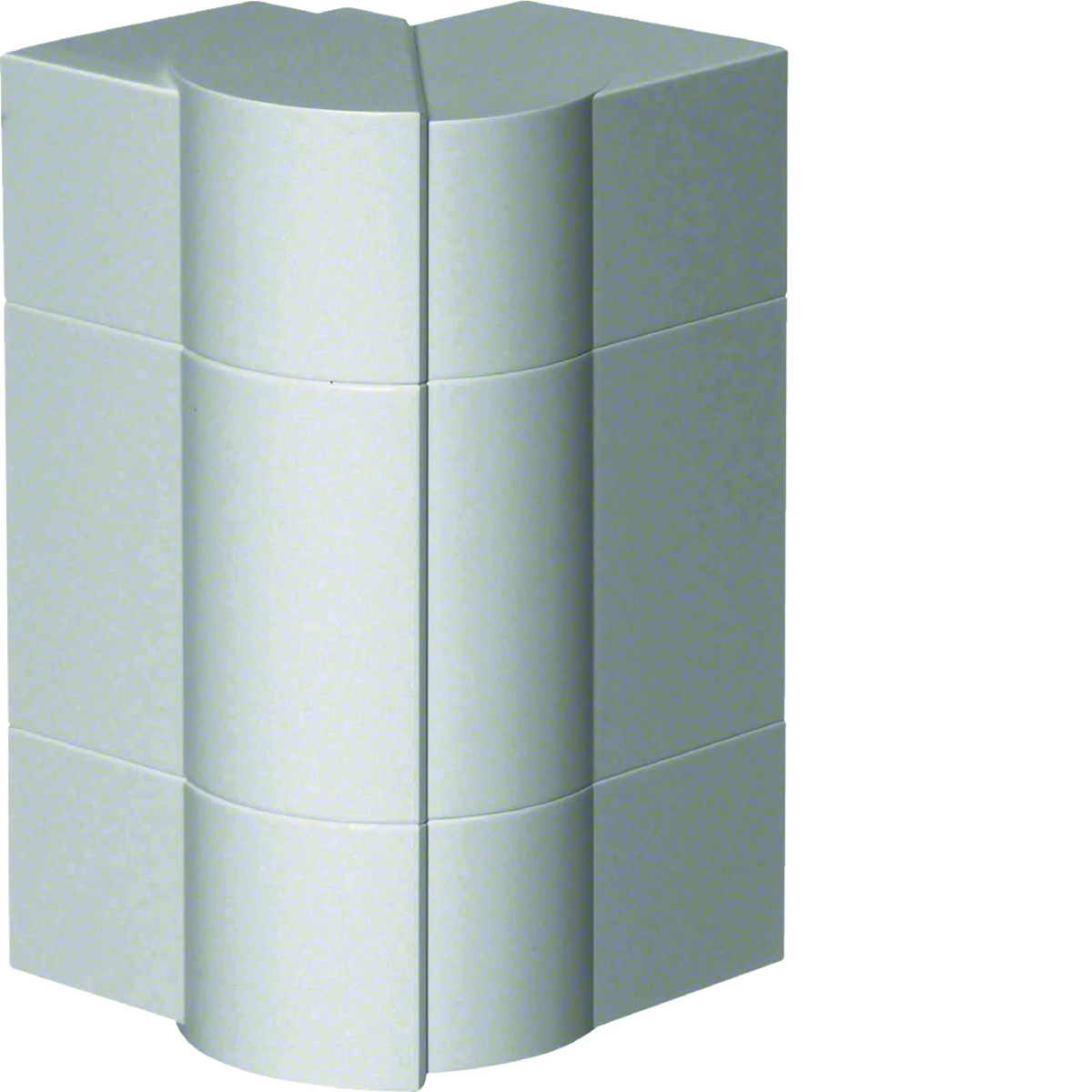

External angle from the tehalit.BRP/BRAP series:

  • degree of protection: IP40,

Characteristics of the series:

The main concept of the tehalit.BRP system was the need to create a simple, quick and universal profile that allows the installation of any accessories. The result of the hard work of our engineers and the experience gained over the years is a simple, quick-to-install PVC duct. The profile can also be made of aluminum (tehalite.BRAP).

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Fixing
    Clamps
  • Width [mm]
    170
  • Operating temperature range [°C]
    from -30 to 90
  • Accurate color
    Aluminum
  • Number of covers that can be fitted
    1
  • PKWIU
    22.23.19.0
  • Length [mm]
    120
  • Material
    PC ABS
  • Family
    TEHALIT.BRP/BRAP
  • Height [mm]
    68
  • Surface finish
    Wet painted
  • Protective film
    NO
  • Cut joint cover
    Yes

Other technical data

  • Width
    170 mm
  • Number of covers
    1
  • Cover width 2
    0 mm
  • Symmetric
    Yes

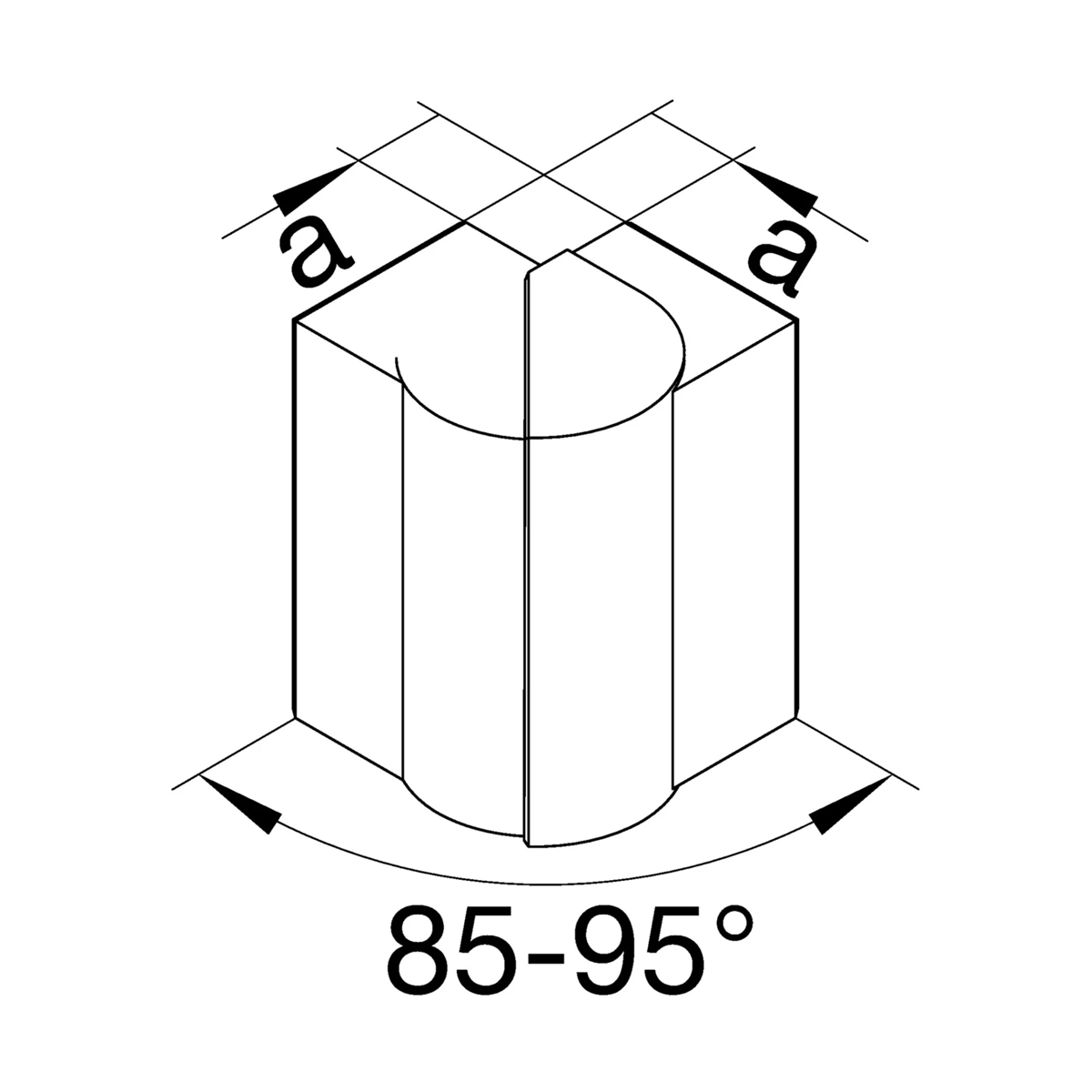

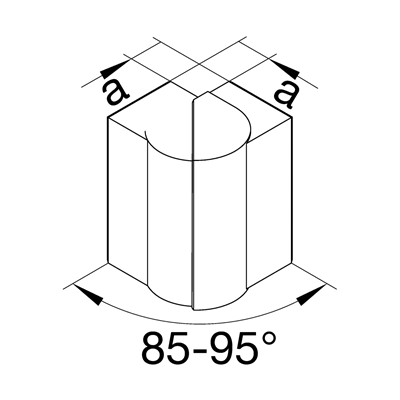

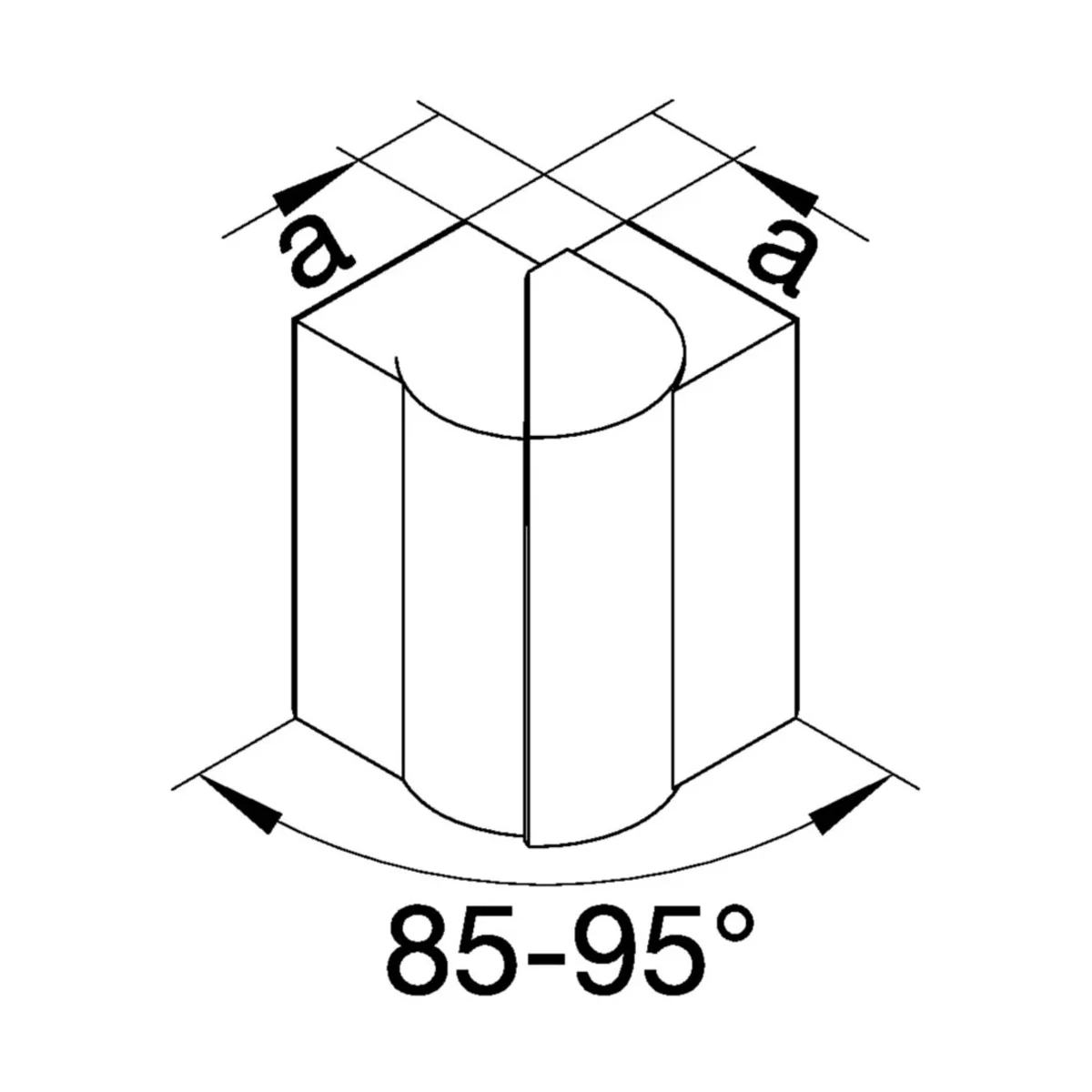

  • Angle
    85 ... 95 °
  • Material quality
    Other
  • Surface protection
    Wet varnished
  • With protective foil
    No
  • Bottom perforation
    No
  • With cable fixing clip
    No
  • Depth
    68 mm
  • Cover width 1
    80 mm
  • Cover width 3
    0 mm
  • Model
    Moulded hood
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    Other
  • With duct connector
    No
  • Mounting method cover
    Spanned

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 5 pcs. 360 pcs.
Weight (kg) 0,136 0,169 0,988 96,136
Width (m) 0,141 0,080 0,180 0,800
Length (m) 0,112 0,100 0,210 1,040
Depth (m) 0,112 0,170 0,250 1,200
