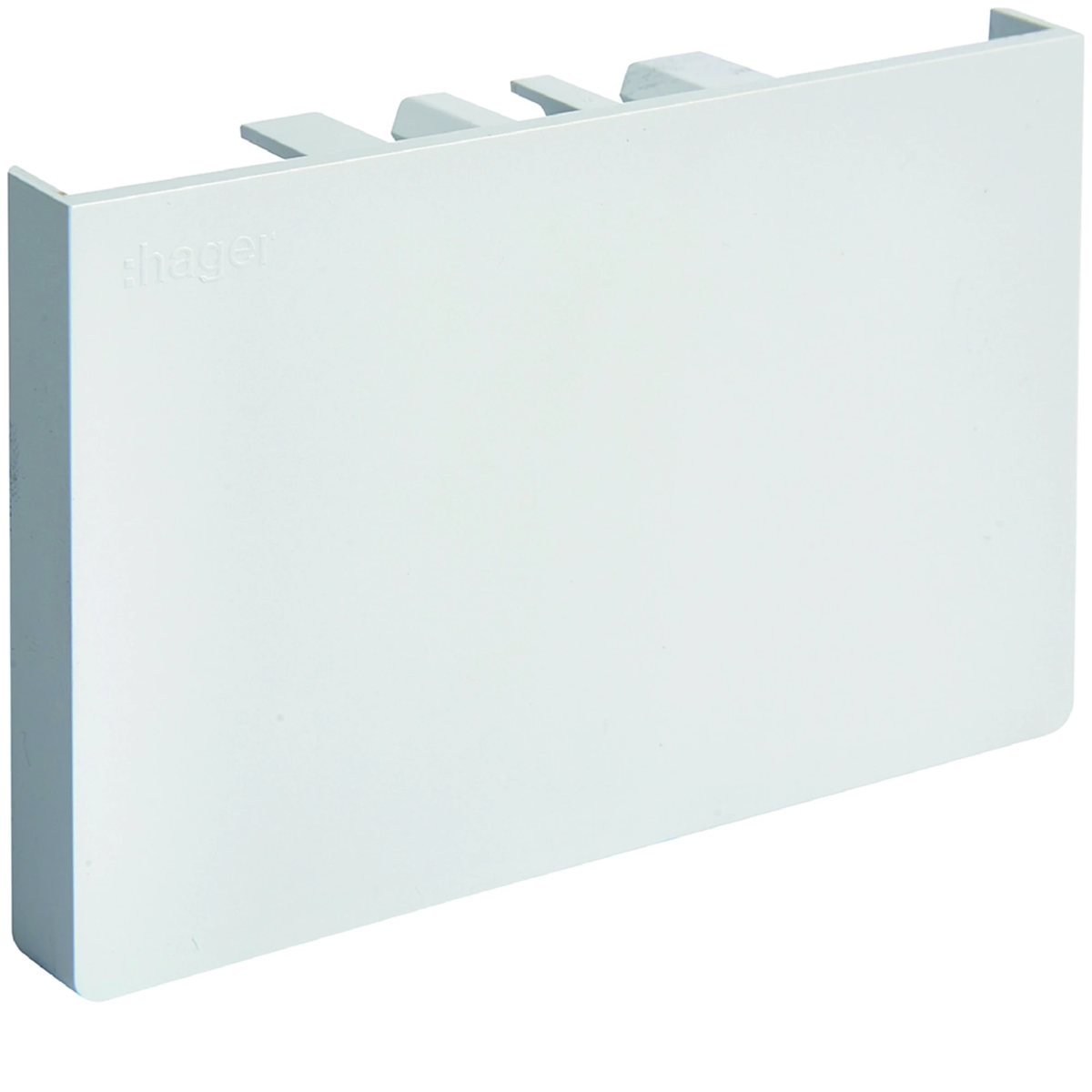

TEHALIT.BRP Tip 65x100 light grey BRP6510067035

local index:
TAK795TEHA
Catalog No:
BRP6510067035
EAN code:
4012740897112
Manufacturer: TEHALIT
Halogen free: Yes
Color: Gray
Material: PC | ABS
Price:
4,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Tip from the tehalite.BRP series:

  • degree of protection: IP40,

Characteristics of the series:

The main concept behind the creation of the tehalit.BRP system was the need to create a simple, quick and universal profile that allows the installation of any accessories. The result of the hard work of our engineers and the experience gained over the years is a simple, quick-to-install PVC duct. The profile can also be made of aluminum (tehalite.BRAP).

Technical data

  • Halogen free
    Yes
  • Material
    PC ABS
  • Family
    TEHALIT.BRP
  • Height [mm]
    65
  • Surface finish
    Natural
  • Protective film
    NO
  • PKWIU
    22.23.19.0
  • Color
    Gray
  • Fixing
    Clamps
  • Width [mm]
    100
  • Operating temperature range [°C]
    from -5 to 65
  • Accurate color
    light gray
  • Cut joint cover
    Yes

Other technical data

  • Width
    100 mm
  • Model
    Symmetric
  • Joint cover
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • RAL-number
    7035
  • Depth
    65 mm
  • Suitable for
    Left/right
  • Type of fastening
    Snap on
  • Material quality
    Other
  • Surface protection
    Untreated
  • With protective foil
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 15 pcs. 2160 pcs.
Weight (kg) 0,031 0,037 0,640 117,160
Width (m) 0,141 0,065 0,185 0,800
Length (m) 0,135 0,020 0,105 1,050
Depth (m) 0,135 0,100 0,255 1,200
