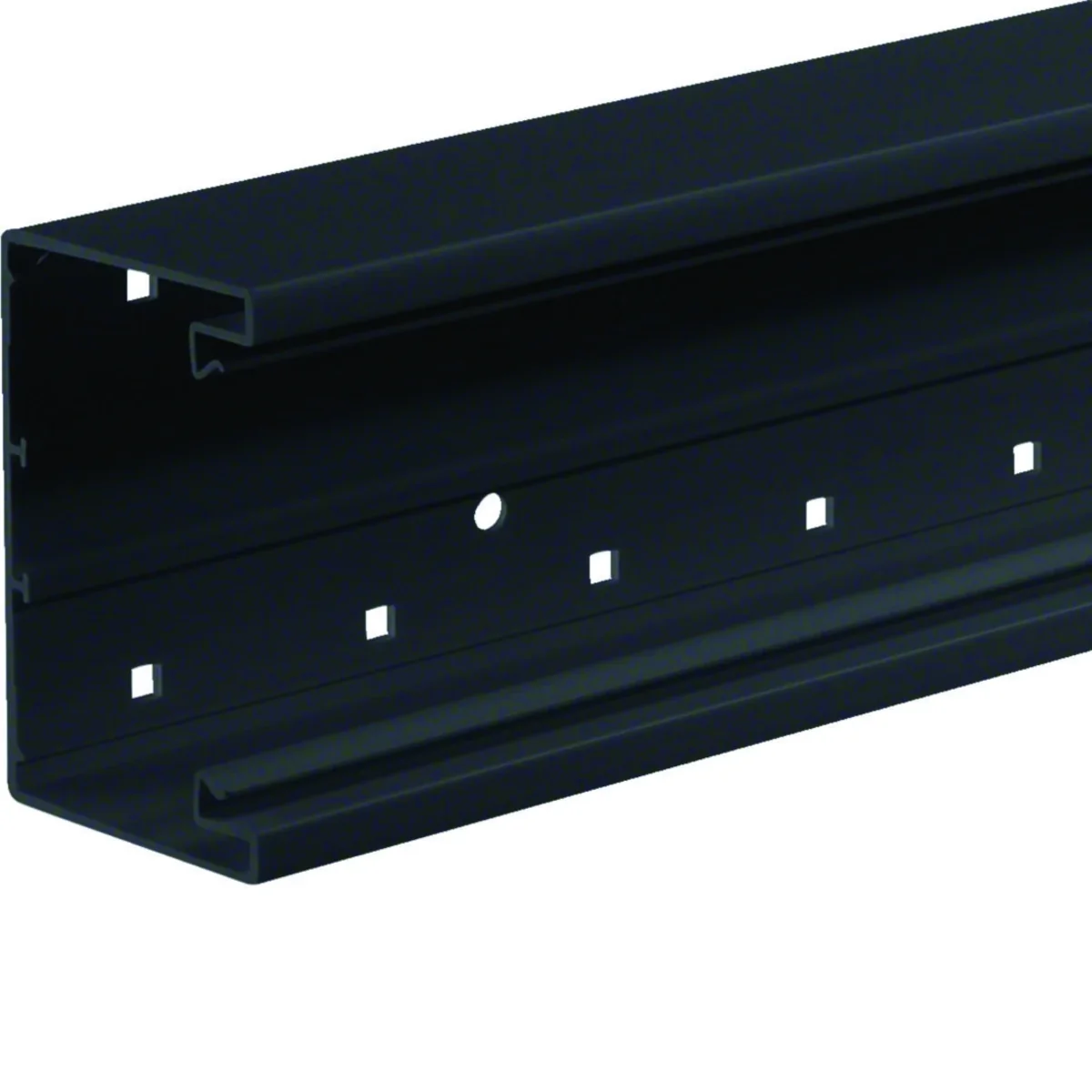

TEHALIT.BRP PVC channel base 70x100 black BRP6510019011

local index:
TKP319TEHA
Catalog No:
BRP6510019011
EAN code:
4012740855990
Manufacturer: TEHALIT
Halogen free: NO
Length [mm]: 2000
Color: Graphite
Large-size product
Price:
22,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PVC duct base from the tehalite.BRP series:

  • degree of protection: IP40,
  • compatible type sockets: Standard 60mm, 45mm, CEE, KNX, MCB,
  • perforated base at 50 mm intervals for brackets/mounting spacers and 250 mm for wall mounting.

Characteristics of the series:

The main concept behind the creation of the tehalit.BRP system was the need to create a simple, quick and universal profile that allows the installation of any accessories. The result of the hard work of our engineers and the experience gained over the years is a simple, quick-to-install PVC duct. The profile can also be made of aluminum (tehalite.BRAP).

Technical data

  • Halogen free
    NO
  • Color
    Graphite
  • Compatible product
    Standard 60mm, 45mm, CEE, KNX, MCB
  • Width [mm]
    100
  • Height [mm]
    70
  • Surface finish
    Natural
  • Number of chambers
    1 to 2
  • Number of covers that can be fitted
    1
  • Length [mm]
    2000
  • Material
    PVC
  • Family
    TEHALIT.BRP
  • Cover width [mm]
    80
  • Operating temperature range [°C]
    from -5 to 65
  • Usable cross-section [mm²]
    5300
  • Protective film
    Yes
  • PKWIU
    27.33.14.0

Other technical data

  • Width
    100 mm
  • Length
    2000 mm
  • Covers supplied with the product
    No
  • Cover width 2
    0 mm
  • Symmetric
    Yes
  • Material
    Plastic
  • Halogen free
    No
  • Colour
    Black
  • Construction rear wall (inner side)
    Continuous other profile
  • With duct connector
    Yes
  • Mounting method cover
    Inner lying
  • Useful cross section
    5300 mm²
  • Depth
    70 mm
  • Number of covers
    1
  • Cover width 1
    80 mm
  • Cover width 3
    0 mm
  • Construction type rectangular
    Yes
  • Material quality
    Polyvinyl chloride (PVC)
  • Surface protection
    Untreated
  • RAL-number
    9011
  • With protective foil
    Yes
  • Bottom perforation
    Yes
  • With cable fixing clip
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 4 pcs. 144 pcs.
Weight (kg) 0,959 8,616 354,280
Width (m) 0,100 0,180 0,800
Length (m) 0,068 0,160 1,640
Depth (m) 1,000 2,045 2,045
