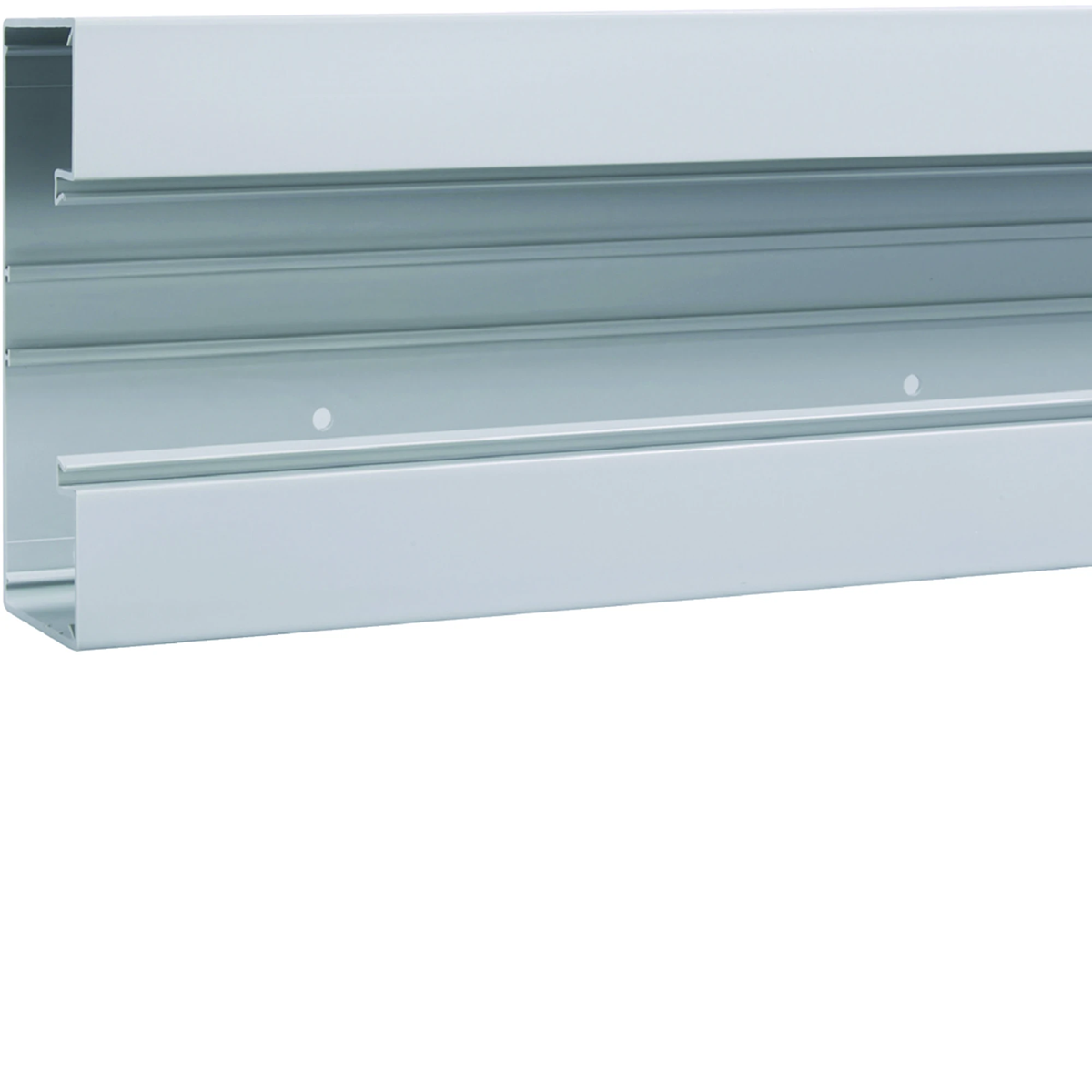

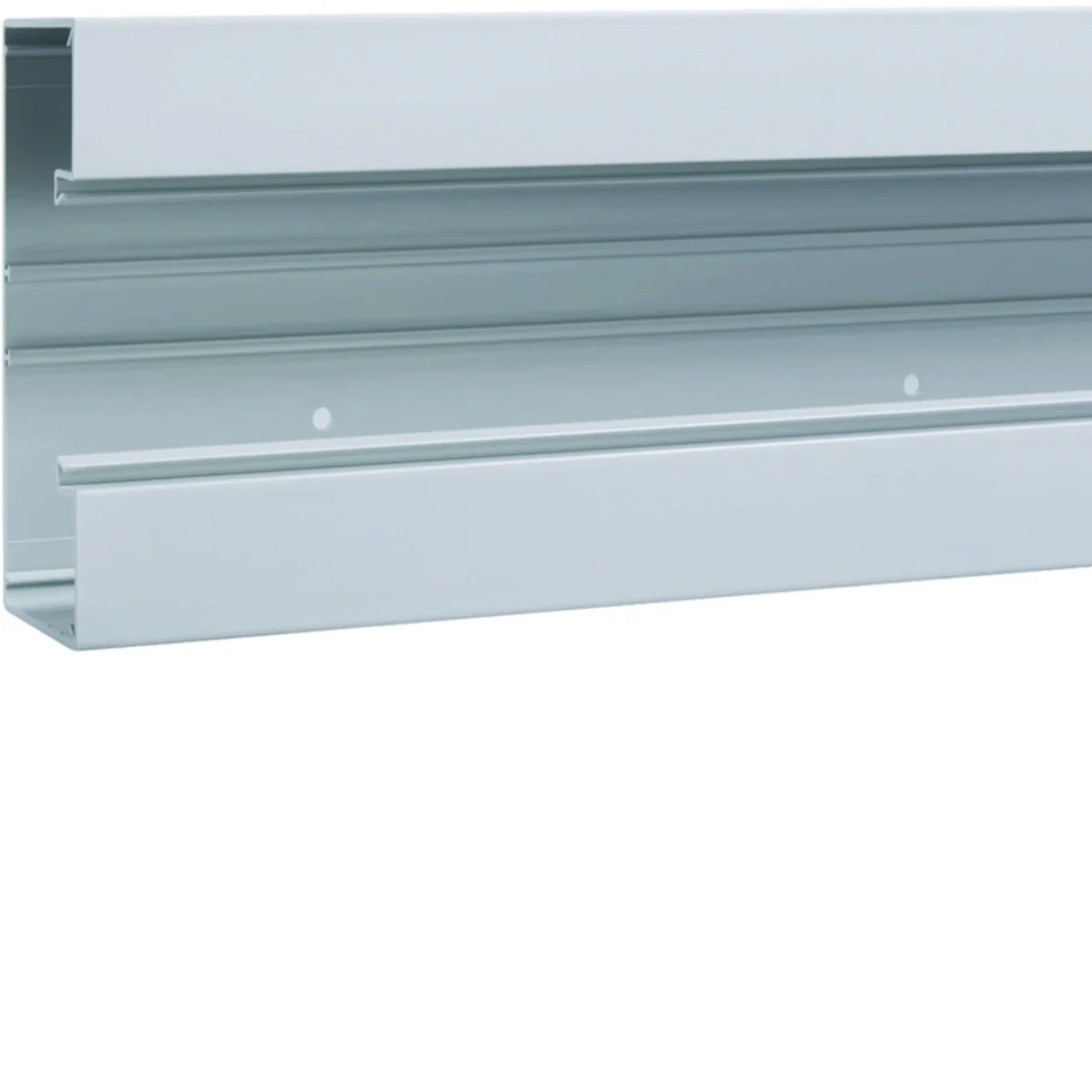

TEHALIT.BRP PVC channel base 65x170 light grey BRP6517017035

Index local:
TKP322TEHA
Numéro de catalogue:
BRP6517017035
Code EAN:
4012740897839
Producteur: TEHALIT
Halogen free: NO
Length [mm]: 2000
Color: Gray
Produit de grande taille
Prix:
194,50 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 4 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

PVC duct base from the tehalite.BRP series:

  • degree of protection: IP40,
  • compatible type sockets: Standard 60mm, 45mm, CEE, KNX, MCB,
  • perforated base at 50 mm intervals for brackets/mounting spacers and 250 mm for wall mounting.

Characteristics of the series:

The main concept behind the creation of the tehalit.BRP system was the need to create a simple, quick and universal profile that allows the installation of any accessories. The result of the hard work of our engineers and the experience gained over the years is a simple, quick-to-install PVC duct. The profile can also be made of aluminum (tehalite.BRAP).

Données techniques

  • Halogen free
    NO
  • Color
    Gray
  • Compatible product
    Standard 60mm, 45mm, CEE, KNX, MCB
  • Width [mm]
    170
  • Height [mm]
    65
  • Surface finish
    Natural
  • Usable cross-section [mm²]
    9000
  • Protective film
    Yes
  • PKWIU
    27.33.14.0
  • Length [mm]
    2000
  • Material
    PVC
  • Family
    TEHALIT.BRP
  • Cover width [mm]
    80
  • Operating temperature range [°C]
    from -5 to 65
  • Accurate color
    light gray
  • Number of chambers
    1 to 2
  • Number of covers that can be fitted
    1

Autres données techniques

  • Width
    170 mm
  • Length
    2000 mm
  • Covers supplied with the product
    No
  • Cover width 2
    0 mm
  • Symmetric
    Yes
  • Material
    Plastic
  • Halogen free
    No
  • RAL-number
    7035
  • With protective foil
    Yes
  • Bottom perforation
    Yes
  • With cable fixing clip
    No
  • Depth
    65 mm
  • Number of covers
    1
  • Cover width 1
    80 mm
  • Cover width 3
    0 mm
  • Construction type rectangular
    Yes
  • Material quality
    Polyvinyl chloride (PVC)
  • Surface protection
    Untreated
  • Construction rear wall (inner side)
    Continuous other profile
  • With duct connector
    Yes
  • Mounting method cover
    Inner lying
  • Useful cross section
    9000 mm²

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Paleta
Quantité 4 pcs. 108 pcs.
poids (kg) 15,512 414,220
Largeur (m) 0,250 0,800
Longueur (m) 0,160 1,640
Profondeur (m) 2,040 2,040
