TEHALIT.BRP PVC channel base 65x130 light grey BRP6513017035

Name: TEHALIT.BRP PVC channel base 65x130 light grey
Brand: TEHALIT
SKU: TKP320TEHA
Price: 30.70 PLN

local index:

TKP320TEHA

Catalog No:

BRP6513017035

EAN code:

4012740897761

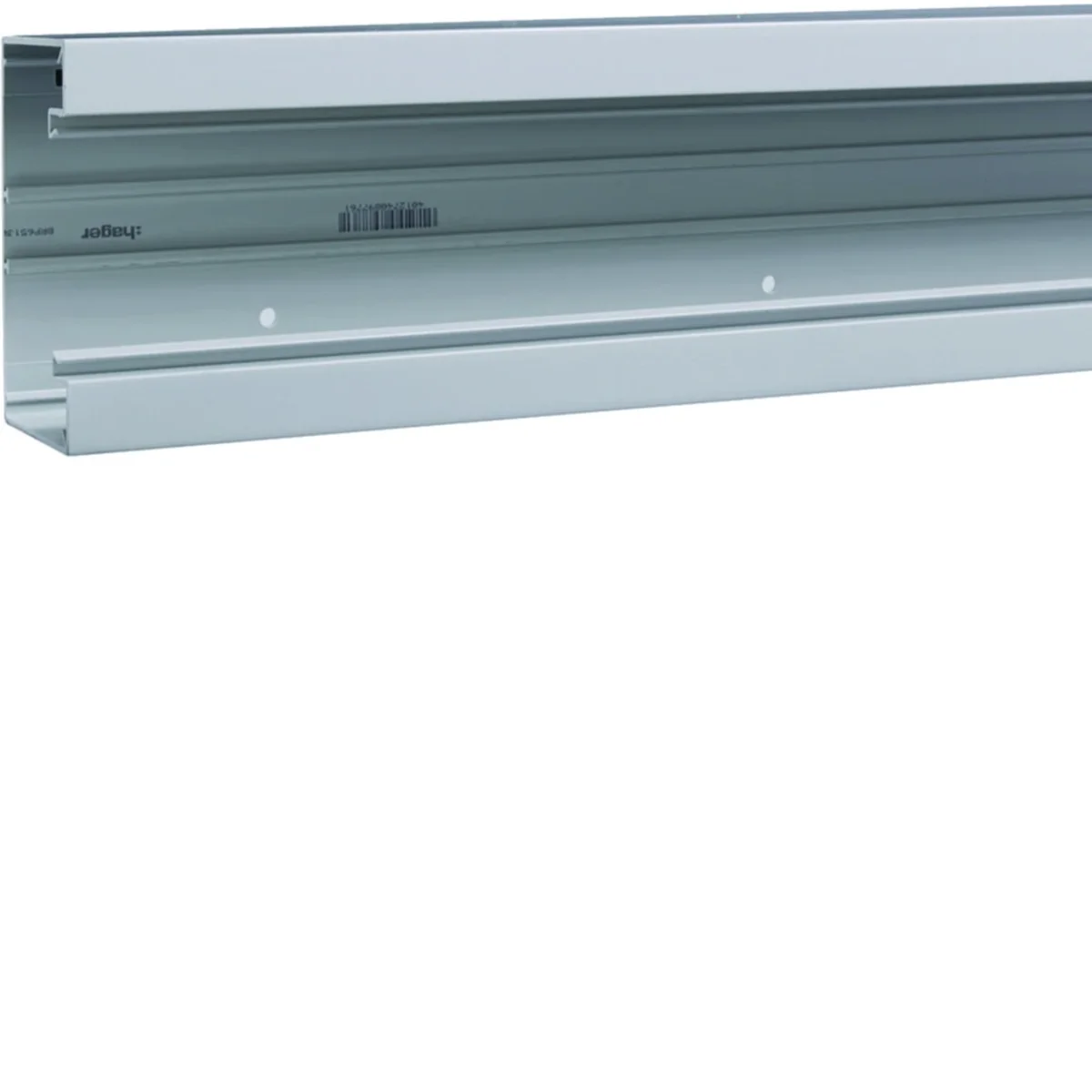

TEHALIT.BRP PVC channel base 65x130 light grey

Click on the photo to enlarge

Manufacturer: TEHALIT

Halogen free: NO

Length [mm]: 2000

Color: Gray

See full description

Large-size product

Price:

30,70 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

PVC duct base from the tehalite.BRP series:

degree of protection: IP40,
compatible type sockets: Standard 60mm, 45mm, CEE, KNX, MCB,
perforated base at 50 mm intervals for brackets/mounting spacers and 250 mm for wall mounting.

Characteristics of the series:

The main concept behind the creation of the tehalit.BRP system was the need to create a simple, quick and universal profile giving the possibility of mounting any accessories. The result of the hard work of our engineers and the experience gained over the years is a simple, quick-to-install PVC duct. The profile can also be made of aluminum (tehalite.BRAP).

Technical data

Halogen free

NO
Color

Gray
Compatible product

Standard 60mm, 45mm, CEE, KNX, MCB
Width [mm]

130
Height [mm]

65
Surface finish

Natural
Usable cross-section [mm²]

6800
Protective film

Yes
PKWIU

27.33.14.0

Length [mm]

2000
Material

PVC
Family

TEHALIT.BRP
Cover width [mm]

80
Operating temperature range [°C]

from -5 to 65
Accurate color

light gray
Number of chambers

1 to 2
Number of covers that can be fitted

1

Other technical data

Width

130 mm
Length

2000 mm
Covers supplied with the product

No
Cover width 2

0 mm
Symmetric

Yes
Material

Plastic
Halogen free

No
RAL-number

7035
With protective foil

Yes
Bottom perforation

Yes
With cable fixing clip

No

Depth

65 mm
Number of covers

1
Cover width 1

80 mm
Cover width 3

0 mm
Construction type rectangular

Yes
Material quality

Polyvinyl chloride (PVC)
Surface protection

Untreated
Construction rear wall (inner side)

Continuous other profile
With duct connector

Yes
Mounting method cover

Inner lying
Useful cross section

6800 mm²

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	4 pcs.	144 pcs.
Weight (kg)	1,237	13,128	512,608
Width (m)	0,130	0,180	0,800
Length (m)	0,068	0,160	1,640
Depth (m)	1,000	2,045	2,045
