TEHALIT.BRP PVC channel base 65x130 black BRP6513019011

Name: TEHALIT.BRP PVC channel base 65x130 black
Brand: TEHALIT
SKU: TKP321TEHA
Price: 30.70 PLN

local index:

TKP321TEHA

Catalog No:

BRP6513019011

EAN code:

4012740856164

TEHALIT.BRP PVC channel base 65x130 black

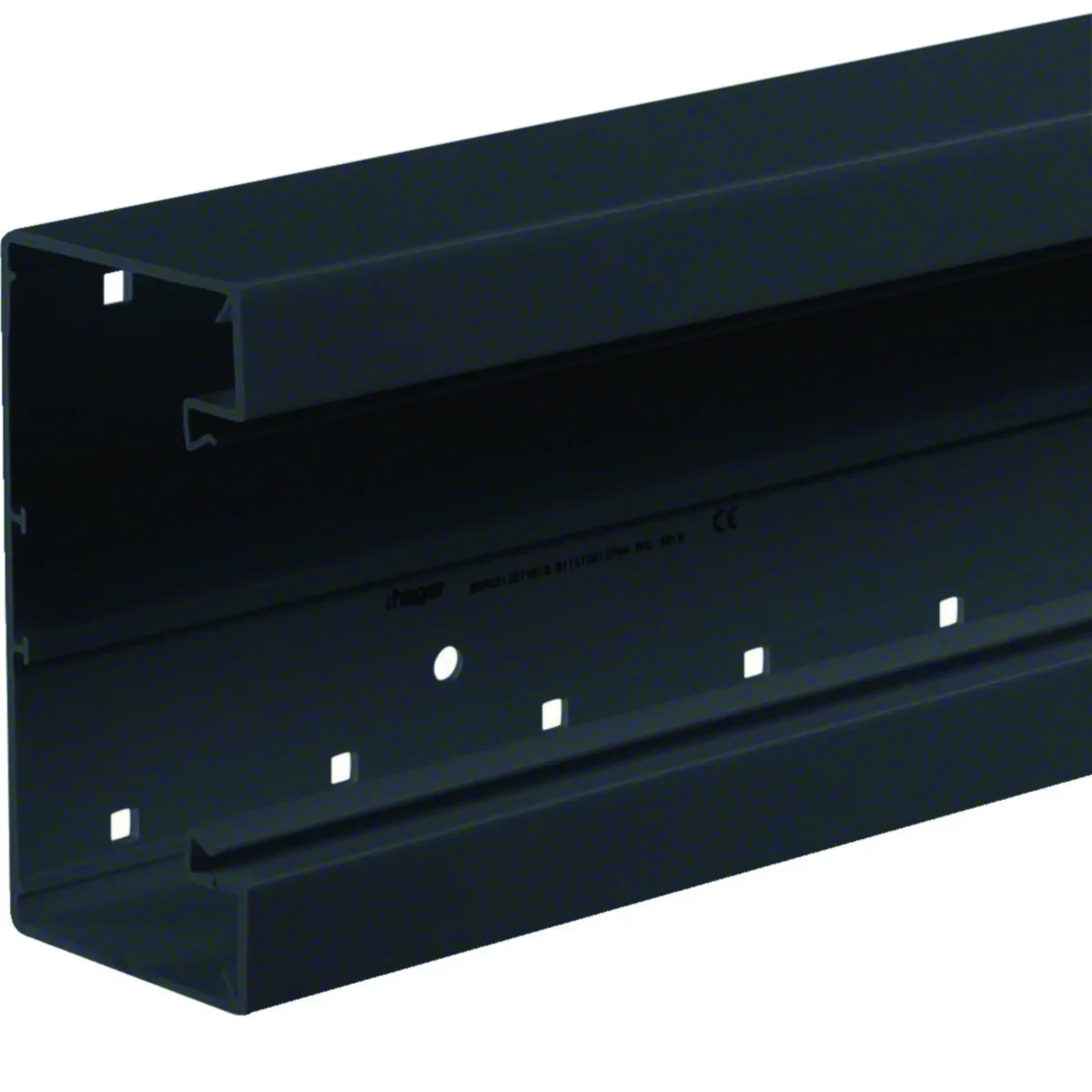

Click on the photo to enlarge

Manufacturer: TEHALIT

Halogen free: NO

Length [mm]: 2000

Color: Graphite

See full description

Large-size product

Price:

30,70 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

PVC duct base from the tehalite.BRP series:

degree of protection: IP40,
compatible type sockets: Standard 60mm, 45mm, CEE, KNX, MCB,
perforated base at 50 mm intervals for brackets/mounting spacers and 250 mm for wall mounting.

Characteristics of the series:

The main concept behind the creation of the tehalit.BRP system was the need to create a simple, quick and universal profile that allows the installation of any accessories. The result of the hard work of our engineers and the experience gained over the years is a simple, quick-to-install PVC duct. The profile can also be made of aluminum (tehalite.BRAP).

Technical data

Halogen free

NO
Color

Graphite
Compatible product

Standard 60mm, 45mm, CEE, KNX, MCB
Width [mm]

130
Height [mm]

65
Surface finish

Natural
Number of chambers

1 to 2
Number of covers that can be fitted

1

Length [mm]

2000
Material

PVC
Family

TEHALIT.BRP
Cover width [mm]

80
Operating temperature range [°C]

from -5 to 65
Usable cross-section [mm²]

6800
Protective film

Yes
PKWIU

27.33.14.0

Other technical data

Width

130 mm
Length

2000 mm
Covers supplied with the product

No
Cover width 2

0 mm
Symmetric

Yes
Material

Plastic
Halogen free

No
Colour

Black
Construction rear wall (inner side)

Continuous other profile
With duct connector

Yes
Mounting method cover

Inner lying
Useful cross section

6800 mm²

Depth

65 mm
Number of covers

1
Cover width 1

80 mm
Cover width 3

0 mm
Construction type rectangular

Yes
Material quality

Polyvinyl chloride (PVC)
Surface protection

Untreated
RAL-number

9011
With protective foil

Yes
Bottom perforation

Yes
With cable fixing clip

No

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	4 pcs.	144 pcs.
Weight (kg)	1,194	13,128	512,608
Width (m)	0,130	0,180	0,800
Length (m)	0,068	0,160	1,640
Depth (m)	1,000	2,045	2,045
