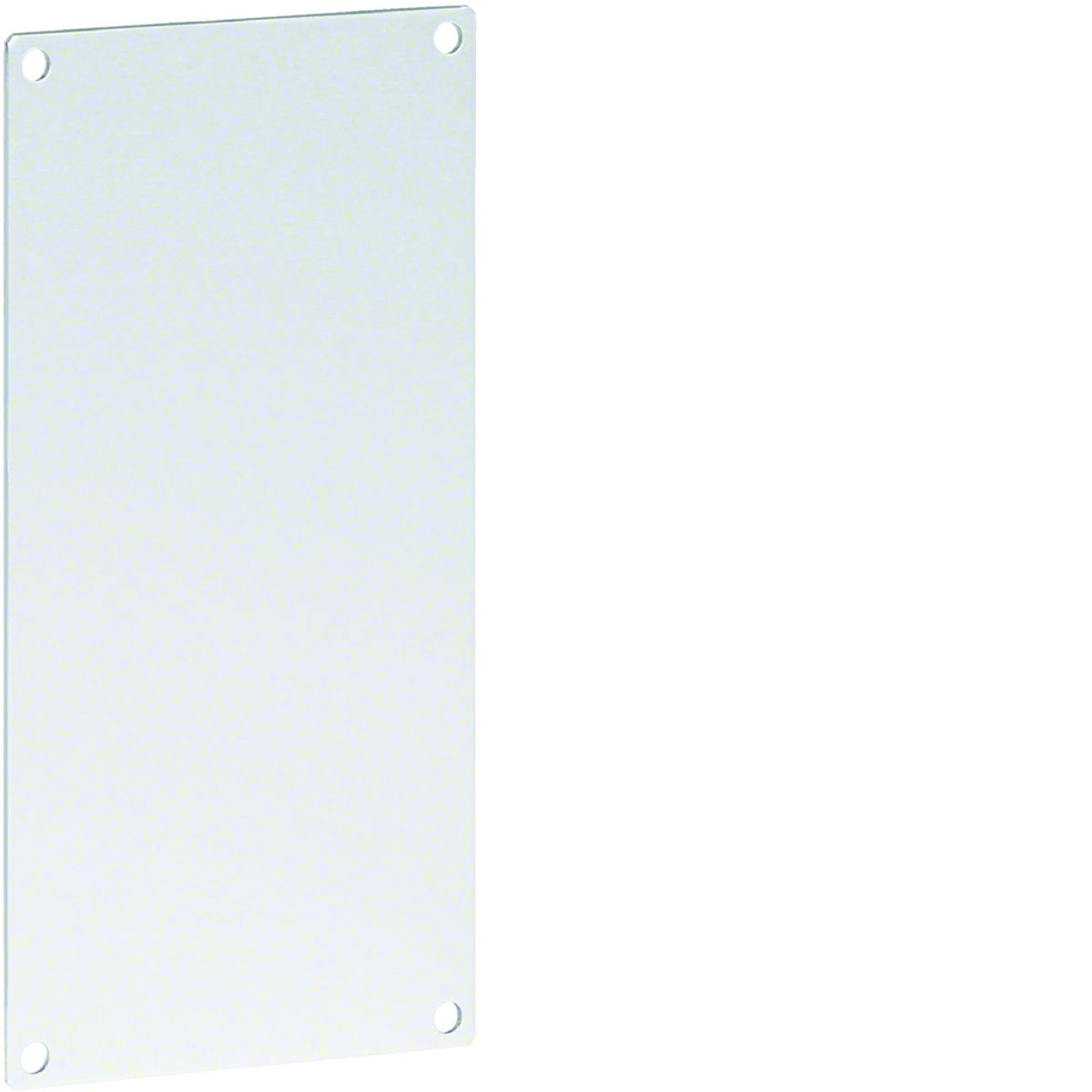

TEHALIT.BRAP Tip 65x130mm anodized L6533ELN

local index:
TAK063TEHA
Catalog No:
L6533ELN
EAN code:
4012740887861
Manufacturer: TEHALIT
Halogen free: Yes
Color: Silver
Material: Aluminum
Price:
9,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Tip from the tehalite.BRAP series.

Series characteristics:

materials that are just as suitable as aluminum for exclusive design concepts. tehalit.BRAP aluminum ducts have been developed to create a comprehensive electrical installation system for rooms requiring the highest level of aesthetics. Installations using the tehalit.BRAP system owe their particular attractiveness to the matte, noble gloss of naturally oxidized aluminum. The aesthetics of this system is most often used in rooms with a modern and representative character.

Modern, architectural designs of furnishing and arrangement of offices and public facilities force us to pay more and more attention to the quality of cable management systems and their durability. Particular security is required in public facilities. tehalit.BRAP aluminum ducts meet all quality requirements, are resistant to impact, damage, and resistant to UV rays. Aluminum as a material not only provides the best protection for the installation, but above all it is resistant to external factors and is completely non-flammable.

Technical data

  • Halogen free
    Yes
  • Material
    Aluminum
  • Family
    TEHALIT.BRAP
  • Height [mm]
    65
  • Accurate color
    Aluminum
  • Cut joint cover
    NO
  • Color
    Silver
  • Fixing
    screwed
  • Width [mm]
    130
  • Surface finish
    Anodized
  • Protective film
    NO
  • PKWIU
    25.11.23.0

Other technical data

  • Width
    130 mm
  • Model
    Symmetric
  • Joint cover
    No
  • Material
    Aluminium
  • Halogen free
    Yes
  • Colour
    Other
  • Depth
    65 mm
  • Suitable for
    Left/right
  • Type of fastening
    Screw-on
  • Material quality
    Other
  • Surface protection
    Anodised
  • With protective foil
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 20 pcs. 2000 pcs.
Weight (kg) 0,041 0,042 0,924 117,400
Width (m) 0,130 0,065 0,180 0,800
Length (m) 0,065 0,002 0,100 1,050
Depth (m) 0,003 0,130 0,180 1,200
