TEHALIT.BRAP Channel base 65x170 anodized aluminium BRAP651701ELN

local index:
TKM275TEHA
Catalog No:
BRAP651701ELN
EAN code:
4012740887731
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 2000
Color: Silver
Large-size product
Price:
191,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

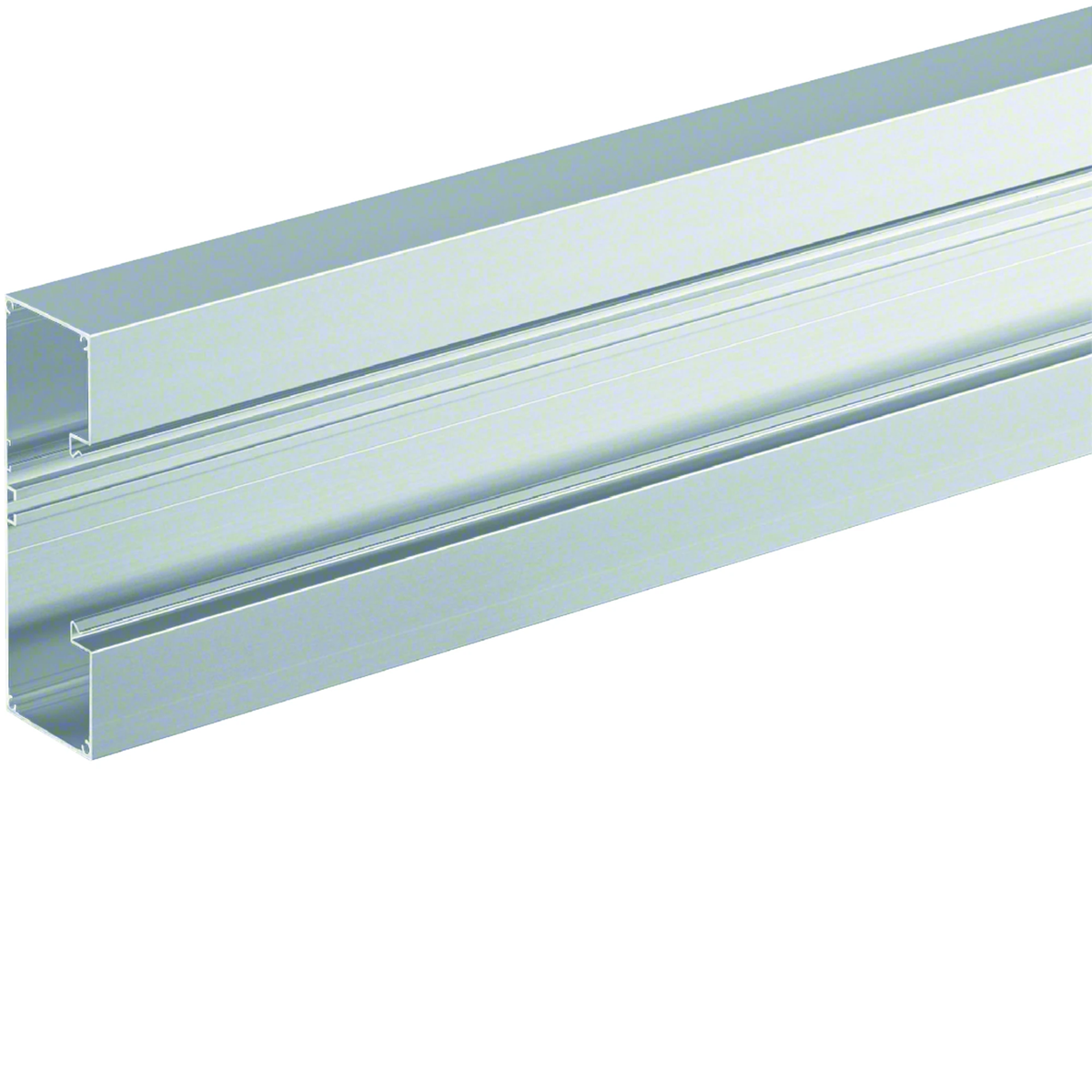

Channel base from the tehalite.BRAP series. Compatible socket type: Standard 60mm, CEE, Ecoline, EIB.

Series characteristics:

Tehalit.BRAP aluminum ducts have been developed to create a comprehensive electrical installation system for rooms requiring the highest level of aesthetics. Installations using the tehalit.BRAP system owe their particular attractiveness to the matte, noble gloss of naturally oxidized aluminum. The aesthetics of this system is most often used in rooms with a modern and representative character.

Tehalit.BRAP aluminum ducts meet all quality requirements, are resistant to impact, damage, and UV radiation. Aluminum as a material not only provides the best protection for the installation, but above all it is resistant to external factors and is completely non-flammable.

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Compatible product
    Standard 60mm, CEE, Ecoline, EIB

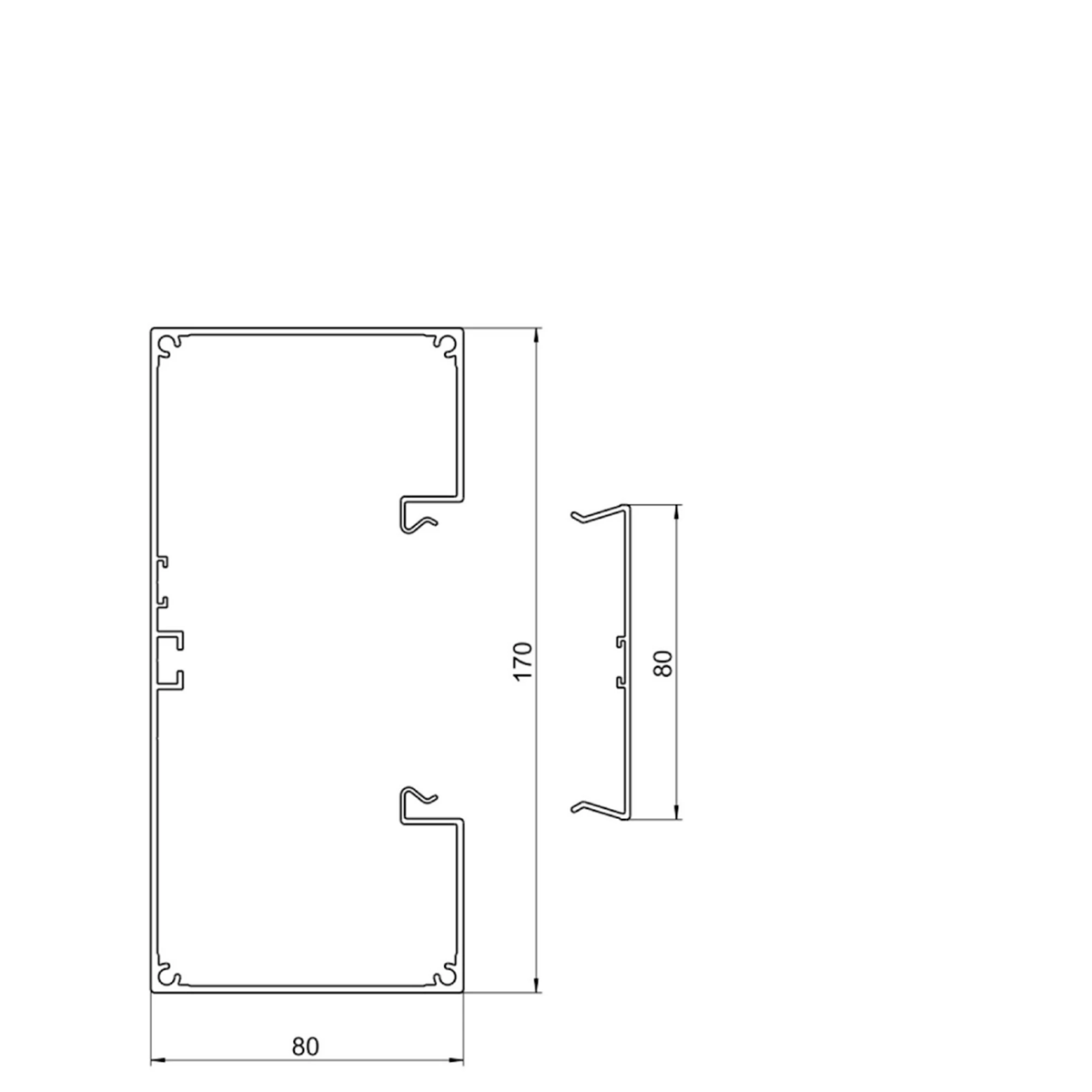

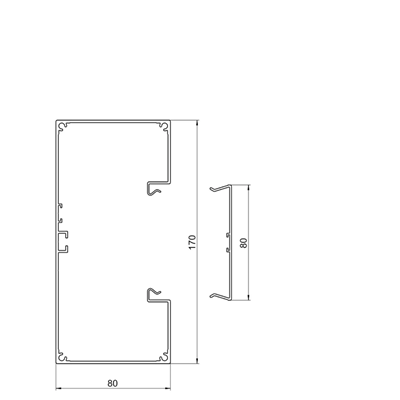

  • Width [mm]
    170
  • Height [mm]
    65
  • Accurate color
    Aluminum
  • Number of chambers
    1 to 2
  • Number of covers that can be fitted
    1
  • Length [mm]
    2000
  • Material
    Aluminum
  • Family
    TEHALIT.BRAP
  • Cover width [mm]
    80
  • Surface finish
    Anodized
  • Usable cross-section [mm²]
    9600
  • Protective film
    Yes
  • PKWIU
    25.11.23.0

Other technical data

  • Width
    170 mm
  • Length
    2000 mm
  • Covers supplied with the product
    No
  • Cover width 2
    0 mm
  • Symmetric
    Yes
  • Material
    Aluminium
  • Halogen free
    Yes
  • Colour
    Other
  • With protective foil
    Yes
  • Bottom perforation
    No
  • With cable fixing clip
    No
  • Depth
    65 mm
  • Number of covers
    1
  • Cover width 1
    80 mm
  • Cover width 3
    0 mm
  • Construction type rectangular
    Yes
  • Material quality
    Other
  • Surface protection
    Anodised
  • Construction rear wall (inner side)
    Continuous C-profile
  • With duct connector
    Yes
  • Mounting method cover
    Inner lying
  • Useful cross section
    9600 mm²

Manufacturer details

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 4 pcs. 108 pcs.
Weight (kg) 2,307 18,460 538,420
Width (m) 0,170 0,260 0,800
Length (m) 0,065 0,160 1,640
Depth (m) 1,000 2,045 2,045
