Name: TEHALIT.BK Reinforcing bar BKFD/WD N=300 steel
Brand: TEHALIT
SKU: TAK0E4TEHA
Price: 12.63 PLN

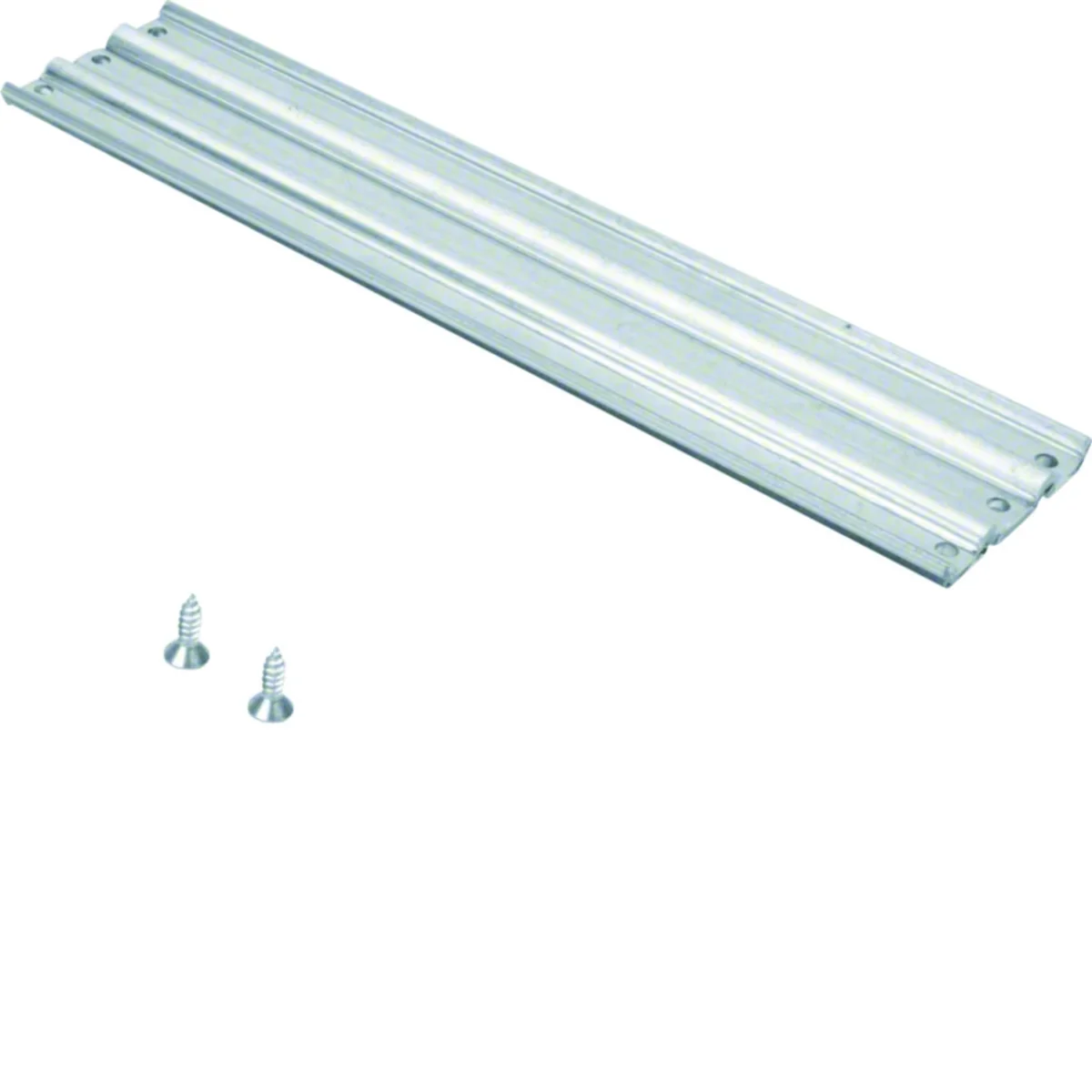

Reinforcing bar for the BKFD/WD co-horizontal channel system for damp-cleaned floors, tehalit.BK series.

material: 3mm galvanized steel sheet, galvanized according to DIN EN 10327,
reinforcing crossbeam for additional reinforcement for end caps and assembly covers with the marking of co-horizontal ducts, assembly with screws in the side wall of the duct.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Halogen free

Yes
Color

Silver
Family

TEHALIT.BK
Accurate color

galvanized

Length [mm]

64
Material

Galvanized steel sheet
Width [mm]

300
PKWIU

25.99.29.0

Other technical data

For nominal duct width

300 mm

Middle support

No

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	25 pcs.	500 pcs.
Weight (kg)	0,524	0,528	13,420	293,000
Width (m)	0,063	0,060	0,180	0,800
Length (m)	0,007	0,010	0,210	0,570
Depth (m)	0,244	0,250	0,380	1,200
