TEHALIT.BK End cap foil BKF 300x(45-190) steel BKFV300

local index:
TAK0D1TEHA
Catalog No:
BKFV300
EAN code:
4012002237113
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 25
Material: Galvanized steel sheet
Price:
60,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

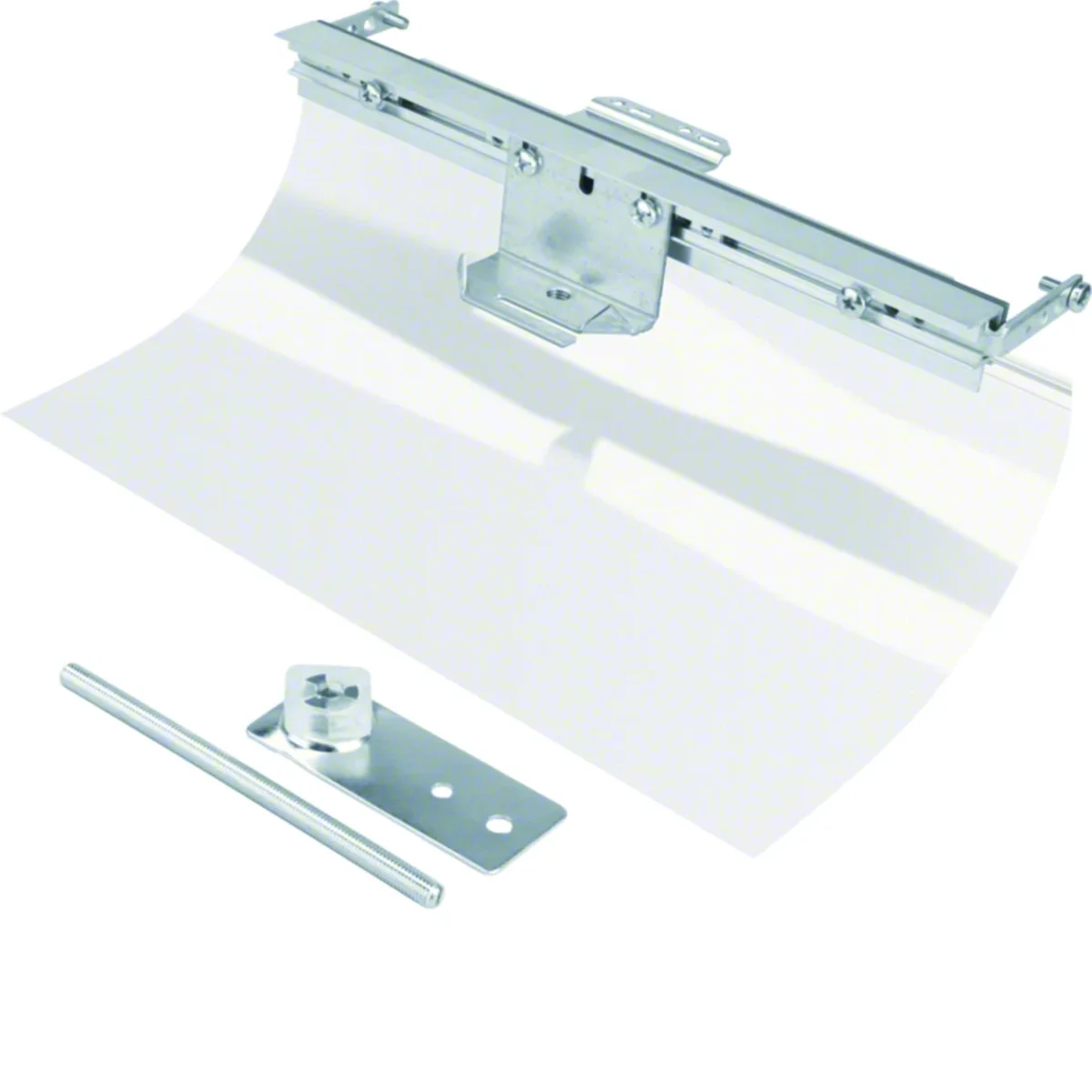

Duct end piecefor co-horizontal duct system with cover foil for BKF dry-cleaned floors, tehalit.BK series. It serves as a channel closure - the tip closes the channel route; the foil protects against the screed pouring inside.

Series characteristics:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Technical data

  • Halogen free
    Yes
  • Material
    Galvanized steel sheet
  • Width [mm]
    300
  • Leveling range
    45/190
  • Length [mm]
    25
  • Family
    TEHALIT.BK
  • Height [mm]
    190
  • PKWIU
    25.11.23.0

Other technical data

  • Width
    300 mm
  • Suitable for subfloor duct overhead open
    Yes
  • Suitable for subfloor duct overhead closed
    Yes
  • Height
    190 mm
  • Suitable for subfloor duct countersunk (closed)
    No
  • Levelling range
    45 ... 190 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 3 pcs. 288 pcs.
Weight (kg) 0,480 0,481 2,200 234,200
Width (m) 0,090 0,100 0,340 0,800
Length (m) 0,060 0,060 0,260 1,040
Depth (m) 0,355 0,300 0,360 1,200
