TEHALIT.BK End cap foil BKF 200x(45-190) steel BKFV200

Index local:
TAK0C9TEHA
Numéro de catalogue:
BKFV200
Code EAN:
4012002237090
Producteur: TEHALIT
Halogen free: Yes
Length [mm]: 25
Material: Galvanized steel sheet
Prix:
249,25 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 4 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

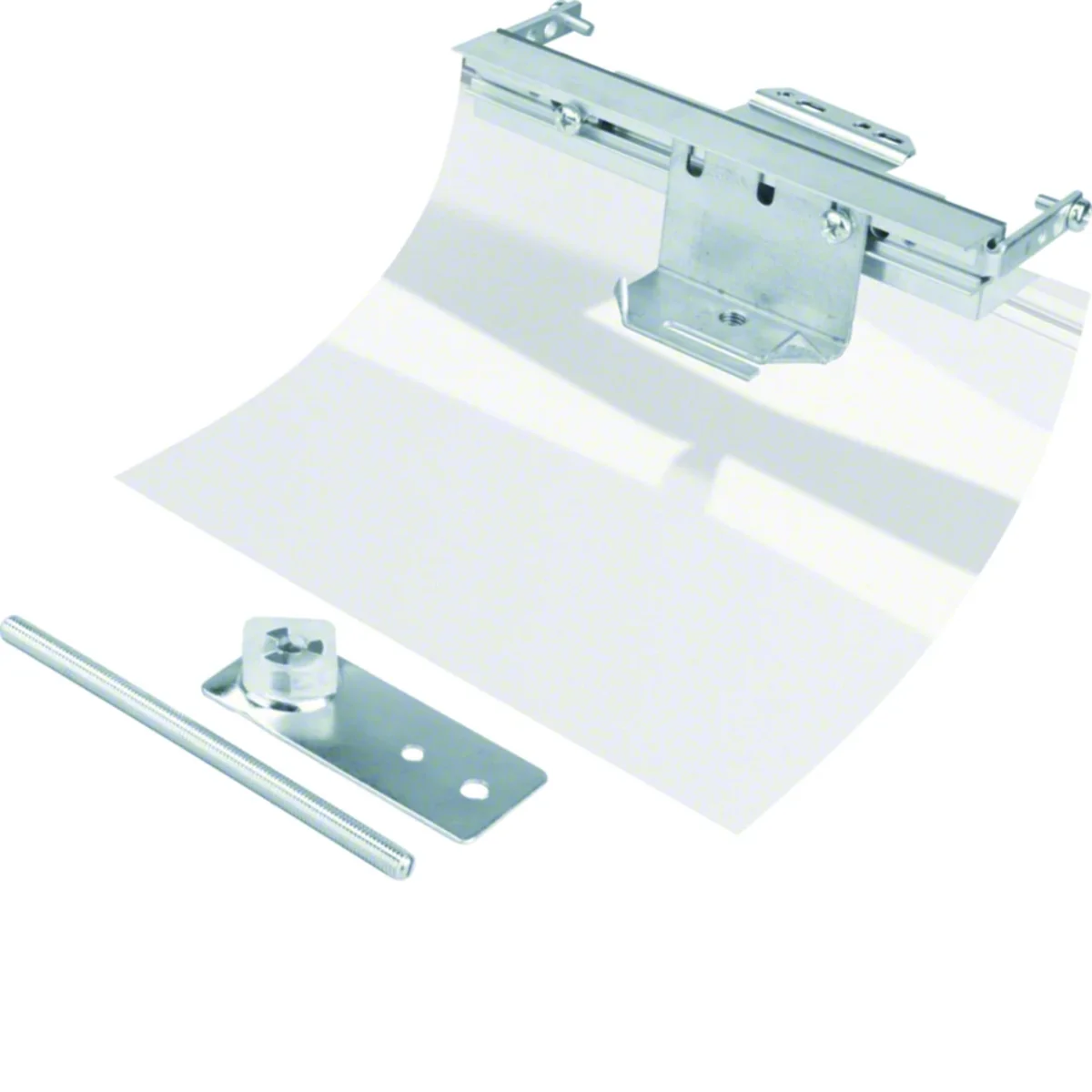

Duct end piecefor co-horizontal duct system with cover foil for BKF dry-cleaned floors, tehalit.BK series. It serves as a channel closure - the tip closes the channel route; the foil protects against the screed pouring inside.

Series characteristics:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Données techniques

  • Halogen free
    Yes
  • Material
    Galvanized steel sheet
  • Width [mm]
    200
  • Leveling range
    45/190
  • Length [mm]
    25
  • Family
    TEHALIT.BK
  • Height [mm]
    190
  • PKWIU
    25.11.23.0

Autres données techniques

  • Width
    200 mm
  • Suitable for subfloor duct overhead open
    Yes
  • Suitable for subfloor duct overhead closed
    Yes
  • Height
    190 mm
  • Suitable for subfloor duct countersunk (closed)
    No
  • Levelling range
    45 ... 190 mm

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Pakiet Paleta
Quantité 1 pcs. 3 pcs. 288 pcs.
poids (kg) 0,363 1,170 135,320
Largeur (m) 0,100 0,180 0,800
Longueur (m) 0,060 0,100 1,050
Profondeur (m) 0,200 0,250 1,200
