Name: TEHALIT.BK Co-horizontal channel steel tub BKWD 600x(70-110) steel
Brand: TEHALIT
SKU: TKM548TEHA
Price: 513.93 PLN

Co-horizontal trunking for trunking system with bottom tub for damp-cleaned floors BKWD, series tehalit.BK.

tub : 1mm galvanized steel sheet according to DIN EN 10327,

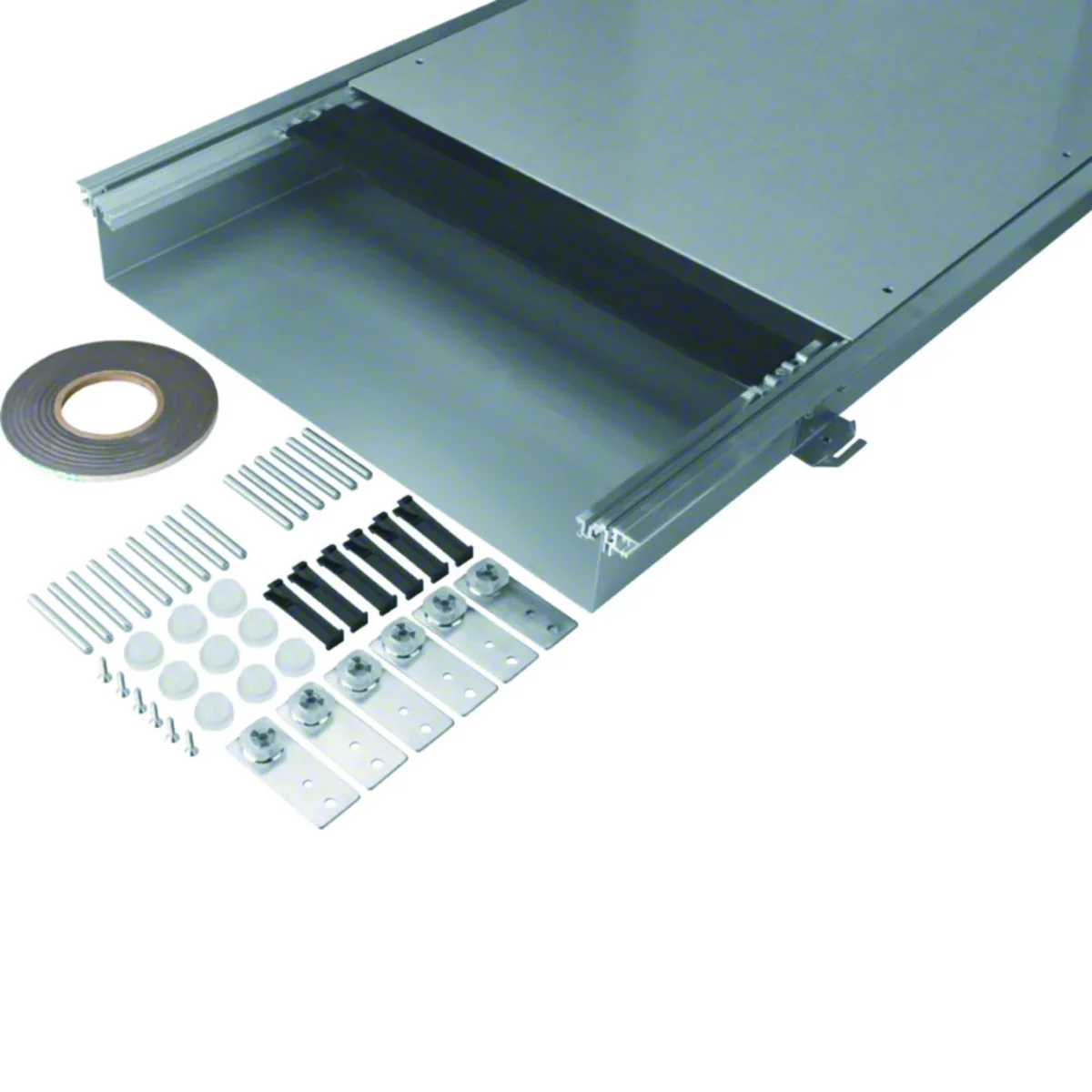

duct supplied with factory fitted covers, brackets, sound insulation, anchors, leveling elements, crossbars, sealing tape on roll, plastic profiles,
from a recess of 70-110mm, hinged covers can be installed,
protection degree - IP30,
minimum duct depth of 30mm (using 45mm soundproofing feet) standard hinged covers cannot be used .

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Halogen free

Yes
Thickness [mm]

3
Material

Galvanized steel sheet
Width [mm]

600
Accurate color

galvanized
How to use and clean the floor

dry
PKWIU

25.99.29.0

Length [mm]

2400
Color

Silver
Family

TEHALIT.BK
Height [mm]

70
Usable cross-section [mm²]

33870
Leveling range

70/110

Other technical data

Width

600 mm
Min. height finishing layer

70 mm
Cover attachment clamping

No
Cover mounting opening

No
With partition panel

No
Partition fixing

Other
Bottom duct

Yes
Surface side wall/bottom duct

Galvanized
Material thickness cover

3 mm

Length

2400 mm
Levelling range

70 ... 110 mm
Mounting opening

None
Number of provided built-in units

3
Max. number of compartments

1
Floor maintenance

Dry
Material side wall/bottom duct

Steel
Material cover

Steel
Decoupling possibility base from main body

Yes

A kind of package		Karton	Paleta
Quantity	1 pcs.	10 pcs.	15 pcs.
Weight (kg)	26,824	643,776	970,000
Width (m)	0,620	-	0,800
Length (m)	0,070	-	1,000
Depth (m)	1,000	-	2,500
