TEHALIT.BK Co-horizontal channel steel tub BKWD 300x(70-110) steel BKWD300070

local index:
TKM532TEHA
Catalog No:
BKWD300070
EAN code:
4012002241295
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 2400
Thickness [mm]: 3
Large-size product
Price:
529,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Co-horizontal trunking for trunking system with bottom tub for damp-cleaned floors BKWD, series tehalit.BK.

  • tub : 1mm galvanized steel sheet according to DIN EN 10327,

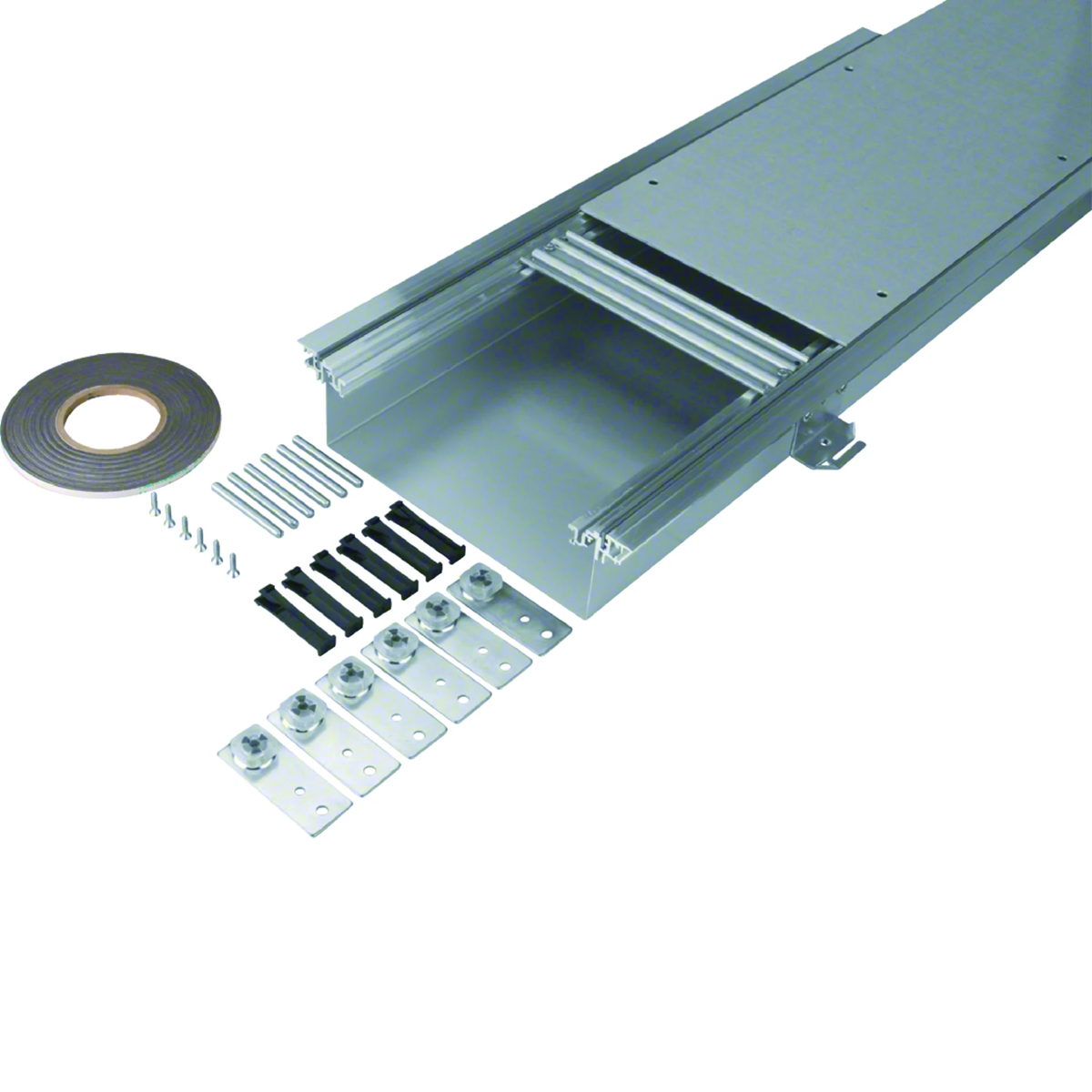

  • duct supplied with factory fitted covers, brackets, sound insulation, anchors, leveling elements, crossbars, sealing tape on roll, plastic profiles,
  • from a recess of 70-110mm, hinged covers can be installed,
  • protection degree - IP30,
  • minimum duct depth of 30mm (using 45mm soundproofing feet) standard hinged covers cannot be used .

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Technical data

  • Halogen free
    Yes
  • Thickness [mm]
    3
  • Material
    Galvanized steel sheet
  • Width [mm]
    300
  • Accurate color
    galvanized
  • How to use and clean the floor
    dry
  • PKWIU
    25.99.29.0
  • Length [mm]
    2400
  • Color
    Silver
  • Family
    TEHALIT.BK
  • Height [mm]
    70
  • Usable cross-section [mm²]
    16470

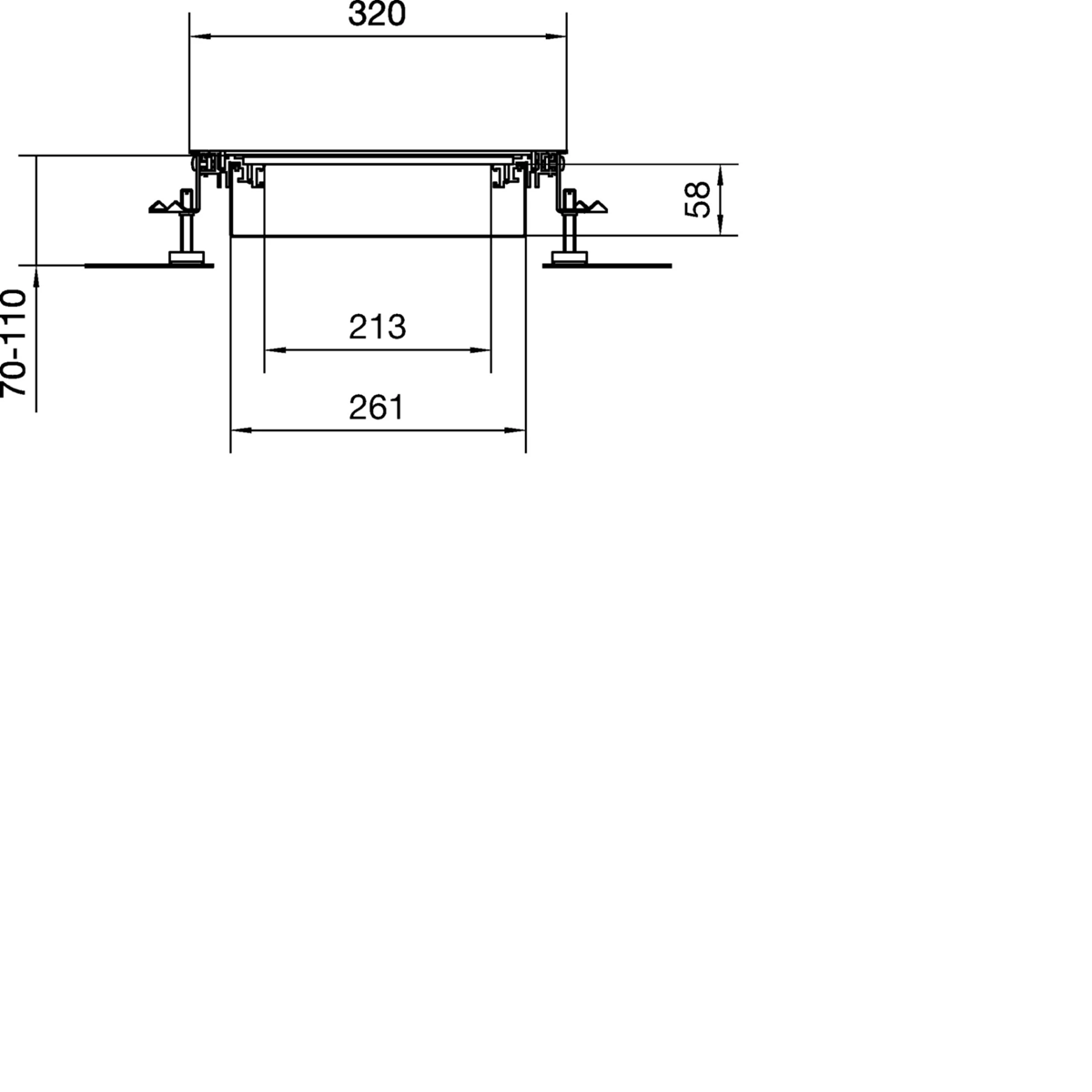

  • Leveling range
    70/110

Other technical data

  • Width
    300 mm
  • Min. height finishing layer
    70 mm
  • Cover attachment clamping
    No
  • Cover mounting opening
    No
  • With partition panel
    No
  • Partition fixing
    Other
  • Bottom duct
    Yes
  • Surface side wall/bottom duct
    Galvanized
  • Material thickness cover
    3 mm
  • Length
    2400 mm
  • Levelling range
    70 ... 110 mm
  • Mounting opening
    None
  • Number of provided built-in units
    3
  • Max. number of compartments
    1
  • Floor maintenance
    Dry
  • Material side wall/bottom duct
    Steel
  • Material cover
    Steel
  • Decoupling possibility base from main body
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 15 pcs.
Weight (kg) 13,804 33,130 496,944
Width (m) 0,320 - 0,800
Length (m) 0,070 - 1,000
Depth (m) 1,000 - 2,500
