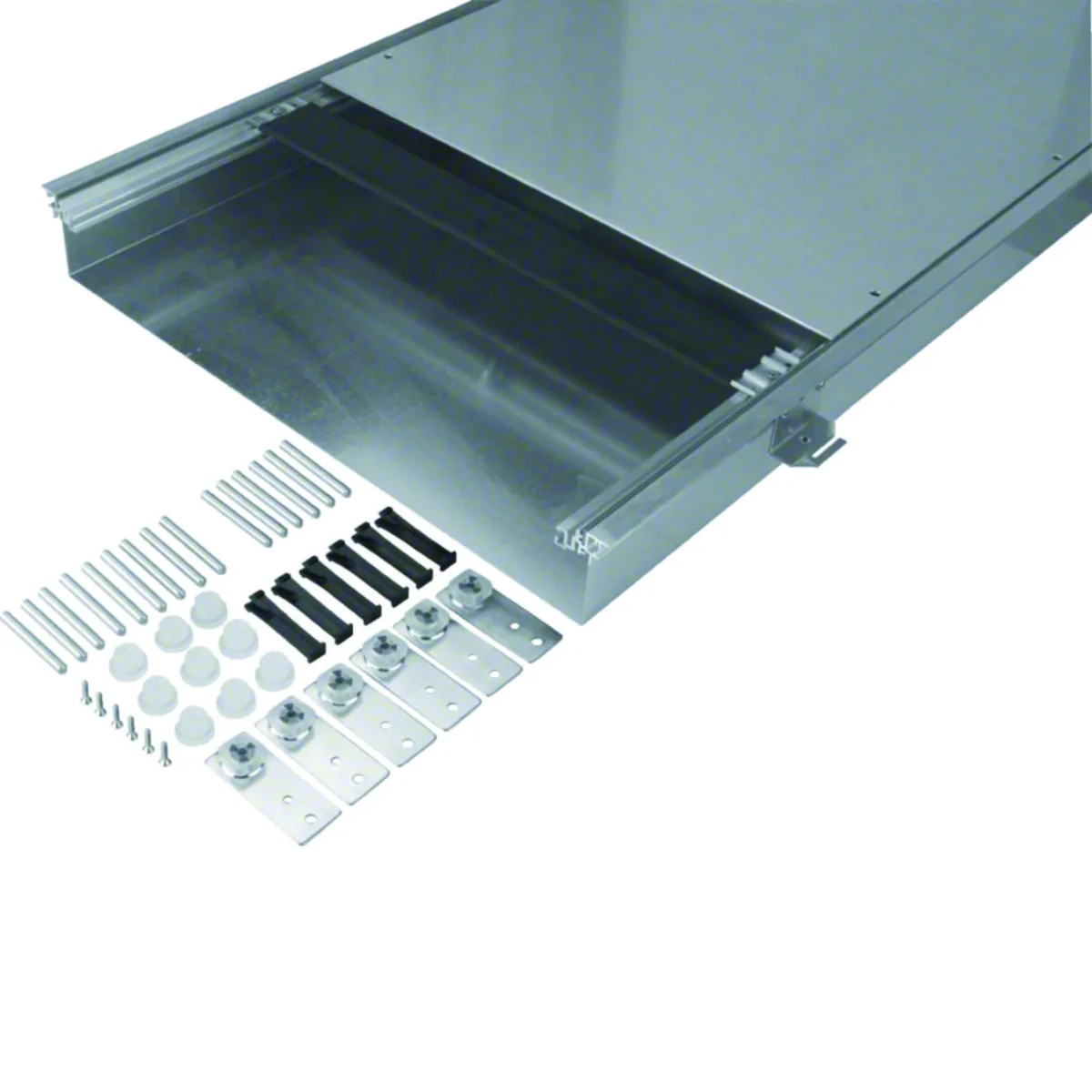

Name: TEHALIT.BK Co-horizontal channel steel tub BKW 600x(60-100) steel
Brand: TEHALIT
SKU: TKM516TEHA
Price: 773.52 PLN

Co-horizontal trunkingfor trunking system with bottom tub for BKW dry-cleaned floors, series tehalit.BK.

tub : 1mm galvanized steel sheet according to DIN EN 10327,
channel with pre-installed covers, clamps, sound insulation, anchors, leveling elements, crossbars, plastic profiles,
hinged covers they can be mounted from the level of 70-110 mm,
degree of protection - IP30,
minimum duct depth 30mm (using 45mm soundproofing feet) standard hinged covers cannot be used.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used for routing cables and other installations, e.g. water or heating pipes in floors, in any place in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Halogen free

Yes
Thickness [mm]

3
Material

Galvanized steel sheet
Width [mm]

600
Accurate color

galvanized
How to use and clean the floor

dry
PKWIU

25.99.29.0

Length [mm]

2400
Color

Silver
Family

TEHALIT.BK
Height [mm]

60
Usable cross-section [mm²]

28030
Leveling range

60/100

Other technical data

Width

600 mm
Min. height finishing layer

60 mm
Cover attachment clamping

No
Cover mounting opening

No
With partition panel

No
Partition fixing

Screwing
Bottom duct

Yes
Surface side wall/bottom duct

Galvanized
Material thickness cover

3 mm

Length

2400 mm
Levelling range

60 ... 100 mm
Mounting opening

None
Number of provided built-in units

3
Max. number of compartments

1
Floor maintenance

Dry
Material side wall/bottom duct

Steel
Material cover

Steel
Decoupling possibility base from main body

Yes

A kind of package		Karton	Paleta
Quantity	1 pcs.	10 pcs.	15 pcs.
Weight (kg)	2,656	63,768	981,520
Width (m)	0,616	-	0,800
Length (m)	0,058	-	1,000
Depth (m)	1,000	-	2,500
