TEHALIT.BK Co-horizontal channel steel tub BKW 300x(90-130) steel BKW300090

local index:
TKM503TEHA
Catalog No:
BKW300090
EAN code:
4012002237427
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 2400
Thickness [mm]: 3
Large-size product
Price:
469,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Co-horizontal trunkingfor trunking system with bottom tub for BKW dry-cleaned floors, series tehalit.BK.

  • tub : 1mm galvanized steel sheet according to DIN EN 10327,

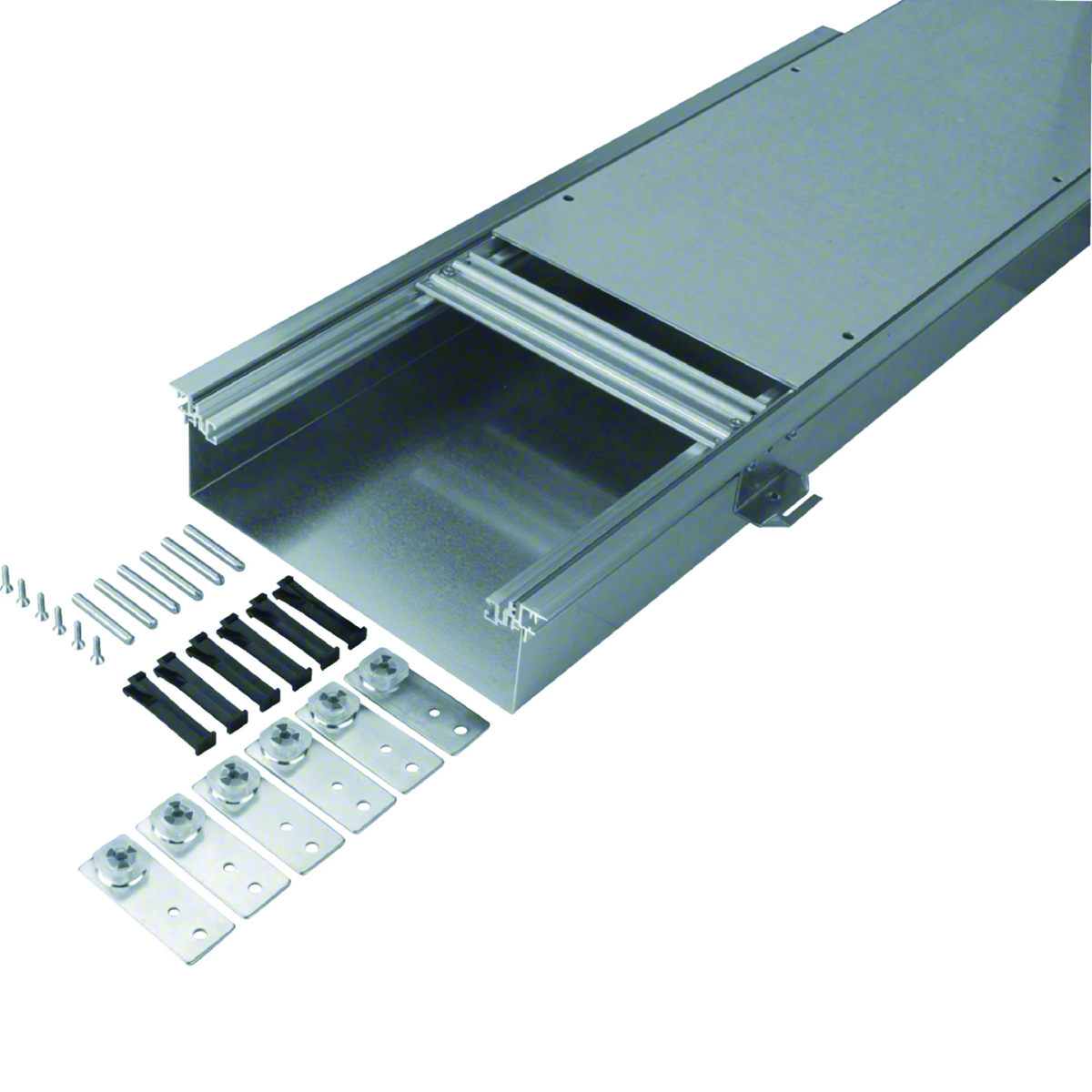

  • channel with pre-installed covers, clamps, sound insulation, anchors, leveling elements, crossbars, plastic profiles,
  • hinged covers they can be installed from the level of 70-110 mm,
  • degree of protection - IP30,
  • minimum duct depth 30mm (using 45mm soundproofing feet) standard hinged covers cannot be used.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, in any place in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Technical data

  • Halogen free
    Yes
  • Thickness [mm]
    3
  • Material
    Galvanized steel sheet
  • Width [mm]
    300
  • Accurate color
    galvanized
  • How to use and clean the floor
    dry
  • PKWIU
    25.99.29.0
  • Length [mm]
    2400
  • Color
    Silver
  • Family
    TEHALIT.BK
  • Height [mm]
    90
  • Usable cross-section [mm²]
    22150
  • Leveling range
    90/130

Other technical data

  • Width
    300 mm
  • Min. height finishing layer
    90 mm
  • Cover attachment clamping
    No
  • Cover mounting opening
    No
  • With partition panel
    No
  • Partition fixing
    Screwing
  • Bottom duct
    Yes
  • Surface side wall/bottom duct
    Galvanized
  • Material thickness cover
    3 mm
  • Length
    2400 mm
  • Levelling range
    90 ... 130 mm
  • Mounting opening
    None
  • Number of provided built-in units
    3
  • Max. number of compartments
    1
  • Floor maintenance
    Dry
  • Material side wall/bottom duct
    Steel
  • Material cover
    Steel
  • Decoupling possibility base from main body
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 15 pcs.
Weight (kg) 13,932 33,437 510,000
Width (m) 0,316 - 0,800
Length (m) 0,088 - 1,000
Depth (m) 1,000 - 2,500
