TEHALIT.BK Co-horizontal channel steel tub BKW 200x(60-100) steel BKW200060

local index:
TKM492TEHA
Catalog No:
BKW200060
EAN code:
4012002237311
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 2400
Thickness [mm]: 3
Large-size product
Price:
371,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

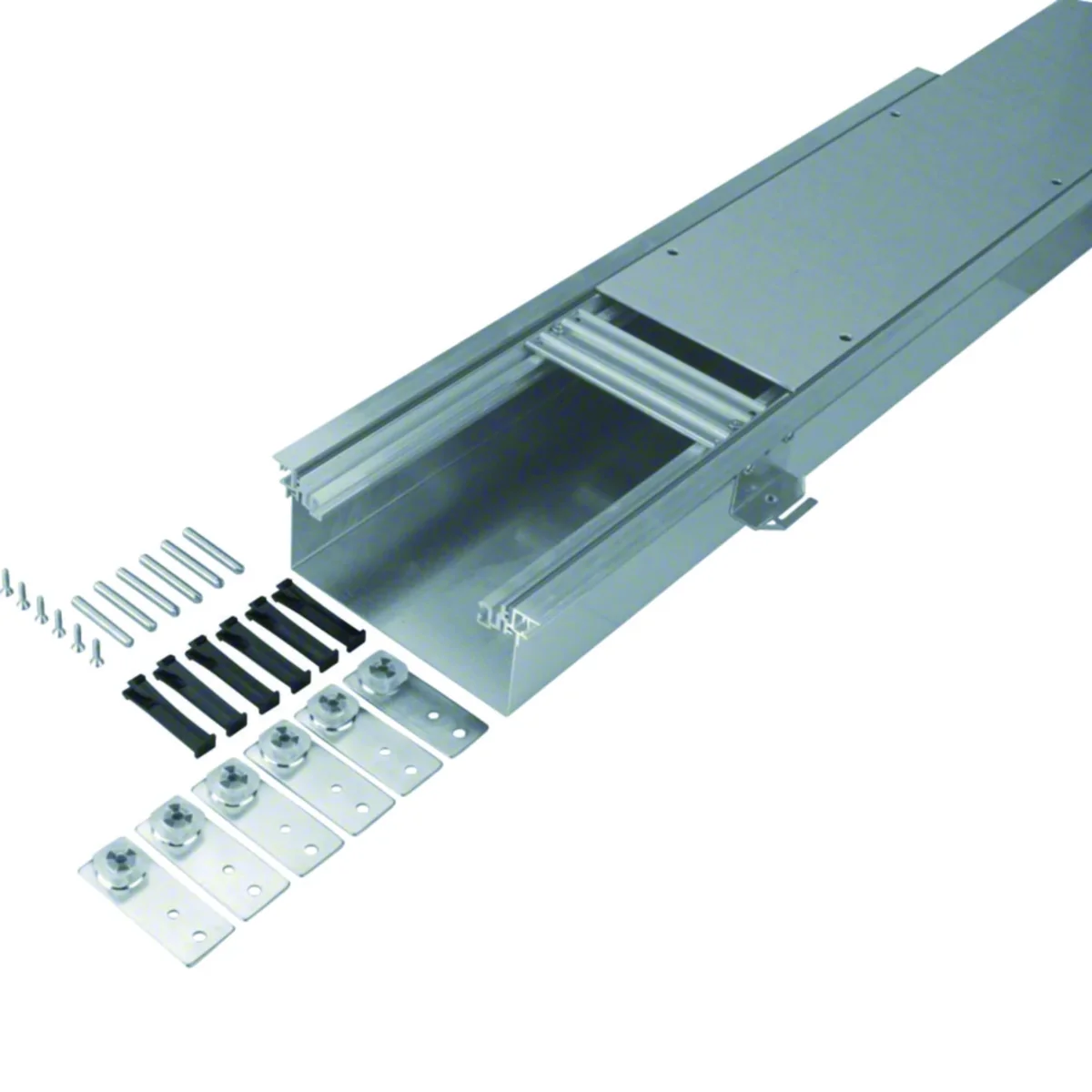

Co-horizontal trunkingfor trunking system with bottom tub for BKW dry-cleaned floors, series tehalit.BK.

  • tub : 1mm galvanized steel sheet according to DIN EN 10327,
  • channel with pre-installed covers, clamps, sound insulation, anchors, leveling elements, crossbars, plastic profiles,
  • hinged covers they can be mounted from the level of 70-110 mm,
  • degree of protection - IP30,
  • minimum duct depth 30mm (using 45mm soundproofing feet) standard hinged covers cannot be used.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used for routing cables and other installations, e.g. water or heating pipes in floors, in any place in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Technical data

  • Halogen free
    Yes
  • Thickness [mm]
    3
  • Material
    Galvanized steel sheet
  • Width [mm]
    200
  • Accurate color
    galvanized
  • How to use and clean the floor
    dry
  • PKWIU
    25.99.29.0
  • Length [mm]
    2400
  • Color
    Silver
  • Family
    TEHALIT.BK
  • Height [mm]
    60
  • Usable cross-section [mm²]
    8830
  • Leveling range
    60/100

Other technical data

  • Width
    200 mm
  • Min. height finishing layer
    60 mm
  • Cover attachment clamping
    No
  • Cover mounting opening
    No
  • Max. number of compartments
    1
  • Floor maintenance
    Dry
  • Material side wall/bottom duct
    Steel
  • Material cover
    Steel
  • Decoupling possibility base from main body
    Yes
  • Length
    2400 mm
  • Levelling range
    60 ... 100 mm
  • Mounting opening
    None
  • With partition panel
    No
  • Partition fixing
    Screwing
  • Bottom duct
    Yes
  • Surface side wall/bottom duct
    Galvanized
  • Material thickness cover
    3 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 15 pcs.
Weight (kg) 0,903 21,700 350,500
Width (m) 0,216 0,270 0,800
Length (m) 0,048 0,070 1,080
Depth (m) 2,400 2,400 2,500
