TEHALIT.BK Co-horizontal channel side protective foil BKFD 400x(65-110) steel BKFD400065

Co-horizontal trunkingfor trunking system with side cover foil for damp-cleaned floors BKFD, series tehalit.BK.

• standard the sides of the channel are equipped with a flexible protective foil to prevent the screed from flowing into the channel,

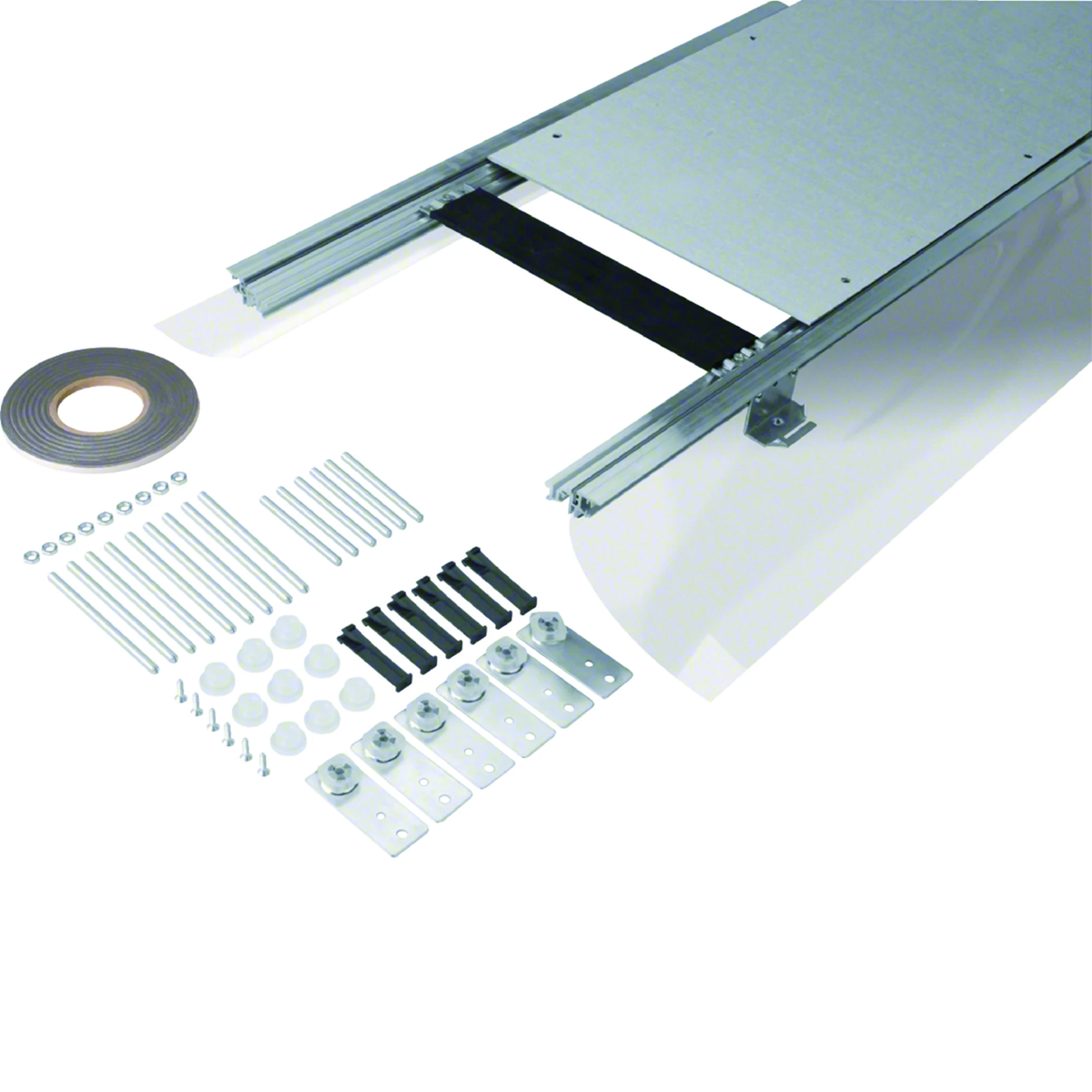

• the channel with pre-installed covers, clamps, sound insulation, anchors, leveling elements, crossbars, sealing tape on a roll, plastic profiles
• minimum duct depth 55 mm (when installing hinged covers, e.g. KDQ),
• degree of protection - IP30,
• minimum duct depth 30 mm (when 45mm soundproofing feet) standard hinged covers cannot be used.

Series characteristics:

The tehalit.BK co-horizontal duct system is used for routing cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.
