TEHALIT.BK Co-horizontal channel side protective foil BKFD 400x(105-150) steel BKFD400105

Indeks lokalny:
TKM471TEHA
Nr katalogowy:
BKFD400105
Kod EAN:
4012002240243
Producent: TEHALIT
Halogen free: Yes
Length [mm]: 2400
Thickness [mm]: 3
Produkt wielkogabarytowy
Cena:
664,36 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
do 4 tygodni (dni robocze)
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

Co-horizontal trunkingfor trunking system with side cover foil for damp-cleaned floors BKFD, series tehalit.BK.

  • standard the sides of the channel are equipped with a flexible protective foil to prevent the screed from flowing into the channel,

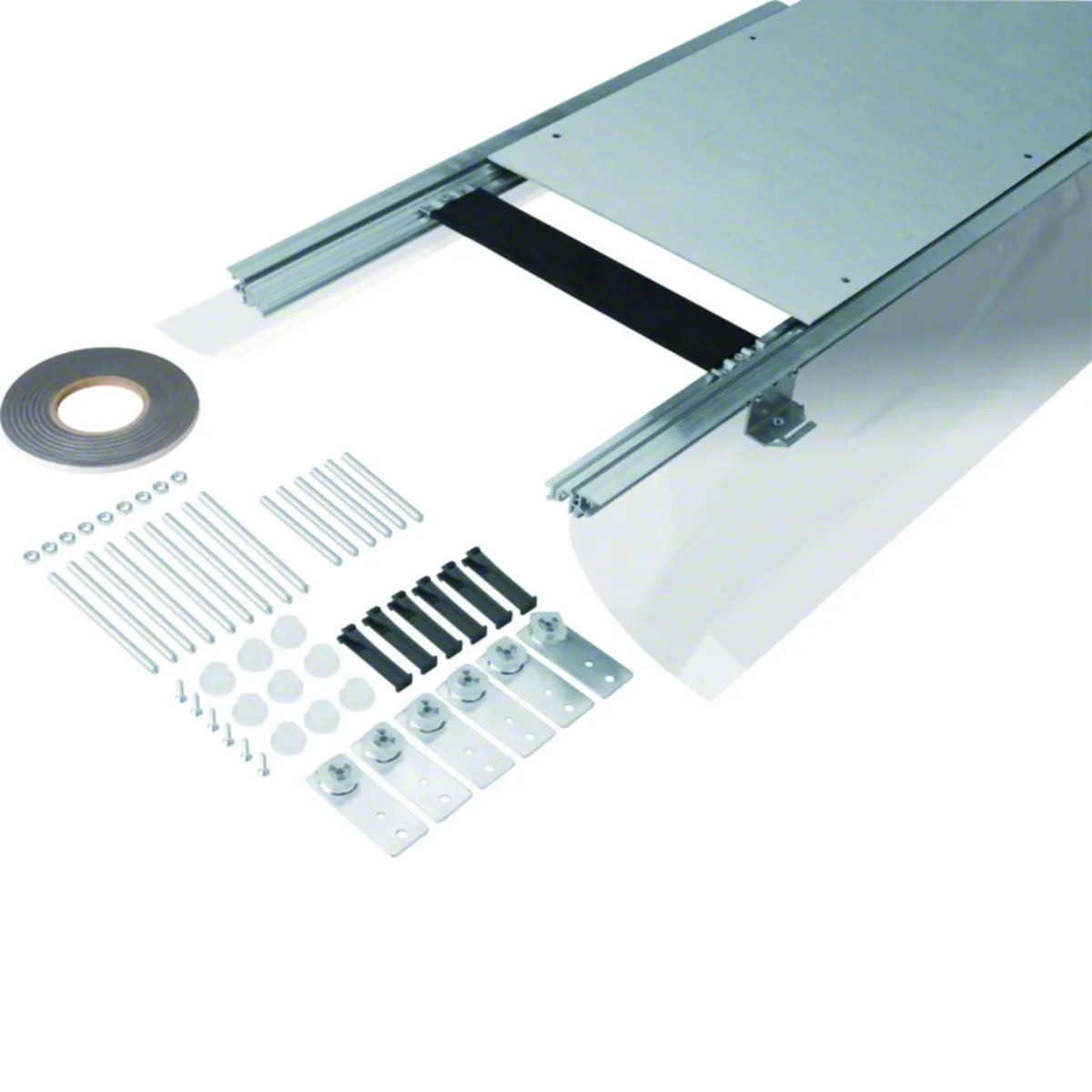

  • the channel with pre-installed covers, clamps, sound insulation, anchors, leveling elements, crossbars, sealing tape on a roll, plastic profiles
  • minimum duct depth 55 mm (when installing hinged covers, e.g. KDQ),
  • degree of protection - IP30,
  • minimum duct depth 30 mm (when 45mm soundproofing feet) standard hinged covers cannot be used.

Series characteristics:

The tehalit.BK co-horizontal duct system is used for routing cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Dane techniczne

  • Halogen free
    Yes
  • Thickness [mm]
    3
  • Material
    Galvanized steel sheet
  • Width [mm]
    400
  • Accurate color
    galvanized
  • How to use and clean the floor
    dry
  • PKWIU
    25.11.23.0
  • Length [mm]
    2400
  • Color
    Silver
  • Family
    TEHALIT.BK
  • Height [mm]
    105
  • Usable cross-section [mm²]
    54000
  • Leveling range
    105/150

Pozostałe dane techniczne

  • Width
    400 mm
  • Min. height finishing layer
    105 mm
  • Cover attachment clamping
    No
  • Cover mounting opening
    No
  • With partition panel
    No
  • Partition fixing
    Screwing
  • Bottom duct
    No
  • Surface side wall/bottom duct
    Other
  • Material thickness cover
    3 mm
  • Length
    2400 mm
  • Levelling range
    105 ... 150 mm
  • Mounting opening
    None
  • Number of provided built-in units
    3
  • Max. number of compartments
    1
  • Floor maintenance
    Dry
  • Material side wall/bottom duct
    Plastic
  • Material cover
    Steel
  • Decoupling possibility base from main body
    Yes

Opakowania zbiorcze

Rodzaj opakowania Karton Paleta
Ilość 1 szt. 10 szt. 15 szt.
Waga (kg) 14,467 34,723 530,000
Szerokość (m) 0,416 - 0,800
Długość (m) 0,060 - 1,000
Głębokość (m) 1,000 2,400 2,500
