Name: TEHALIT.BK Co-horizontal channel side protective foil BKFD 300x(105-150) steel
Brand: TEHALIT
SKU: TKM463TEHA
Price: 486.58 PLN

Co-horizontal trunkingfor trunking system with side cover foil for damp-cleaned floors BKFD, series tehalit.BK.

standard the sides of the channel are equipped with a flexible protective film so that the screed does not flow into the channel,

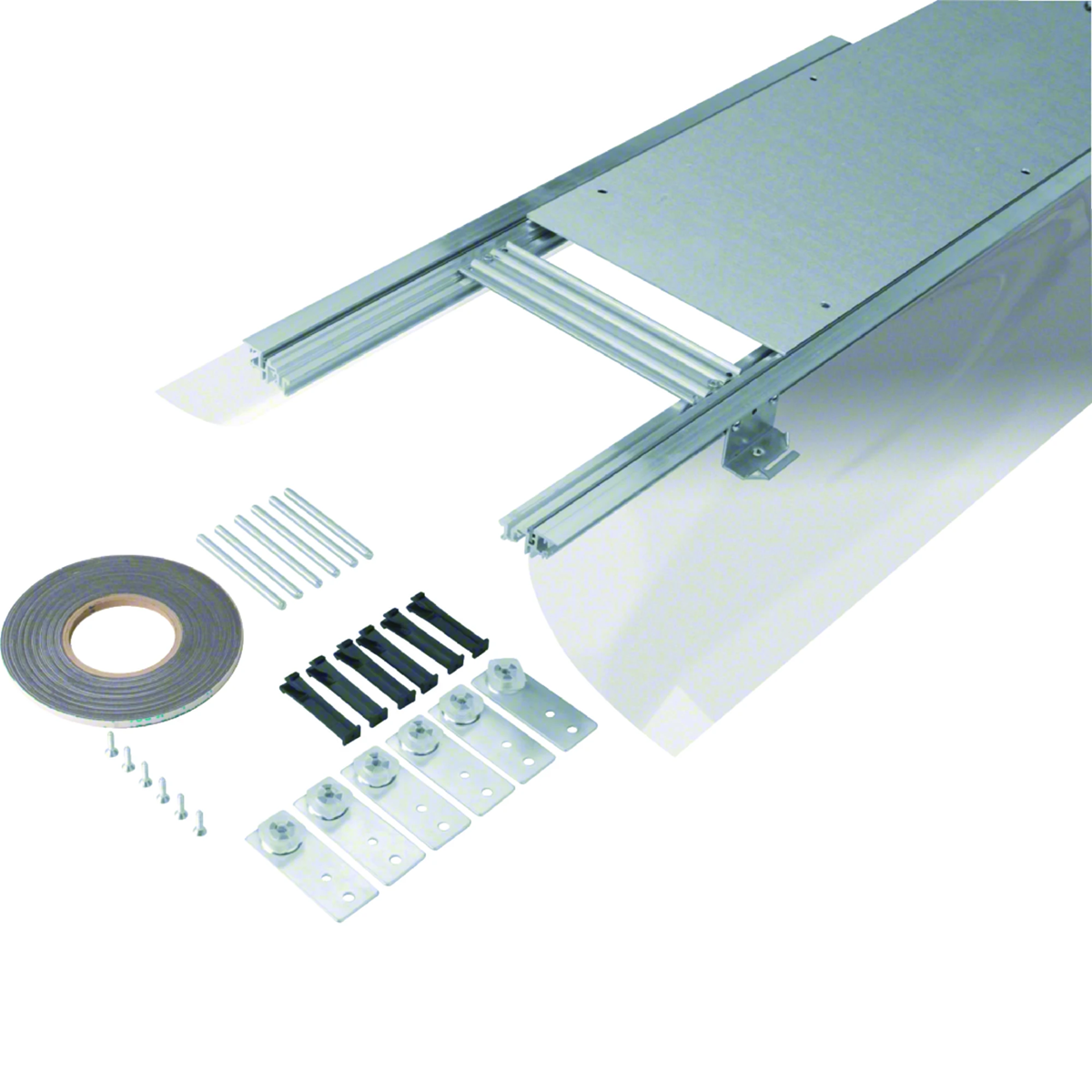

the channel with pre-installed covers, clamps, sound insulation, anchors, leveling elements, crossbars, sealing tape on a roll, plastic profiles
minimum duct depth 55 mm (when installing hinged covers, e.g. KDQ),
degree of protection - IP30,
minimum duct depth 30 mm (when using 45mm soundproofing feet) standard hinged covers cannot be used.

Series characteristics:

The tehalit.BK co-horizontal duct system is used for routing cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Halogen free

Yes
Thickness [mm]

3
Material

Galvanized steel sheet
Width [mm]

300
Accurate color

galvanized
How to use and clean the floor

dry
PKWIU

25.11.23.0

Length [mm]

2400
Color

Silver
Family

TEHALIT.BK
Height [mm]

105
Usable cross-section [mm²]

39000

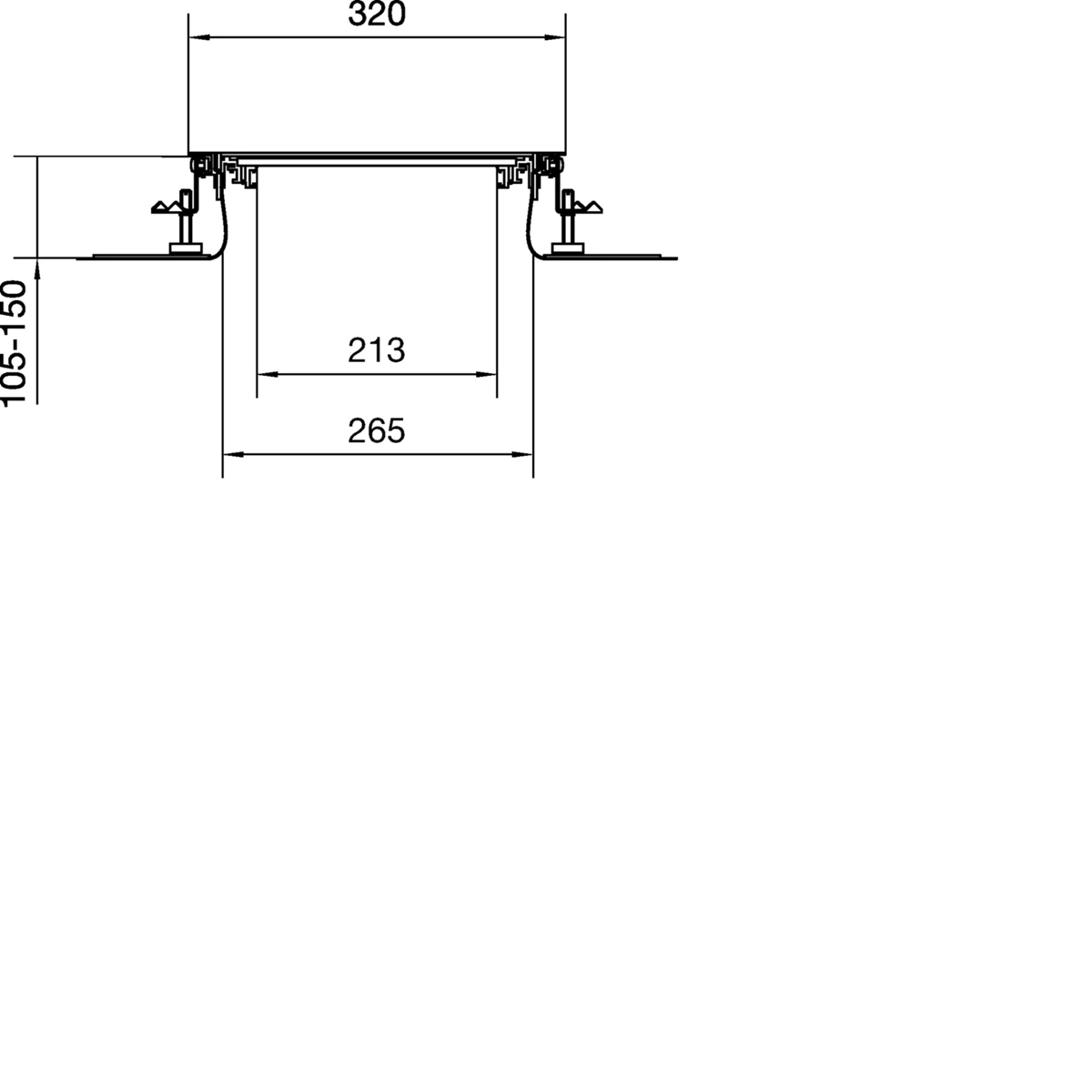

Leveling range

105/150

Other technical data

Width

300 mm
Min. height finishing layer

105 mm
Cover attachment clamping

No
Cover mounting opening

No
With partition panel

No
Partition fixing

Screwing
Bottom duct

No
Surface side wall/bottom duct

Other
Material thickness cover

3 mm

Length

2400 mm
Levelling range

105 ... 150 mm
Mounting opening

None
Number of provided built-in units

3
Max. number of compartments

1
Floor maintenance

Dry
Material side wall/bottom duct

Plastic
Material cover

Steel
Decoupling possibility base from main body

Yes

A kind of package		Karton	Paleta
Quantity	1 pcs.	10 pcs.	15 pcs.
Weight (kg)	10,572	25,373	380,595
Width (m)	0,320	0,320	0,800
Length (m)	0,060	0,060	1,000
Depth (m)	1,000	2,400	2,500
