TEHALIT.BK Co-horizontal channel side protective foil BKFD 200x(65-110) steel BKFD200065

local index:
TKM454TEHA
Catalog No:
BKFD200065
EAN code:
4012002240076
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 2400
Thickness [mm]: 3
Large-size product
Price:
402,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Co-horizontal trunkingfor trunking system with side cover foil for damp-cleaned floors BKFD, series tehalit.BK.

  • standard the sides of the channel are equipped with a flexible protective foil to prevent the screed from flowing into the channel,

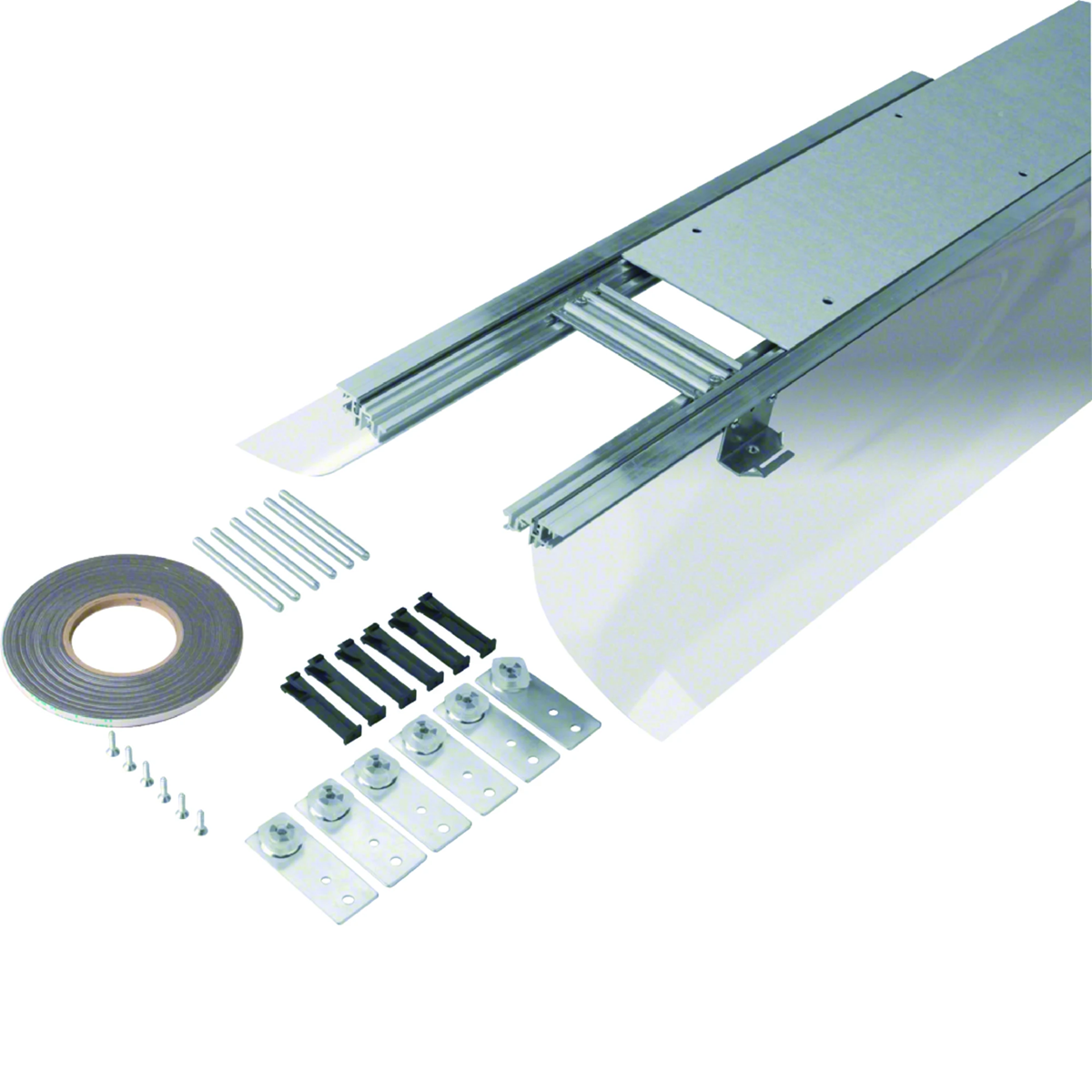

  • the channel with pre-installed covers, clamps, sound insulation, anchors, leveling elements, crossbars, sealing tape on a roll, plastic profiles
  • minimum duct depth 55 mm (when installing hinged covers, e.g. KDQ),
  • degree of protection - IP30,
  • minimum duct depth 30 mm (when 45mm soundproofing feet) standard hinged covers cannot be used.

Series characteristics:

The tehalit.BK co-horizontal duct system is used for routing cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Technical data

  • Halogen free
    Yes
  • Thickness [mm]
    3
  • Material
    Galvanized steel sheet
  • Width [mm]
    200
  • Accurate color
    galvanized
  • How to use and clean the floor
    dry
  • PKWIU
    25.11.23.0
  • Length [mm]
    2400
  • Color
    Silver
  • Family
    TEHALIT.BK
  • Height [mm]
    65
  • Usable cross-section [mm²]
    17600

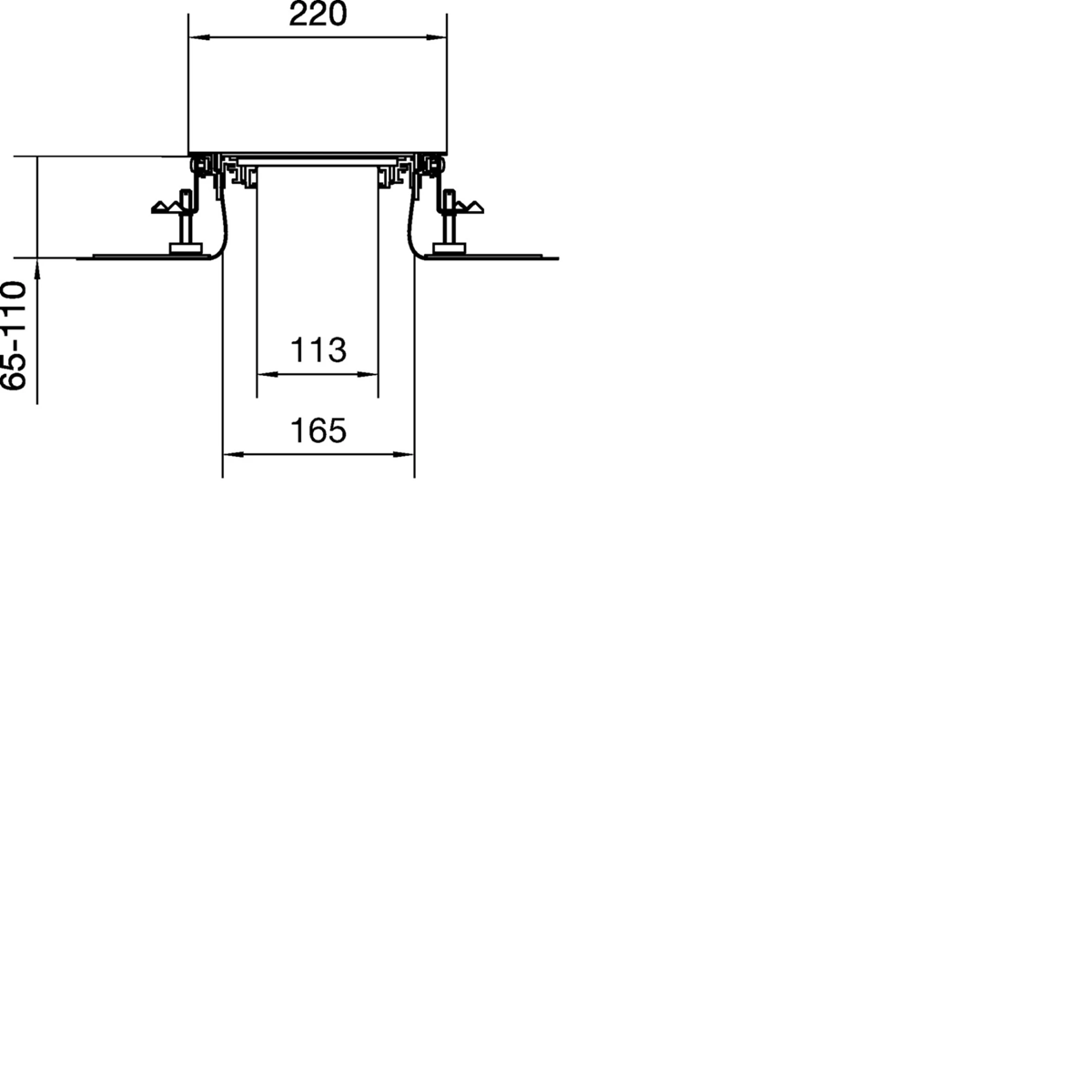

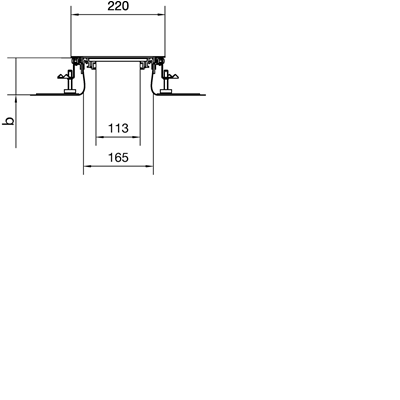

  • Leveling range
    65/110

Other technical data

  • Width
    200 mm
  • Min. height finishing layer
    65 mm
  • Cover attachment clamping
    No
  • Cover mounting opening
    No
  • Max. number of compartments
    1
  • Floor maintenance
    Dry
  • Material side wall/bottom duct
    Plastic
  • Material cover
    Steel
  • Decoupling possibility base from main body
    Yes
  • Length
    2400 mm
  • Levelling range
    65 ... 110 mm
  • Mounting opening
    None
  • With partition panel
    No
  • Partition fixing
    Screwing
  • Bottom duct
    No
  • Surface side wall/bottom duct
    Other
  • Material thickness cover
    3 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 15 pcs.
Weight (kg) 7,095 170,304 255,456
Width (m) 0,220 0,300 0,800
Length (m) 0,060 0,200 0,800
Depth (m) 1,000 2,455 2,500
