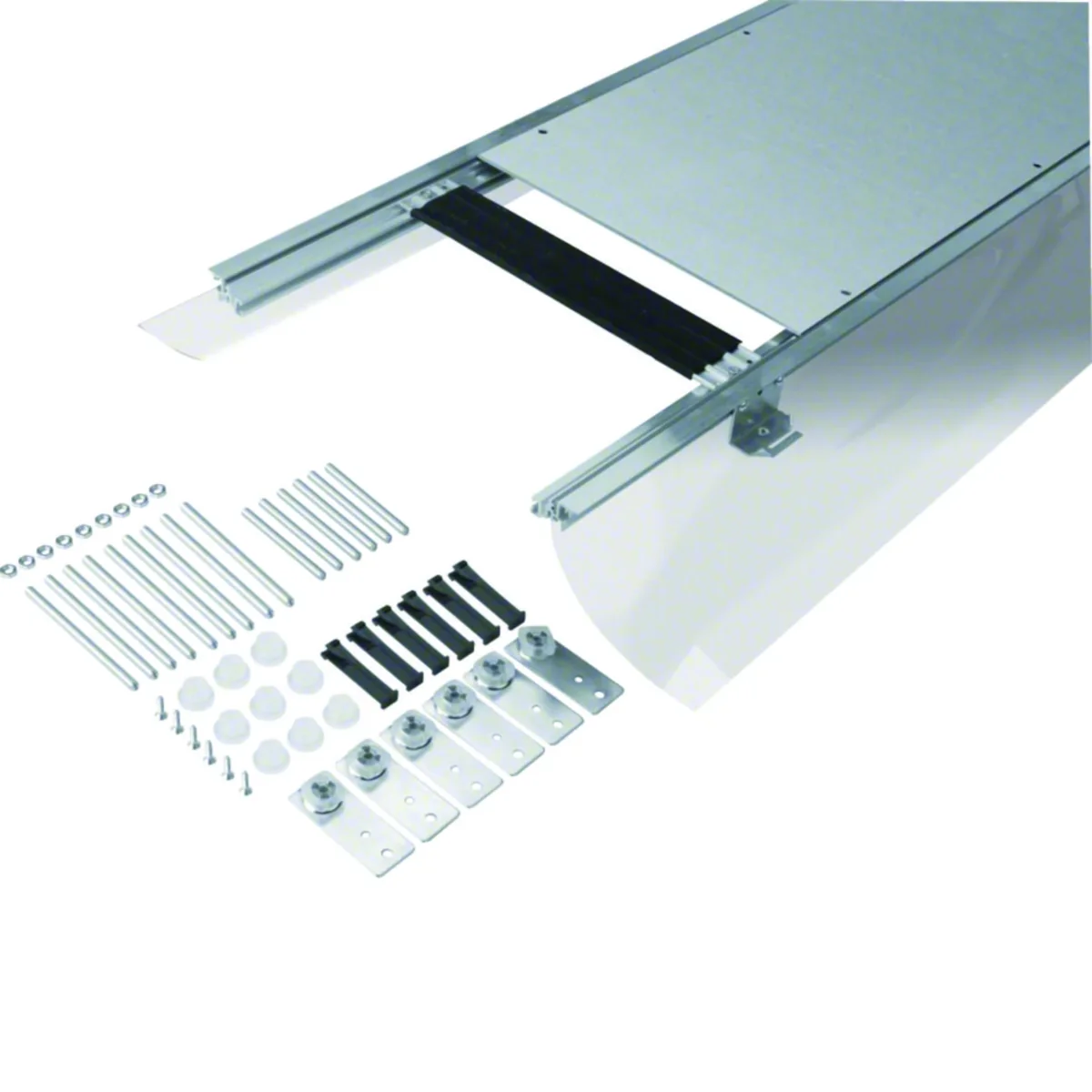

Name: TEHALIT.BK Co-horizontal channel side protective foil BKF 400x(45-70) steel
Brand: TEHALIT
SKU: TKM437TEHA
Price: 523.16 PLN

Co-horizontal trunkingfor trunking system with side cover foil for BKF dry-cleaned floors, series tehalit.BK.

standard the sides of the channel are equipped with a flexible protective film so that the screed does not flow into the channel,
the channel with pre-installed covers, clamps, sound insulation, anchors, leveling elements, crossbars, plastic profiles,
minimum duct depth 55 mm (when installing hinged covers, e.g. KDQ),
degree of protection - IP30,
minimum duct depth 30 mm (when using 45 mm soundproofing feet) none possibility of using standard hinged covers.

Series characteristics:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Halogen free

Yes
Thickness [mm]

3
Material

Galvanized steel sheet
Width [mm]

400
Accurate color

galvanized
How to use and clean the floor

dry
PKWIU

25.11.23.0

Length [mm]

2400
Color

Silver
Family

TEHALIT.BK
Height [mm]

45
Usable cross-section [mm²]

25200
Leveling range

45/70

Other technical data

Width

400 mm
Min. height finishing layer

45 mm
Cover attachment clamping

No
Cover mounting opening

No
With partition panel

No
Partition fixing

Screwing
Bottom duct

No
Surface side wall/bottom duct

Other
Material thickness cover

3 mm

Length

2400 mm
Levelling range

45 ... 70 mm
Mounting opening

None
Number of provided built-in units

3
Max. number of compartments

1
Floor maintenance

Dry
Material side wall/bottom duct

Plastic
Material cover

Steel
Decoupling possibility base from main body

Yes

A kind of package		Karton	Paleta
Quantity	1 pcs.	10 pcs.	120 pcs.
Weight (kg)	13,969	33,526	502,890
Width (m)	0,416	-	0,800
Length (m)	0,060	-	1,000
Depth (m)	1,000	2,400	2,500
