Name: TEHALIT.BK Channel end side protective foil BKFD 400x(65-110) steel
Brand: TEHALIT
SKU: TAK0B7TEHA
Price: 106.17 PLN

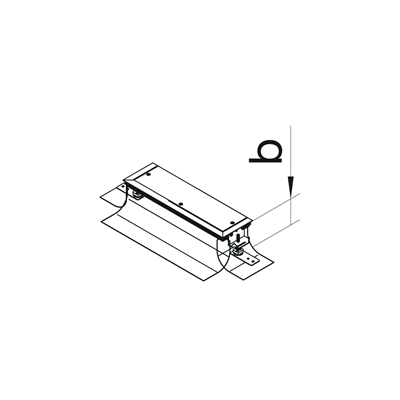

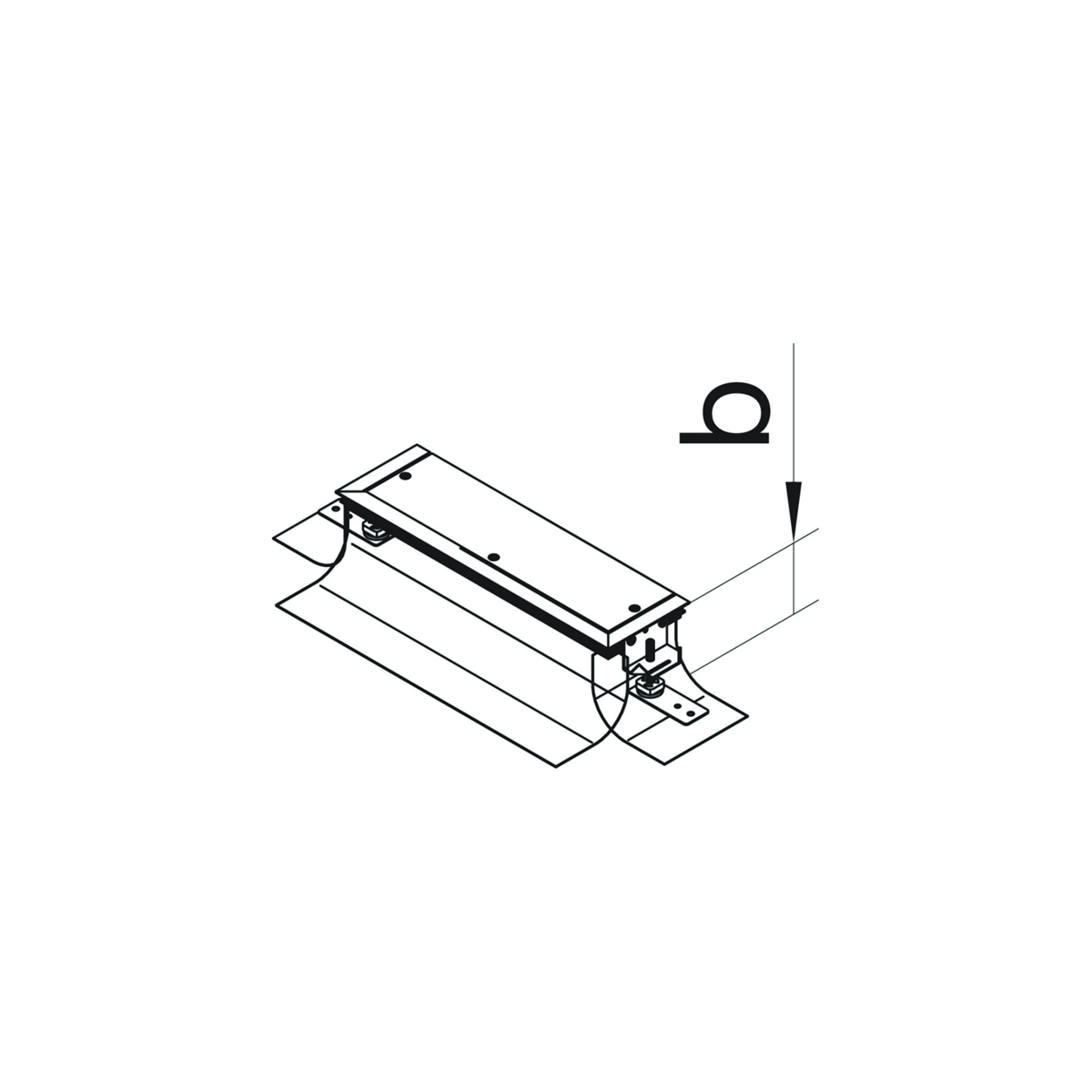

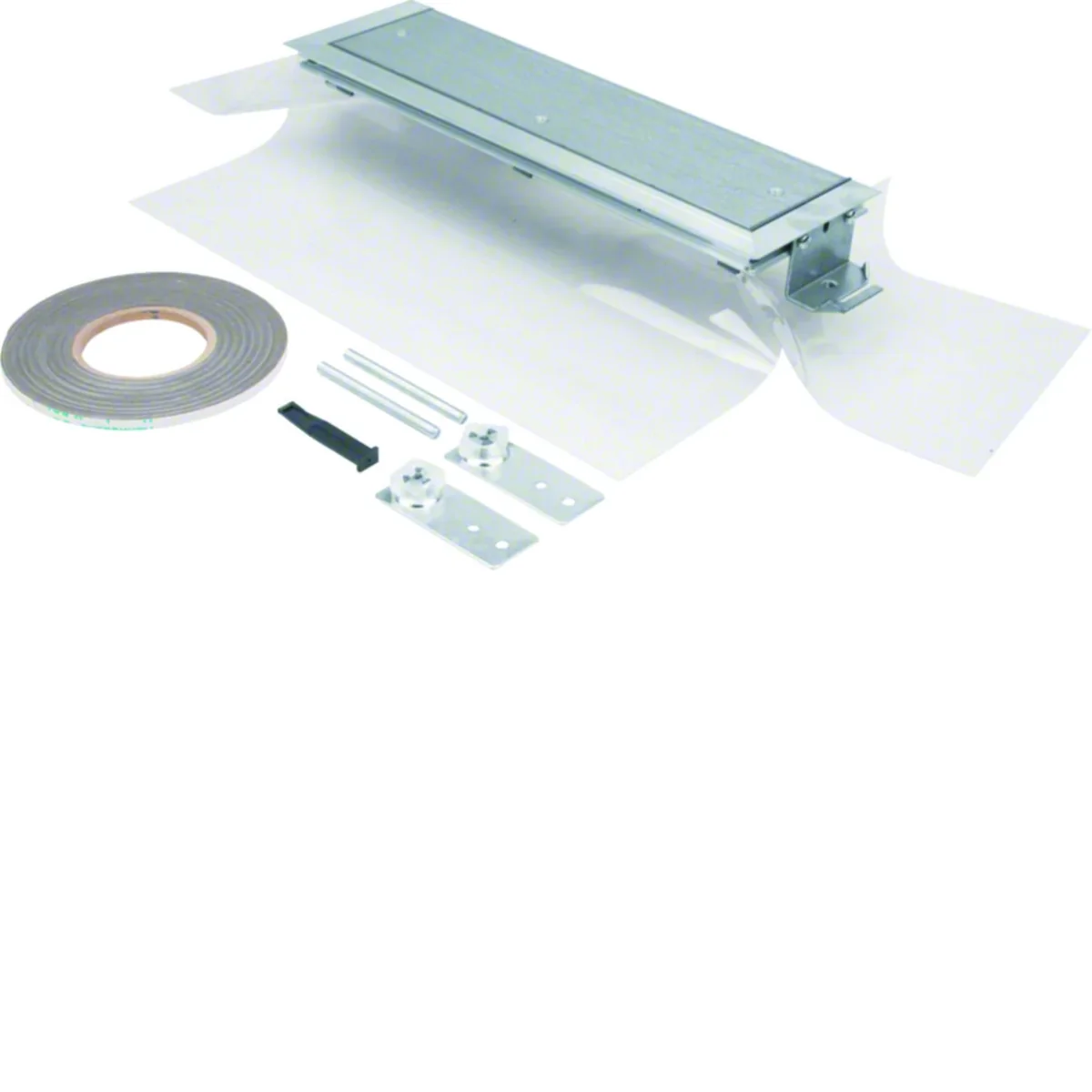

Tube end piecefor co-horizontal trunking system with side cover foil for damp-cleaned floors BKFD, series tehalit.BK. It serves as a channel closure - the tip closes the channel route; the foil protects against the screed pouring inside.

Series characteristics:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Halogen free

Yes
Color

Silver
Family

TEHALIT.BK
Height [mm]

65
Leveling range

65/110

Length [mm]

125
Material

Galvanized steel sheet
Width [mm]

400
Accurate color

galvanized
PKWIU

25.11.23.0

Other technical data

Width

400 mm
Suitable for subfloor duct overhead open

Yes
Suitable for subfloor duct overhead closed

Yes

Height

65 mm
Suitable for subfloor duct countersunk (closed)

No
Levelling range

65 ... 110 mm

A kind of package		Karton
Quantity	1 pcs.	1 pcs.
Weight (kg)	2,033	2,033
Width (m)	0,125	0,125
Length (m)	0,060	0,060
Depth (m)	0,420	0,420
