TEHALIT.BK Channel end side protective foil BKFD 300x(105-150) steel BKFDE300105

local index:
TAK0B0TEHA
Catalog No:
BKFDE300105
EAN code:
4012002240489
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 125
Color: Silver
Price:
93,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

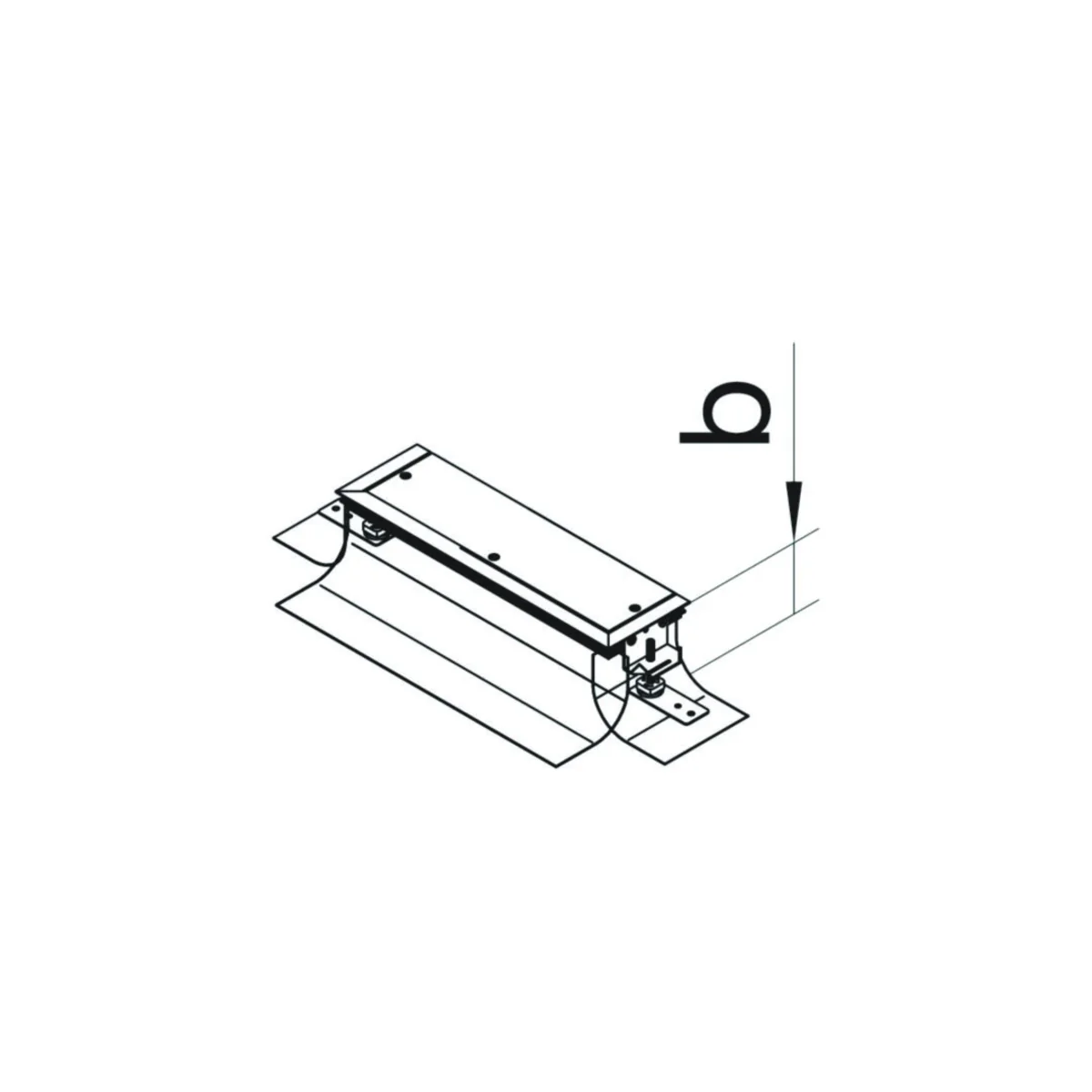

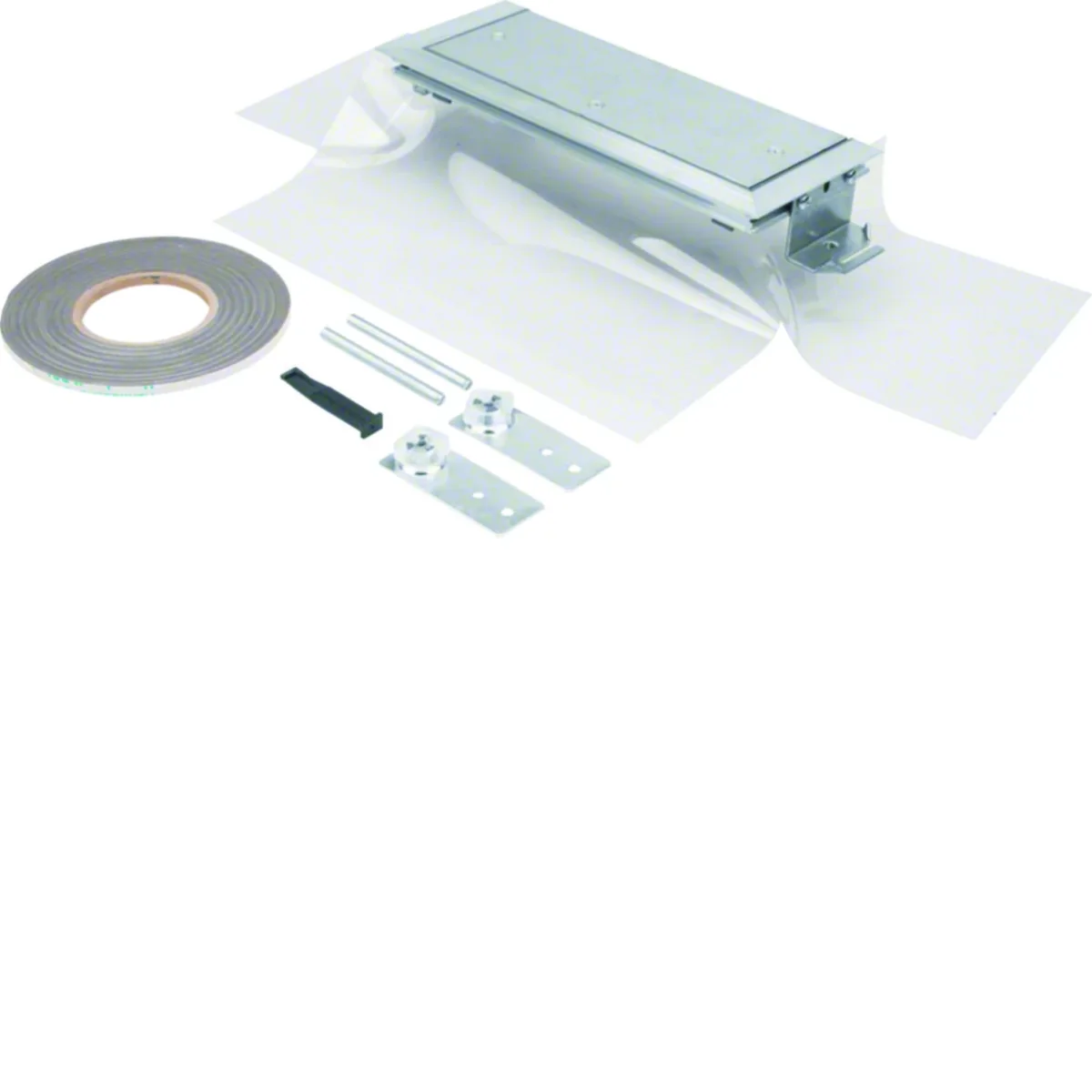

Tuct end piecefor co-horizontal trunking system with side cover foil for damp-cleaned floors BKFD, series tehalit.BK. It serves as a channel closure - the tip closes the channel route; the foil protects against the screed pouring inside.

Series characteristics:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Family
    TEHALIT.BK
  • Height [mm]
    105
  • Leveling range
    105/150
  • Length [mm]
    125
  • Material
    Galvanized steel sheet
  • Width [mm]
    300
  • Accurate color
    galvanized
  • PKWIU
    25.11.23.0

Other technical data

  • Width
    300 mm
  • Suitable for subfloor duct overhead open
    Yes
  • Suitable for subfloor duct overhead closed
    Yes
  • Height
    105 mm
  • Suitable for subfloor duct countersunk (closed)
    No
  • Levelling range
    105 ... 150 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 72 pcs.
Weight (kg) 1,606 1,606 115,632
Width (m) 0,125 0,125 0,800
Length (m) 0,060 0,060 1,200
Depth (m) 0,320 0,320 1,200
