TEHALIT.BK Channel end side protective foil BKFD 200x(105-150) steel BKFDE200105

local index:
TAK0A2TEHA
Catalog No:
BKFDE200105
EAN code:
4012002240403
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 125
Color: Silver
Price:
87,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

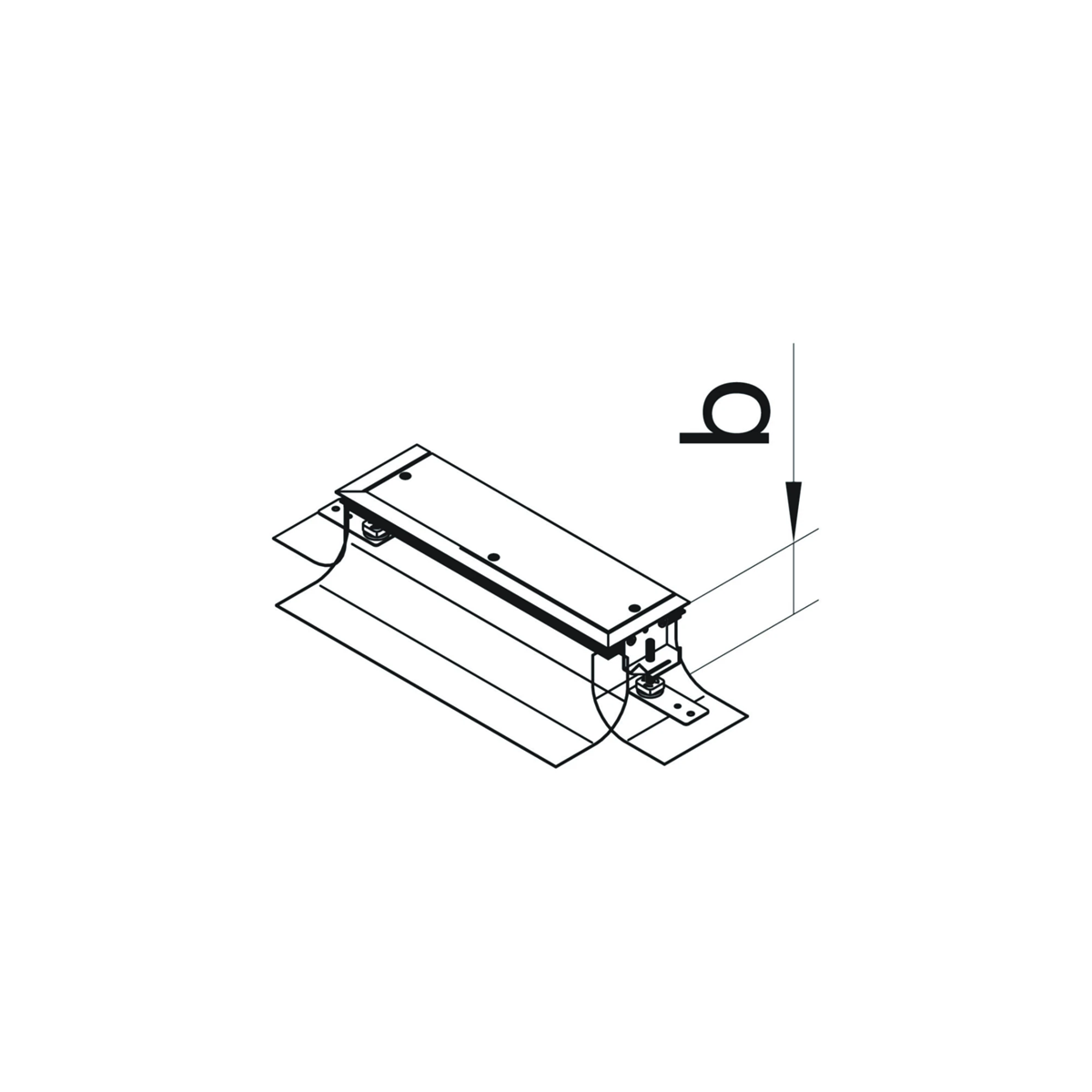

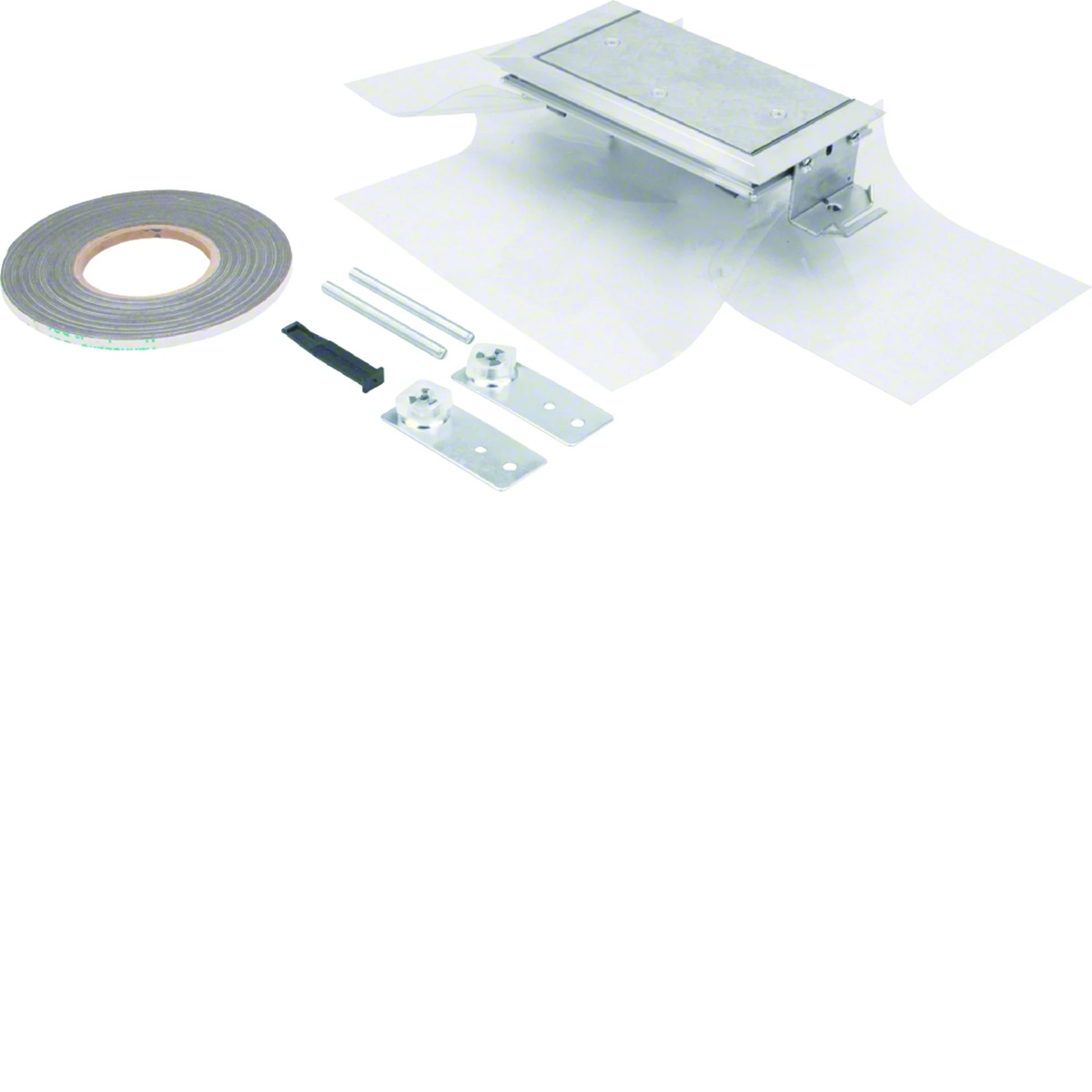

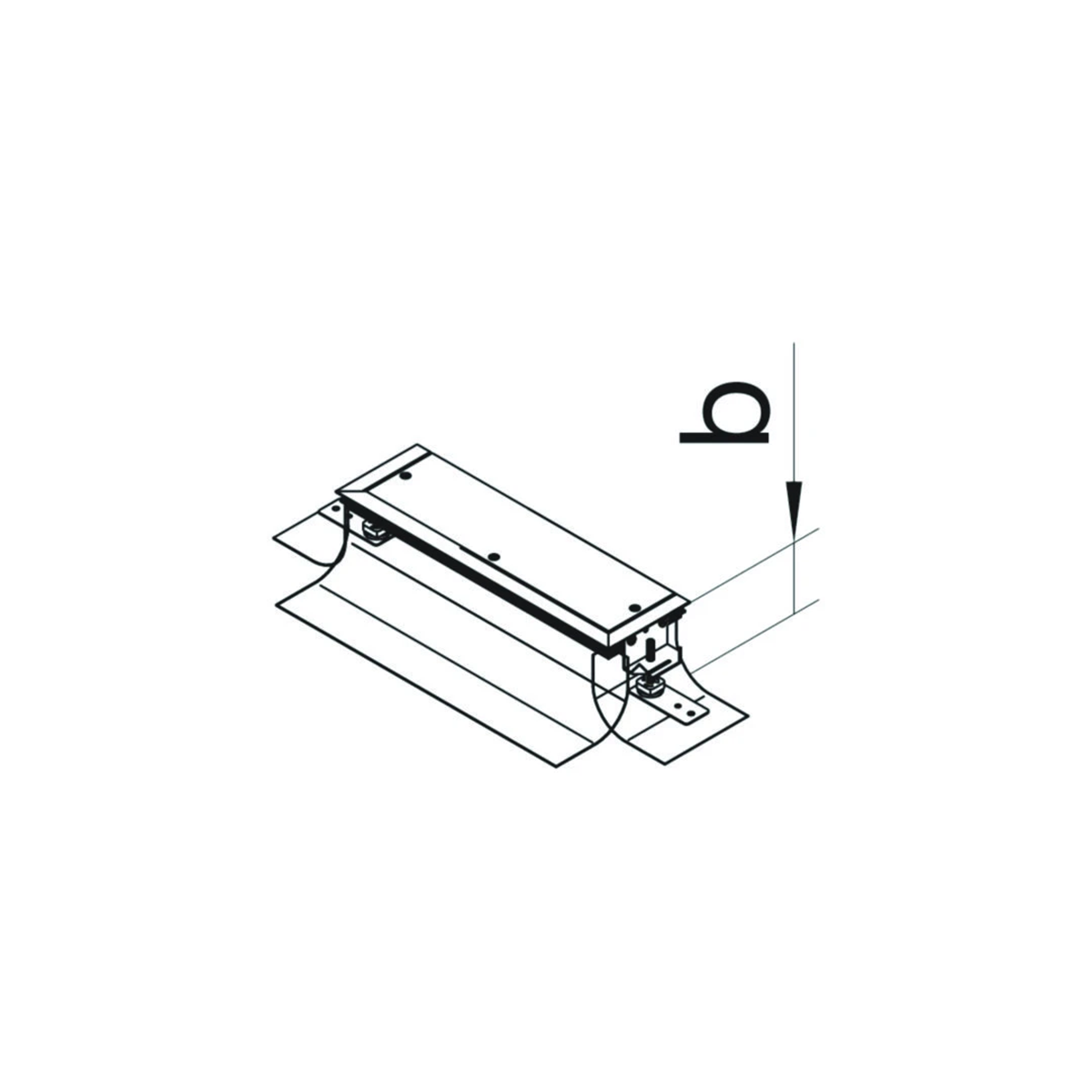

Tuct end piecefor co-horizontal trunking system with side cover foil for damp-cleaned floors BKFD, series tehalit.BK. It serves as a channel closure - the tip closes the channel route; the foil protects against the screed pouring inside.

Series characteristics:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Family
    TEHALIT.BK
  • Height [mm]
    105
  • Leveling range
    105/150
  • Length [mm]
    125
  • Material
    Galvanized steel sheet
  • Width [mm]
    200
  • Accurate color
    galvanized
  • PKWIU
    25.11.23.0

Other technical data

  • Width
    200 mm
  • Suitable for subfloor duct overhead open
    Yes
  • Suitable for subfloor duct overhead closed
    Yes
  • Height
    105 mm
  • Suitable for subfloor duct countersunk (closed)
    No
  • Levelling range
    105 ... 150 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 100 pcs.
Weight (kg) 1,248 1,248 124,800
Width (m) 0,125 0,125 -
Length (m) 0,060 0,060 -
Depth (m) 0,220 0,220 -
