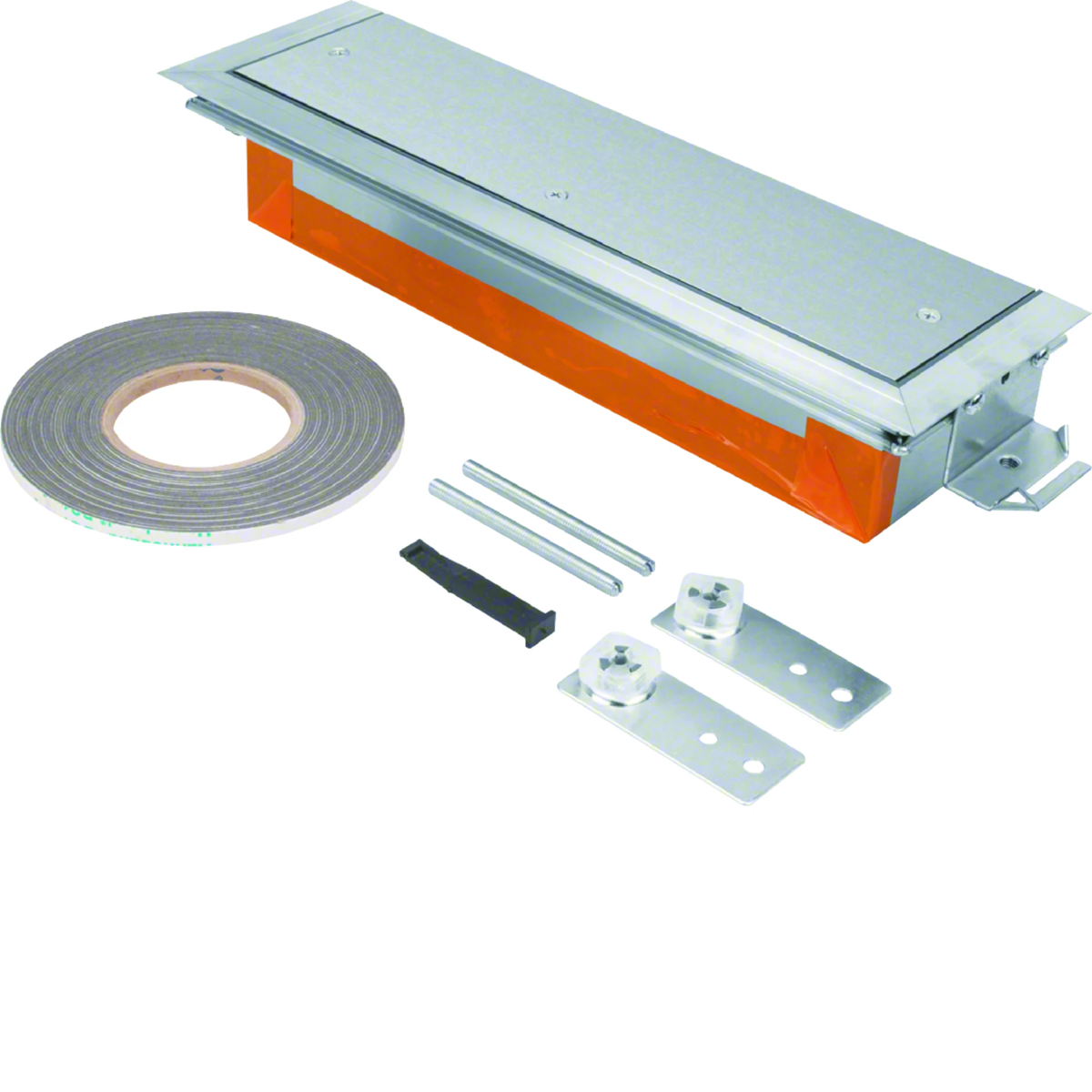

Name: TEHALIT.BK Channel end piece steel tub BKWD 400x(80-120) steel
Brand: TEHALIT
SKU: TAK0I4TEHA
Price: 132.04 PLN

Channel end piecefor co-horizontal duct system with bottom tub for damp-cleaned floors BKWD, series tehalit.BK.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Halogen free

Yes
Color

Silver
Family

TEHALIT.BK
Height [mm]

80
Leveling range

80/120

Length [mm]

215
Material

Galvanized steel sheet
Width [mm]

400
Accurate color

galvanized
PKWIU

25.99.29.0

Other technical data

Width

400 mm
Suitable for subfloor duct overhead open

Yes
Suitable for subfloor duct overhead closed

Yes

Height

80 mm
Suitable for subfloor duct countersunk (closed)

No
Levelling range

80 ... 120 mm

A kind of package		Karton
Quantity	1 pcs.	1 pcs.
Weight (kg)	2,663	2,663
Width (m)	0,125	0,125
Length (m)	0,080	0,080
Depth (m)	0,420	0,420
