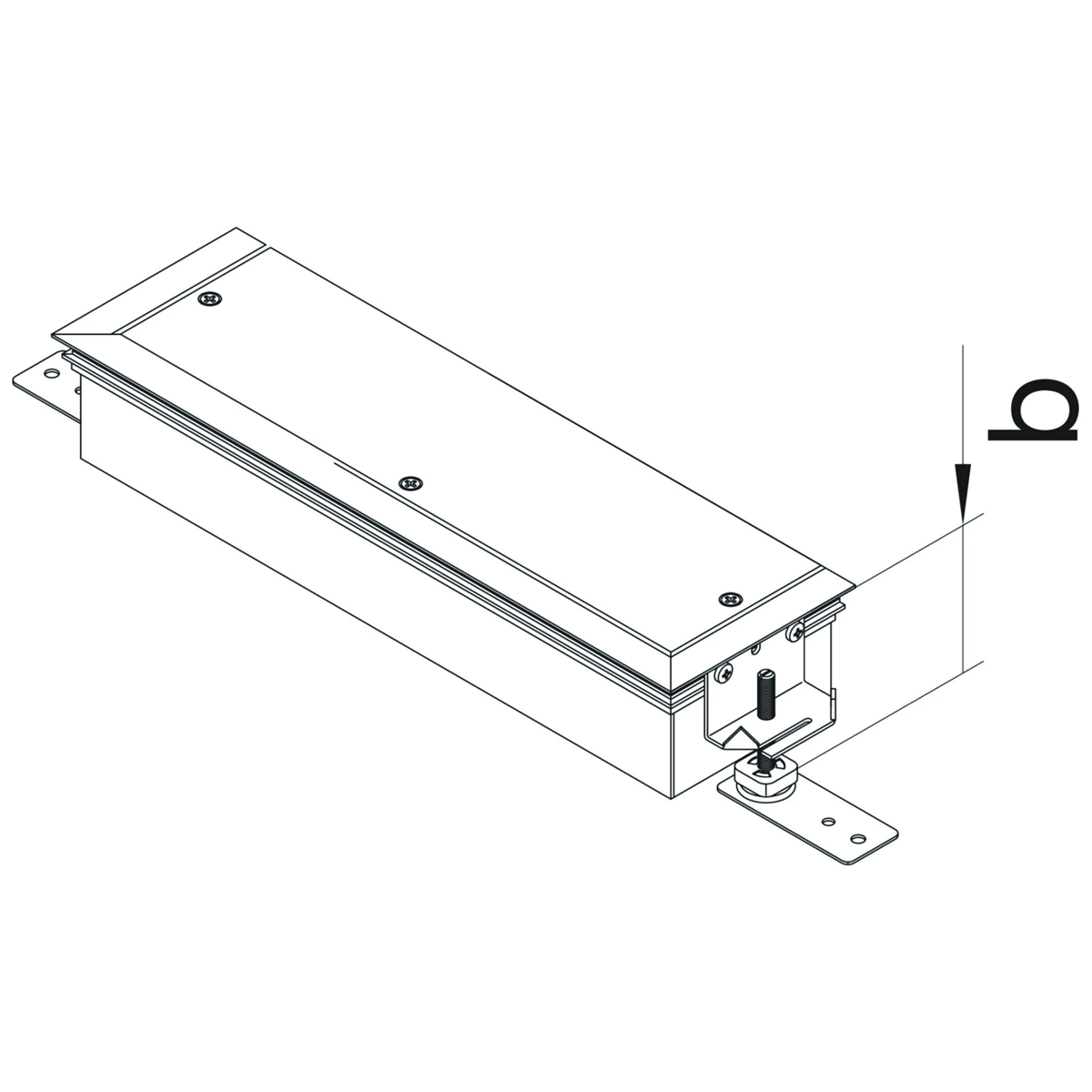

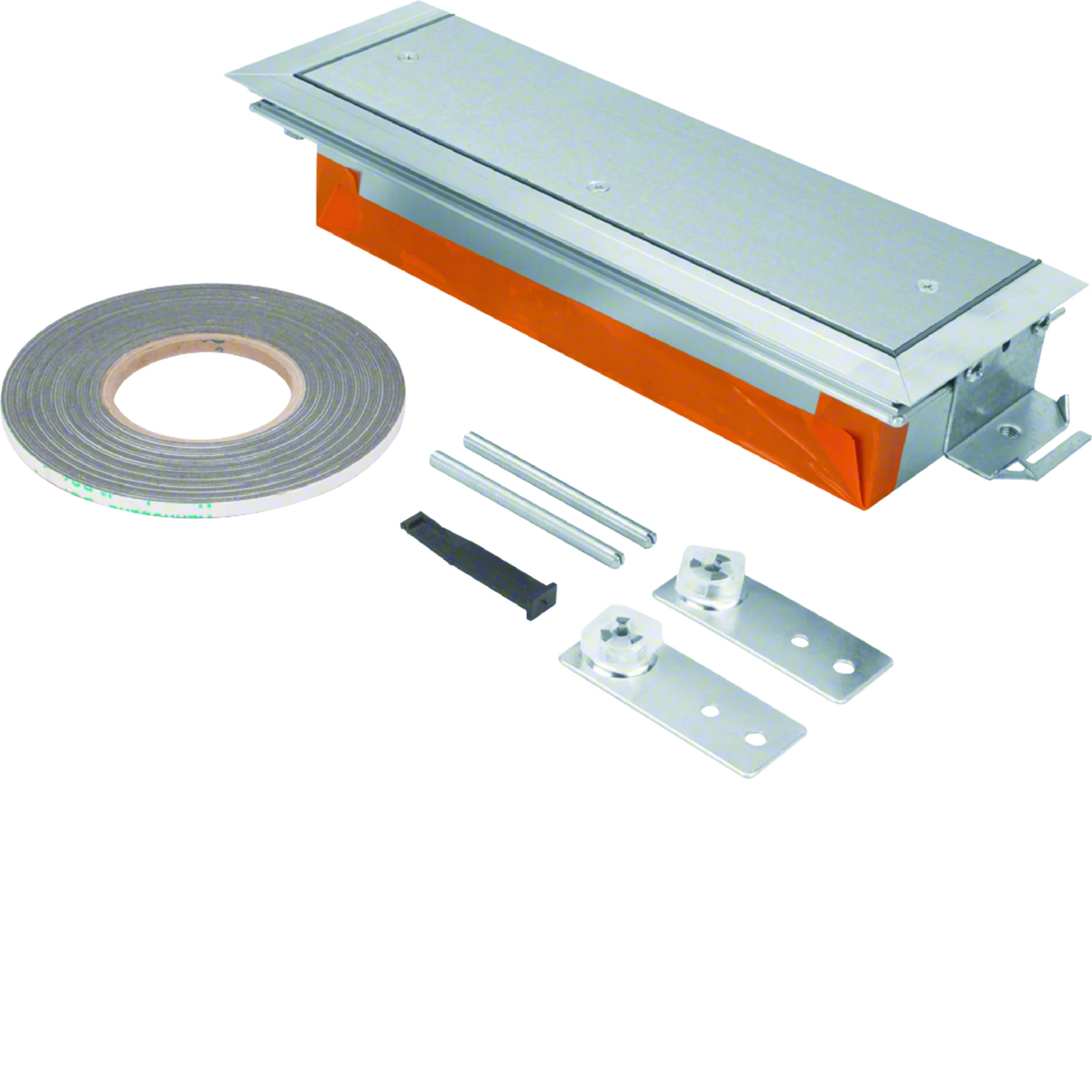

Name: TEHALIT.BK Channel end piece steel tub BKWD 300x(90-130) steel
Brand: TEHALIT
SKU: TAK0H7TEHA
Price: 121.66 PLN

Channel end piecefor co-horizontal duct system with bottom tub for damp-cleaned floors BKWD, tehalit.BK series.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Halogen free

Yes
Color

Silver
Family

TEHALIT.BK
Height [mm]

90
Leveling range

90/130

Length [mm]

215
Material

Galvanized steel sheet
Width [mm]

300
Accurate color

galvanized
PKWIU

25.99.29.0

Other technical data

Width

300 mm
Suitable for subfloor duct overhead open

Yes
Suitable for subfloor duct overhead closed

Yes

Height

90 mm
Suitable for subfloor duct countersunk (closed)

No
Levelling range

90 ... 130 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	90 pcs.
Weight (kg)	0,833	2,504	225,360
Width (m)	0,063	0,340	0,800
Length (m)	0,007	0,270	1,200
Depth (m)	0,358	0,340	1,200
