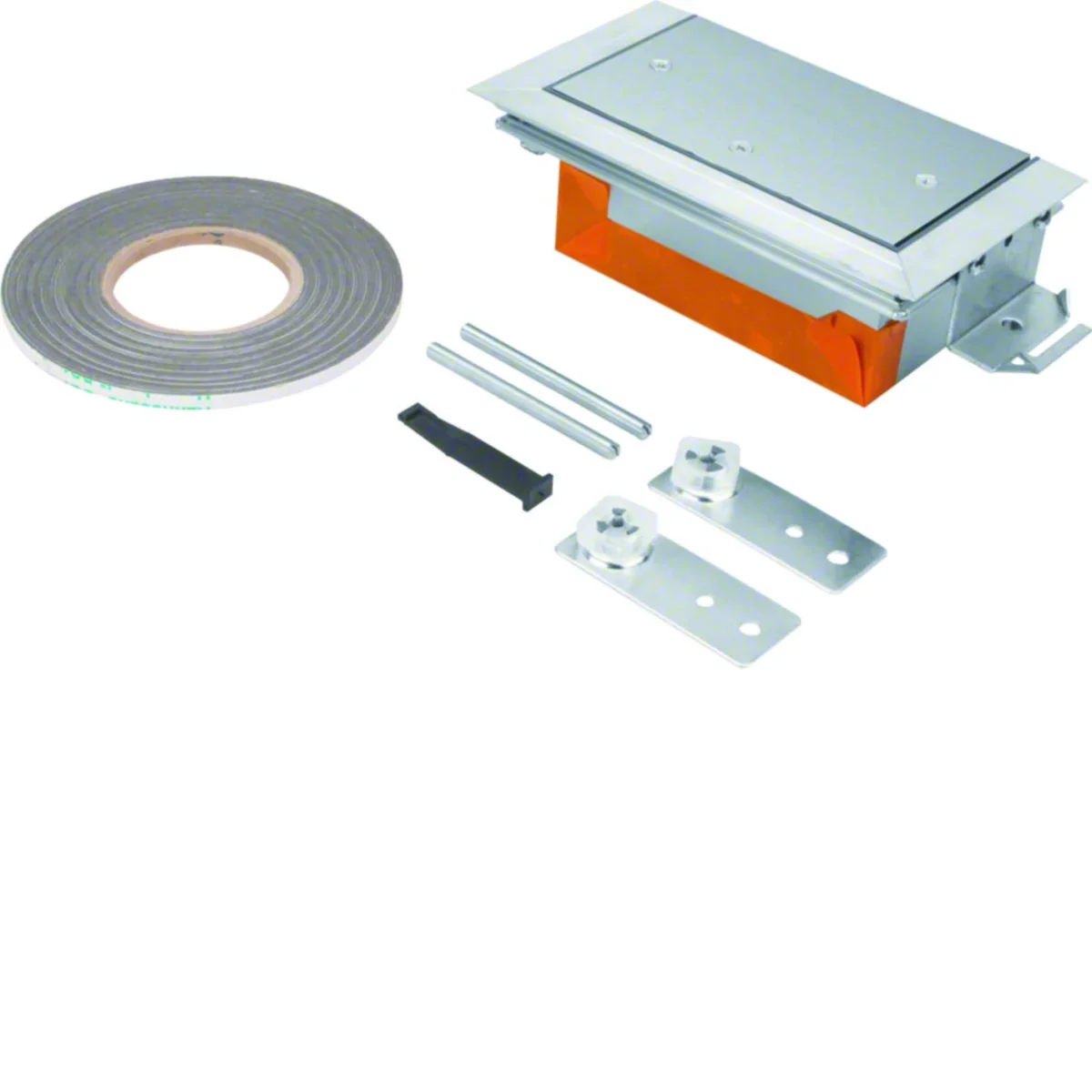

Name: TEHALIT.BK Channel end piece steel tub BKWD 200x(70-110) steel
Brand: TEHALIT
SKU: TAK0G7TEHA
Price: 108.25 PLN

Channel end piecefor co-horizontal duct system with bottom tub for damp-cleaned floors BKWD, series tehalit.BK.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Halogen free

Yes
Color

Silver
Family

TEHALIT.BK

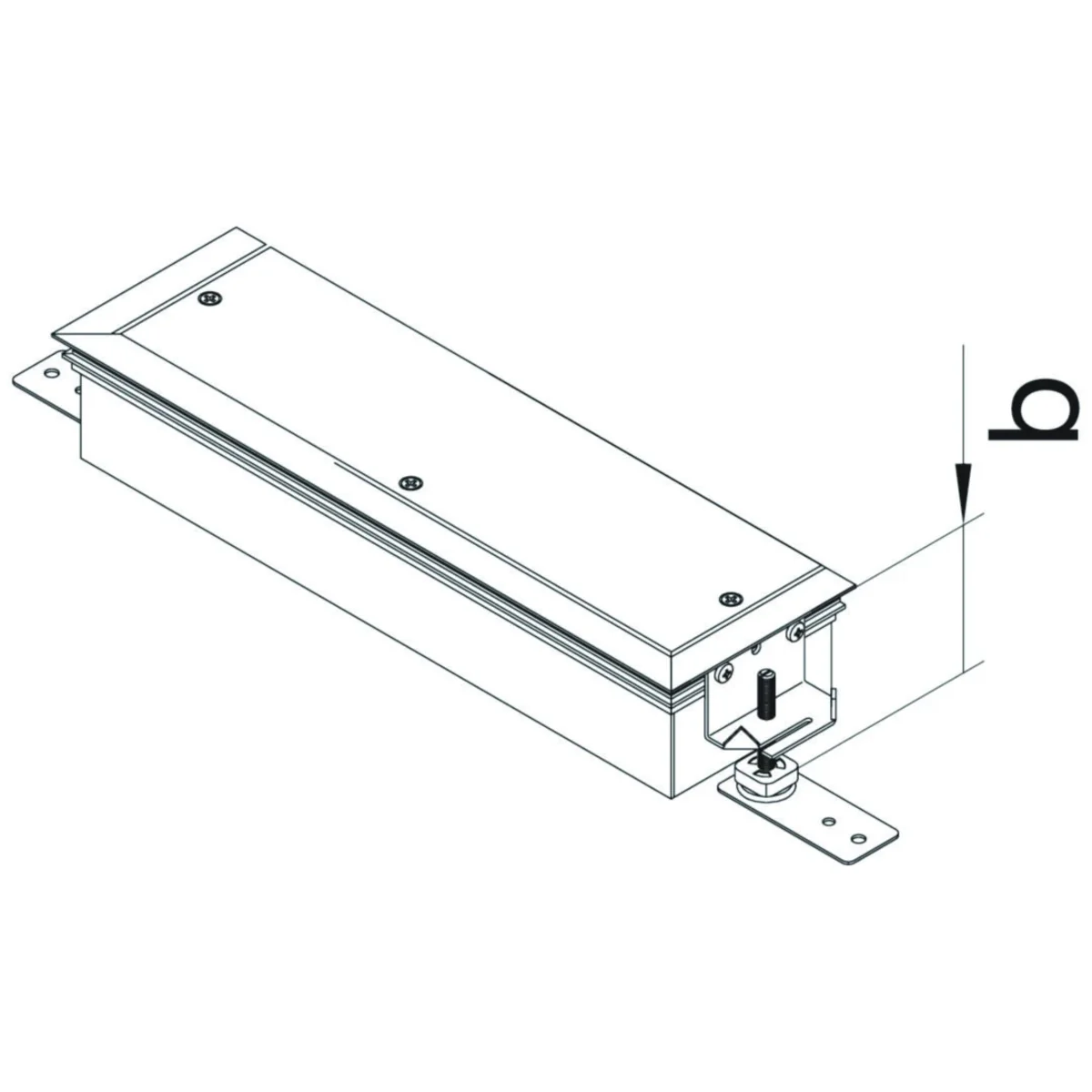

Height [mm]

70
Leveling range

70/110

Length [mm]

215
Material

Galvanized steel sheet
Width [mm]

200
Accurate color

galvanized
PKWIU

25.99.29.0

Other technical data

Width

200 mm
Suitable for subfloor duct overhead open

Yes
Suitable for subfloor duct overhead closed

Yes

Height

70 mm
Suitable for subfloor duct countersunk (closed)

No
Levelling range

70 ... 110 mm

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	30 pcs.
Weight (kg)	1,496	1,497	69,910
Width (m)	0,125	0,125	0,800
Length (m)	0,070	0,070	1,050
Depth (m)	0,220	0,220	1,200
