TEHALIT.BK Channel end piece steel tub BKW 400x(60-100) steel BKWE400060

local index:
TAK764TEHA
Catalog No:
BKWE400060
EAN code:
4012002237793
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 125
Color: Silver
Price:
123,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

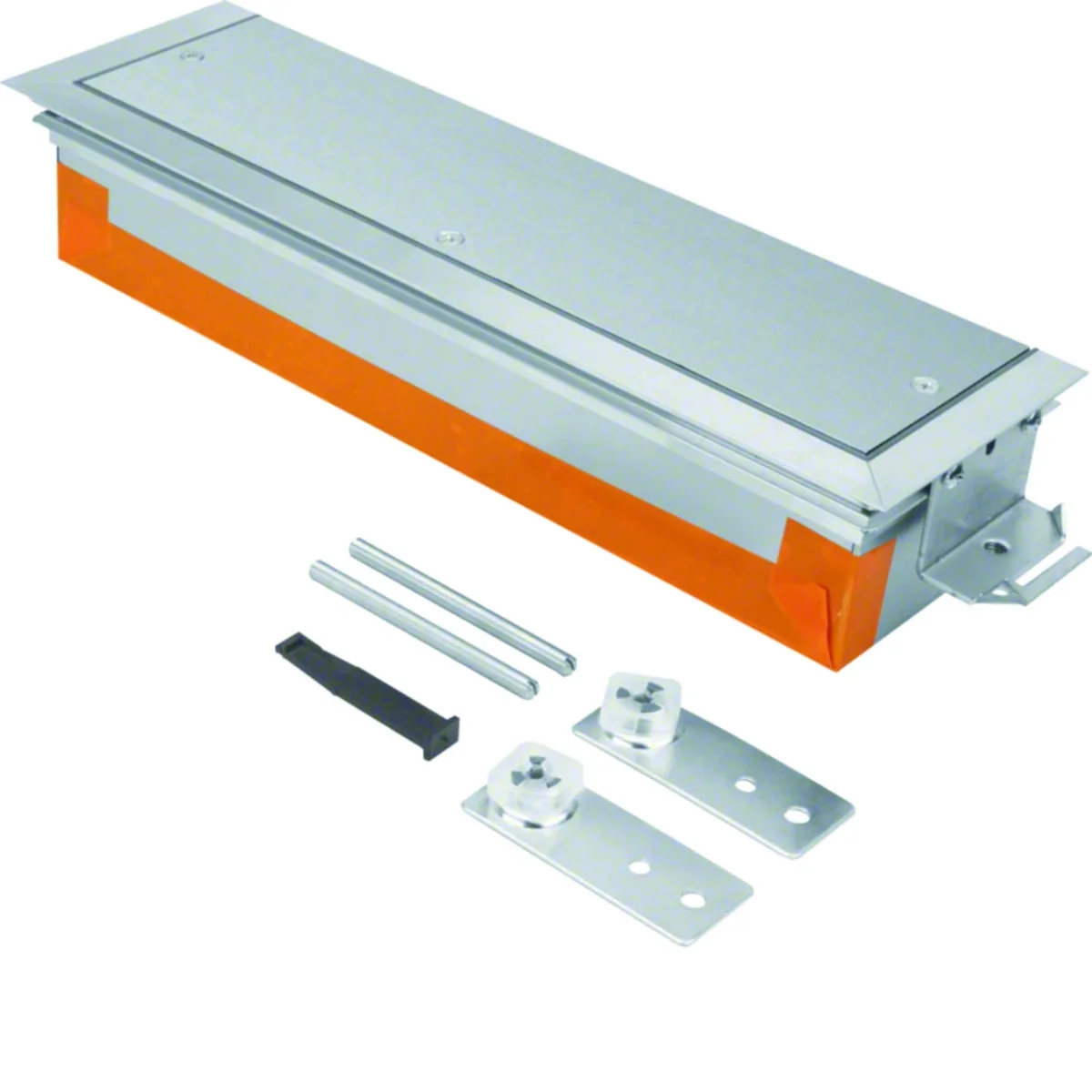

Duct end piecefor co-horizontal trunking system with bottom tub for BKW dry-cleaned floors, series tehalit.BK.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Family
    TEHALIT.BK
  • Height [mm]
    60
  • Leveling range
    60/100
  • Length [mm]
    125
  • Material
    Galvanized steel sheet
  • Width [mm]
    400
  • Accurate color
    galvanized
  • PKWIU
    25.99.29.0

Other technical data

  • Width
    400 mm
  • Suitable for subfloor duct overhead open
    Yes
  • Suitable for subfloor duct overhead closed
    Yes
  • Height
    60 mm
  • Suitable for subfloor duct countersunk (closed)
    No
  • Levelling range
    60 ... 100 mm

Bulk packaging

A kind of package Paleta
Quantity 1 pcs. 1 pcs.
Weight (kg) 2,487 2,487
Width (m) 0,124 -
Length (m) 0,058 -
Depth (m) 0,416 -
