TEHALIT.BK Channel end piece steel tub BKW 300x(80-120) steel BKWE300080

local index:
TAK758TEHA
Catalog No:
BKWE300080
EAN code:
4012002237731
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 125
Color: Silver
Price:
109,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

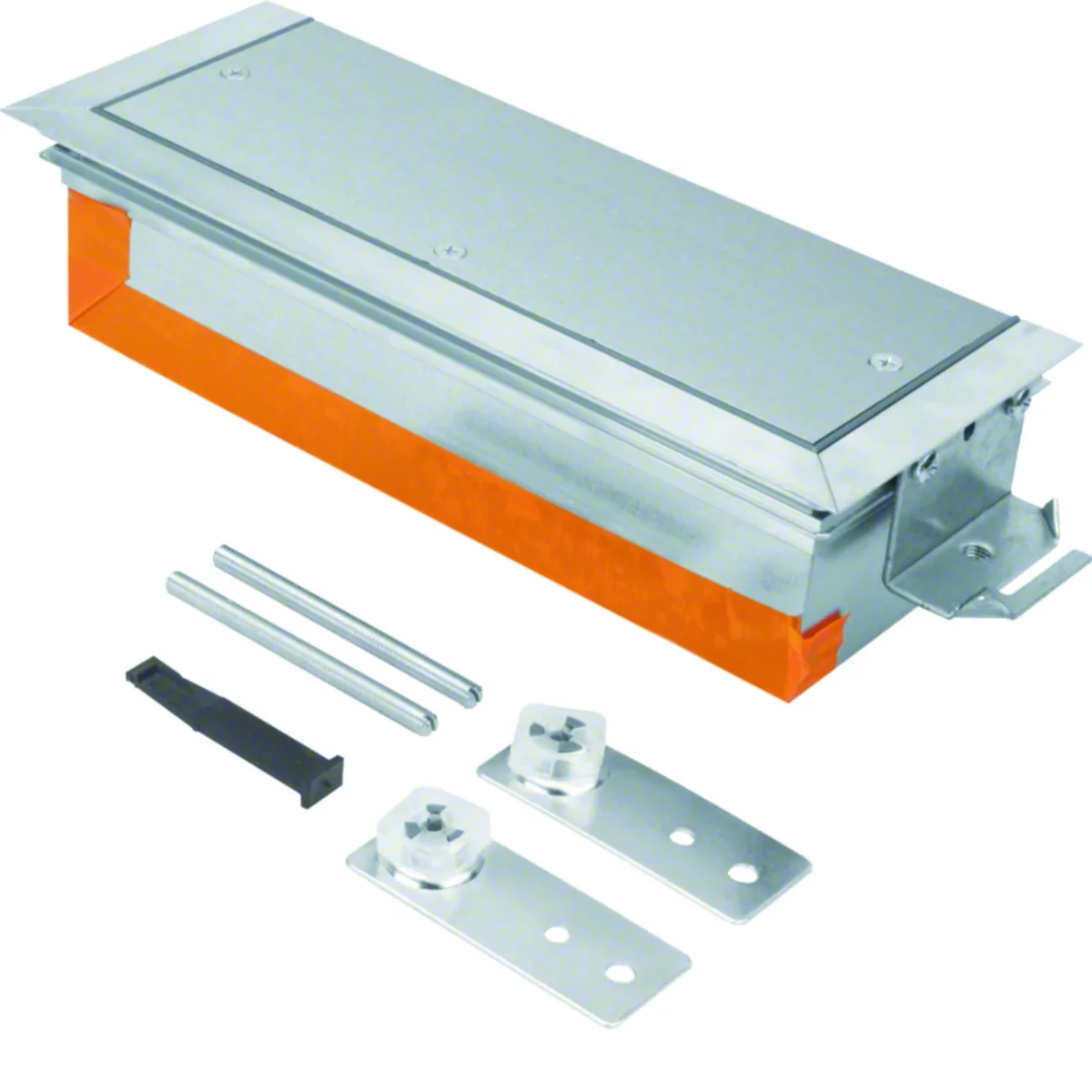

Product description

Duct end piecefor co-horizontal trunking system with bottom tub for BKW dry-cleaned floors, series tehalit.BK.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Family
    TEHALIT.BK
  • Height [mm]
    80
  • Leveling range
    80/120
  • Length [mm]
    125
  • Material
    Galvanized steel sheet
  • Width [mm]
    300
  • Accurate color
    galvanized
  • PKWIU
    25.99.29.0

Other technical data

  • Width
    300 mm
  • Suitable for subfloor duct overhead open
    Yes
  • Suitable for subfloor duct overhead closed
    Yes
  • Height
    80 mm
  • Suitable for subfloor duct countersunk (closed)
    No
  • Levelling range
    80 ... 120 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 12 pcs.
Weight (kg) 2,001 2,010 24,120
Width (m) 0,124 0,380 0,800
Length (m) 0,078 0,300 1,200
Depth (m) 0,316 0,380 1,200
