TEHALIT.BK Channel end piece steel tub BKW 300x(70-110) steel BKWE300070

local index:
TAK757TEHA
Catalog No:
BKWE300070
EAN code:
4012002237724
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 125
Color: Silver
Price:
109,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

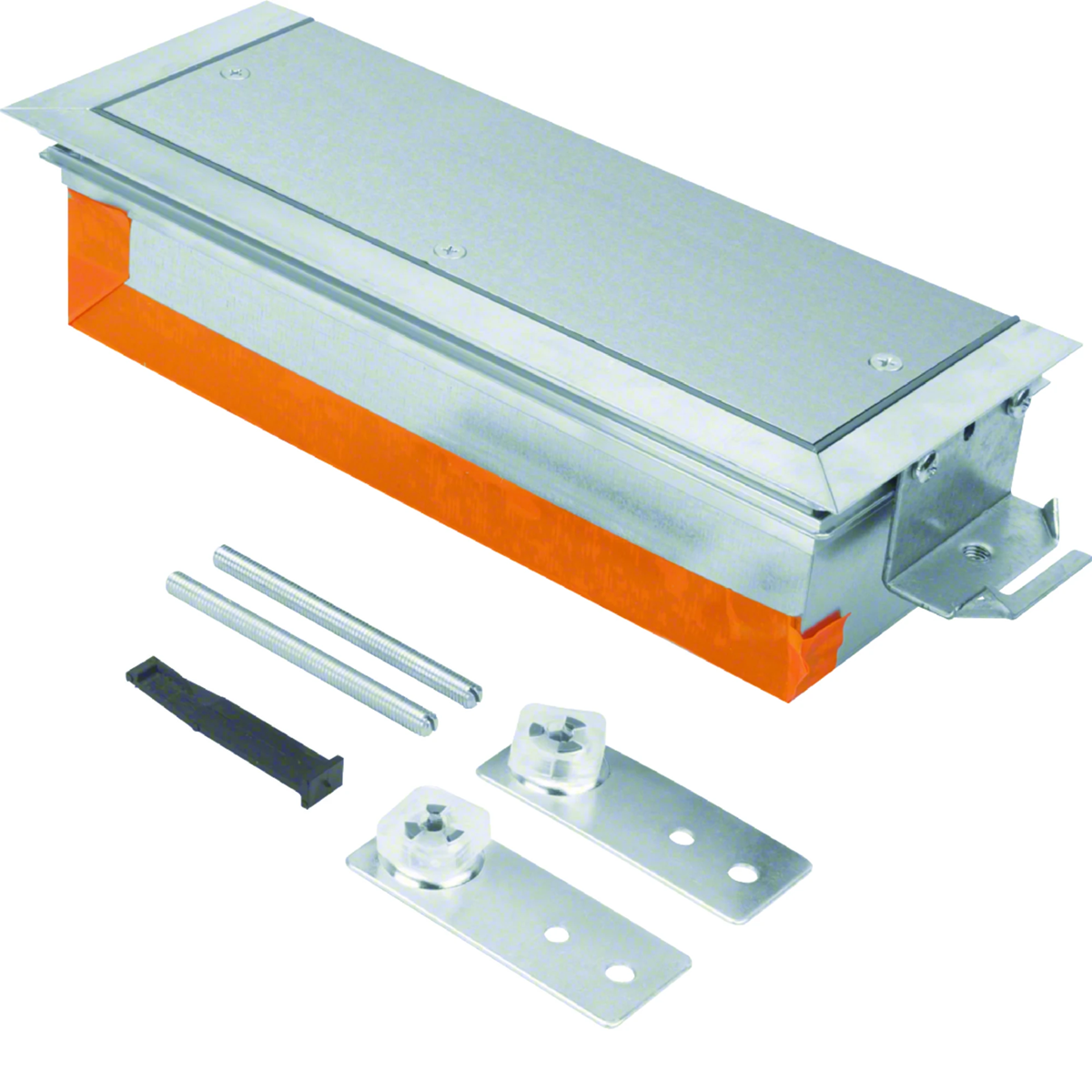

Duct end piecefor co-horizontal trunking system with bottom tub for BKW dry-cleaned floors, series tehalit.BK.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Family
    TEHALIT.BK
  • Height [mm]
    70
  • Leveling range
    70/110
  • Length [mm]
    125
  • Material
    Galvanized steel sheet
  • Width [mm]
    300
  • Accurate color
    galvanized
  • PKWIU
    25.99.29.0

Other technical data

  • Width
    300 mm
  • Suitable for subfloor duct overhead open
    Yes
  • Suitable for subfloor duct overhead closed
    Yes
  • Height
    70 mm
  • Suitable for subfloor duct countersunk (closed)
    No
  • Levelling range
    70 ... 110 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 24 pcs.
Weight (kg) 1,659 1,660 79,840
Width (m) 0,124 0,130 0,800
Length (m) 0,068 0,070 0,530
Depth (m) 0,316 0,370 1,200
