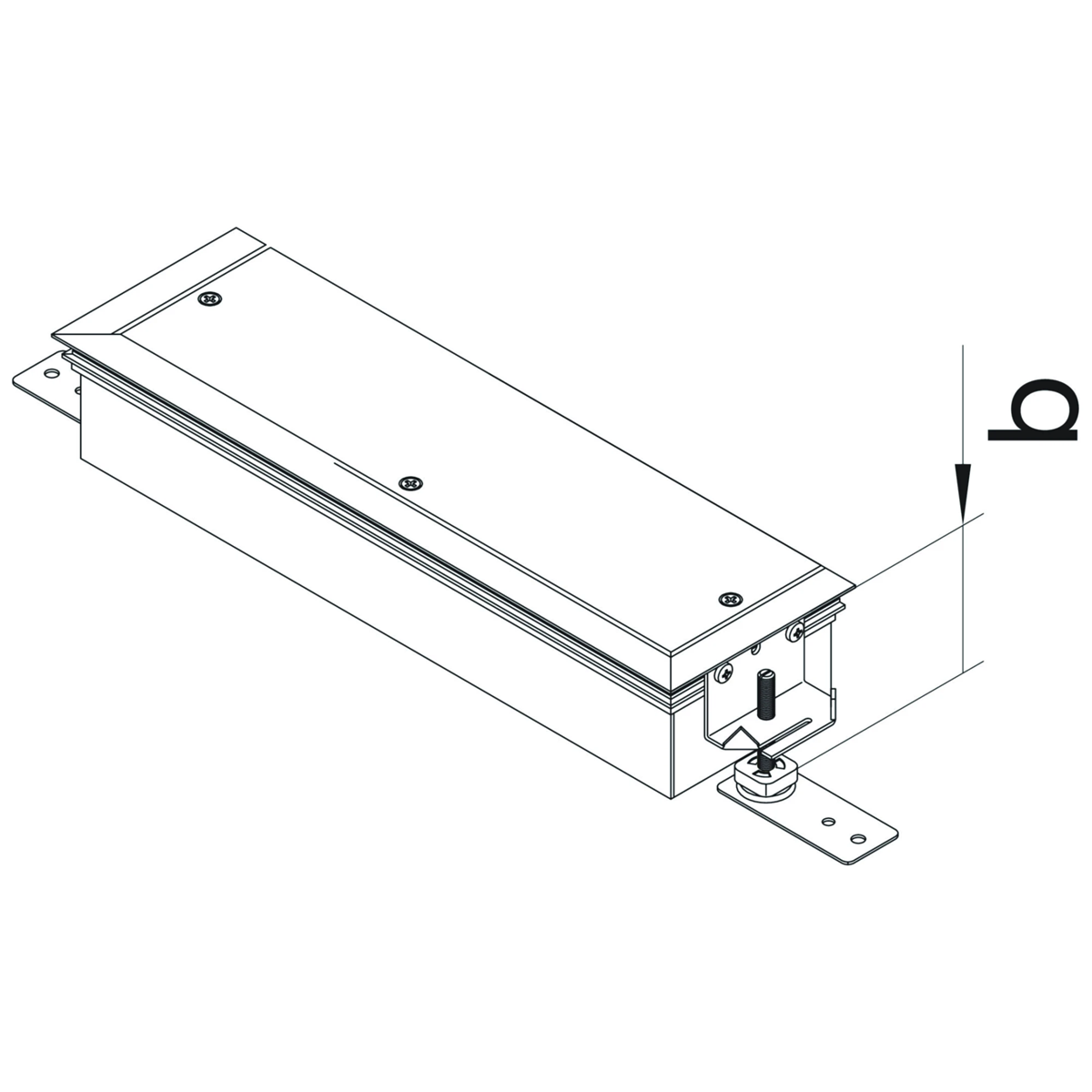

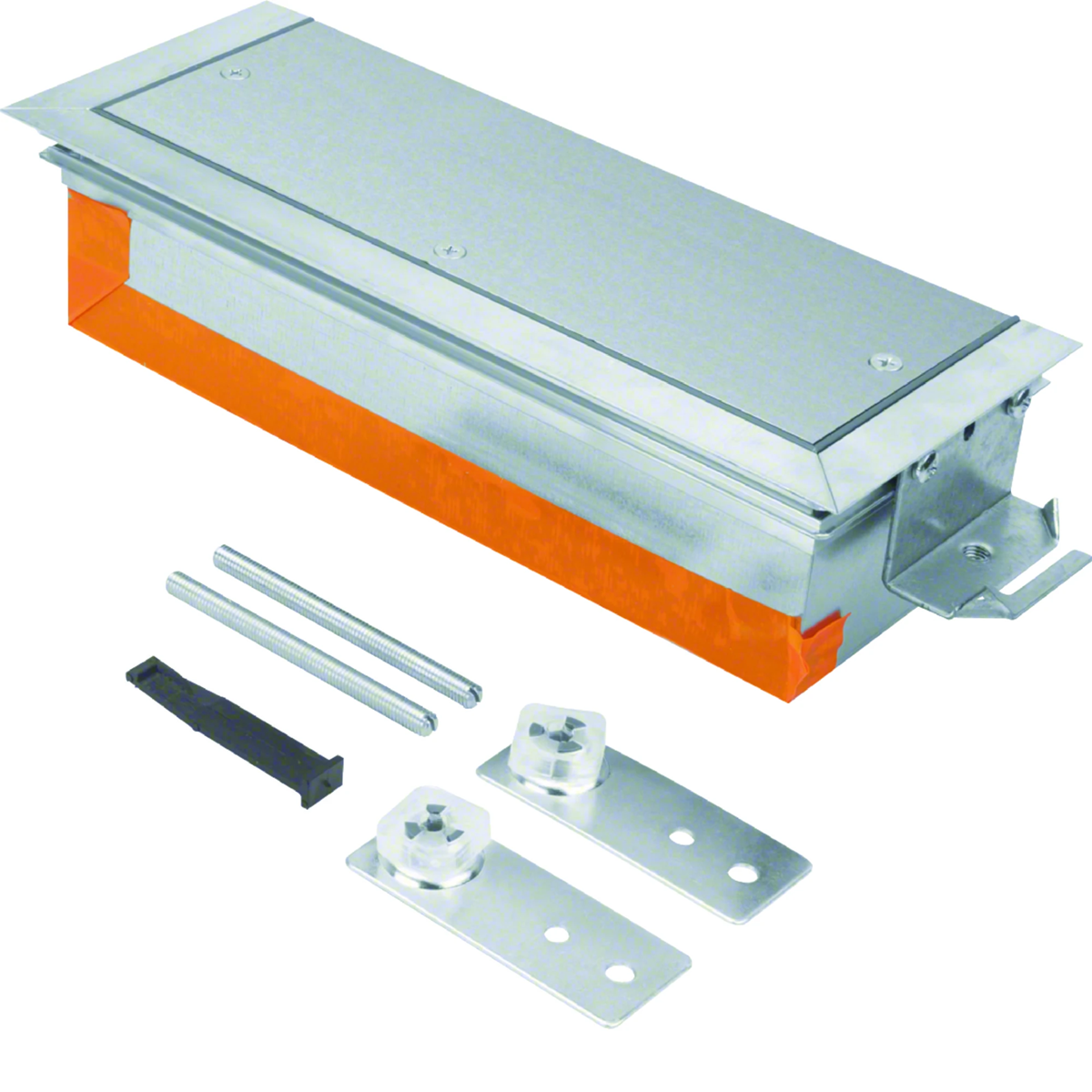

Name: TEHALIT.BK Channel end piece steel tub BKW 300x(60-100) steel
Brand: TEHALIT
SKU: TAK756TEHA
Price: 108.12 PLN

Duct end piecefor co-horizontal trunking system with bottom tub for BKW dry-cleaned floors, series tehalit.BK.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Halogen free

Yes
Color

Silver
Family

TEHALIT.BK
Height [mm]

60
Leveling range

60/100

Length [mm]

125
Material

Galvanized steel sheet
Width [mm]

300
Accurate color

galvanized
PKWIU

25.99.29.0

Other technical data

Width

300 mm
Suitable for subfloor duct overhead open

Yes
Suitable for subfloor duct overhead closed

Yes

Height

60 mm
Suitable for subfloor duct countersunk (closed)

No
Levelling range

60 ... 100 mm

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	500 pcs.
Weight (kg)	1,749	1,750	898,000
Width (m)	0,124	0,125	0,800
Length (m)	0,058	0,060	1,000
Depth (m)	0,316	0,370	1,200
