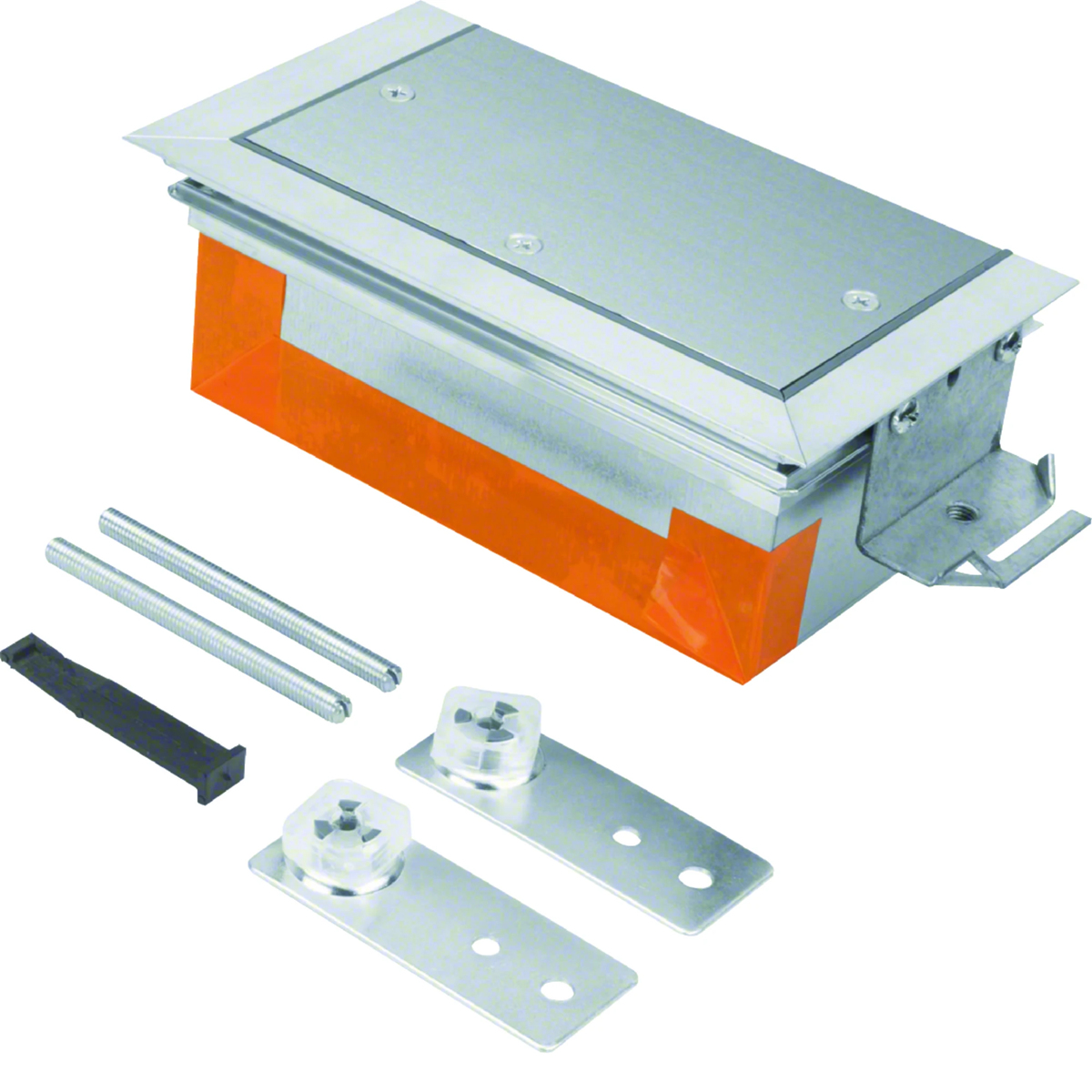

TEHALIT.BK Channel end piece steel tub BKW 200x(80-120) steel BKWE200080

local index:
TAK0K0TEHA
Catalog No:
BKWE200080
EAN code:
4012002247631
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 184
Material: Galvanized steel sheet
Price:
102,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Duct end piecefor co-horizontal trunking system with bottom tub for BKW dry-cleaned floors, series tehalit.BK.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Technical data

  • Halogen free
    Yes
  • Material
    Galvanized steel sheet
  • Width [mm]
    200

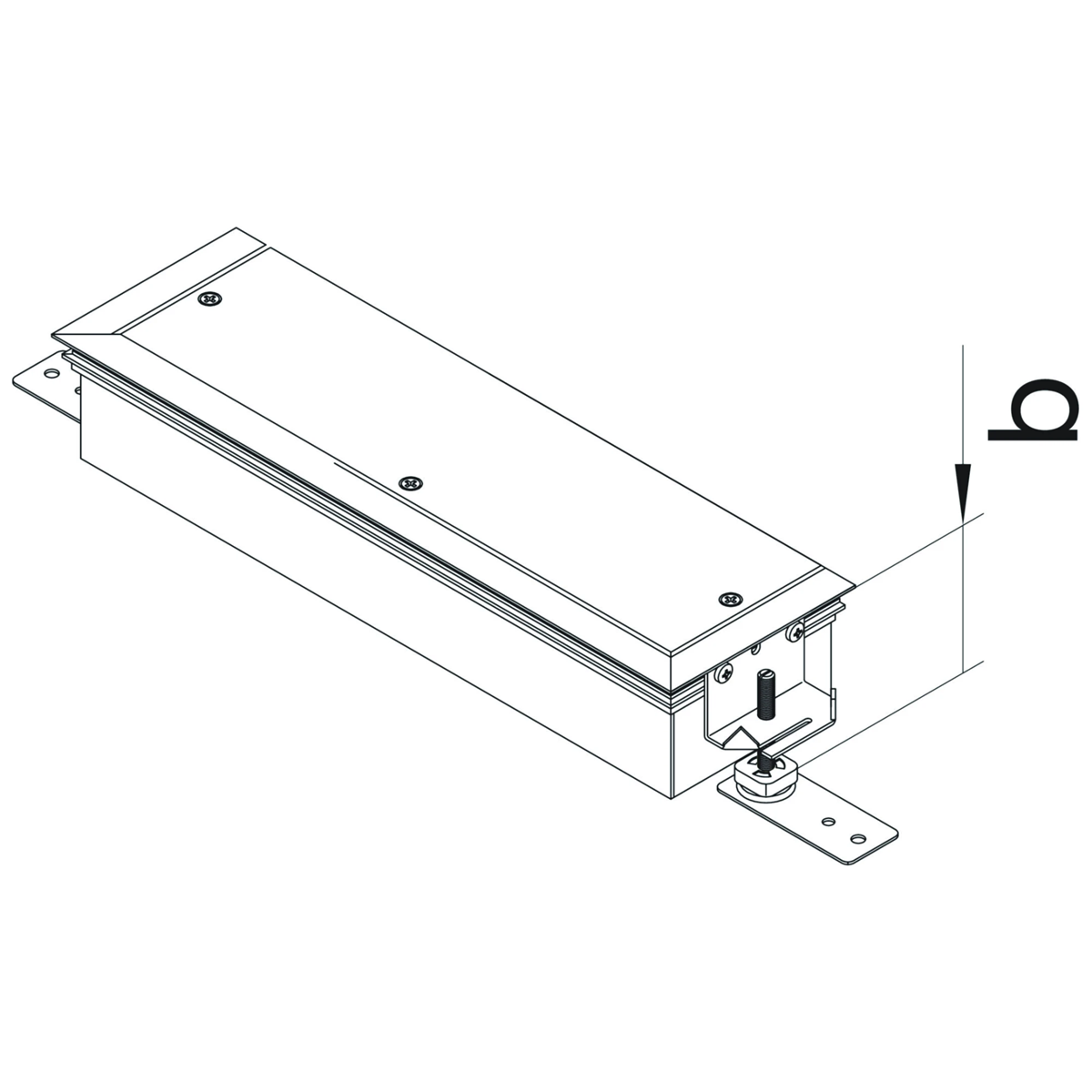

  • Leveling range
    80/120
  • Length [mm]
    184
  • Family
    TEHALIT.BK
  • Height [mm]
    80
  • PKWIU
    25.99.29.0

Other technical data

  • Width
    200 mm
  • Suitable for subfloor duct overhead open
    Yes
  • Suitable for subfloor duct overhead closed
    Yes
  • Height
    80 mm
  • Suitable for subfloor duct countersunk (closed)
    No
  • Levelling range
    80 ... 120 mm

Bulk packaging

A kind of package Paleta
Quantity 1 pcs. 1 pcs.
Weight (kg) 1,516 1,516
Width (m) 0,200 -
Length (m) 0,100 -
Depth (m) 0,125 -
