TEHALIT.AK Underfloor trunking base for 200x70mm cover with slant on both sides, steel AKU2000702

local index:
TKM403TEHA
Catalog No:
AKU2000702
EAN code:
4012002239421
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 2400
Color: Silver
Large-size product
Price:
112,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

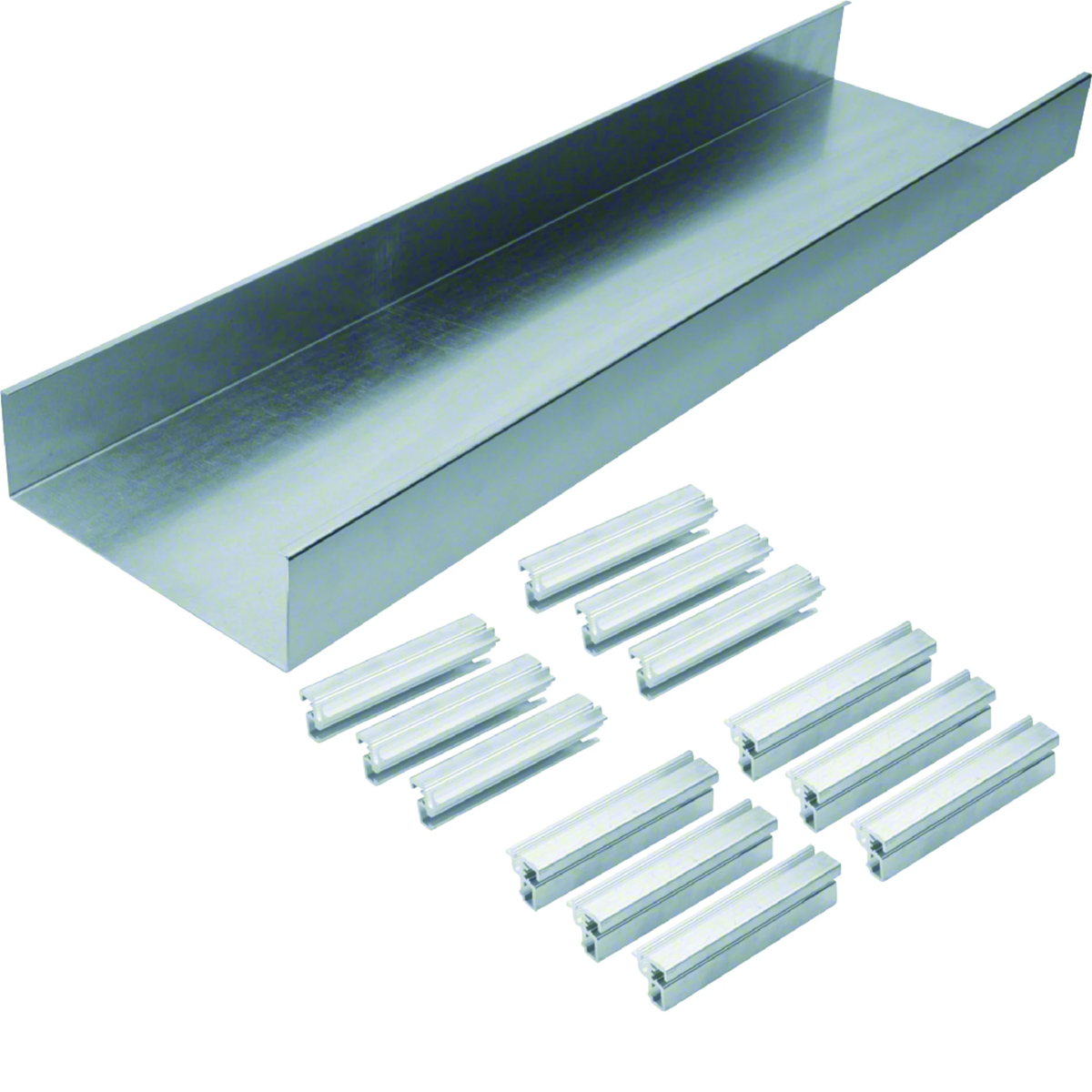

The base of the above-floor trunking for double-sided slanted cover, from the tehalit.AK series.

Characteristics of the series:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    70
  • Accurate color
    galvanized
  • PKWIU
    25.99.29.0
  • Length [mm]
    2400
  • Material
    steel
  • Width [mm]
    200
  • Surface finish
    Galvanized
  • Usable cross-section [mm²]
    14000

Other technical data

  • Suitable for
    Cover double-sided bevelled
  • Max. number of compartments
    1
  • Material
    Steel
  • Width
    200 mm
  • Length
    2400 mm
  • With partition panel
    No
  • Partition fixing
    Screwing
  • Surface protection
    Galvanized
  • Height
    70 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 10 pcs.
Weight (kg) 2,916 6,998 109,980
Width (m) 0,200 - 0,800
Length (m) 0,070 - 1,000
Depth (m) 1,000 - 2,500
