TEHALIT.AK Overfloor trunking cover slanted on one side 800mm internal angle widening 100mm 300x70mm steel AKBI3000701V

local index:
TKM214TEHA
Catalog No:
AKBI3000701V
EAN code:
4012002243329
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 800
Function: Inside angle
Price:
269,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

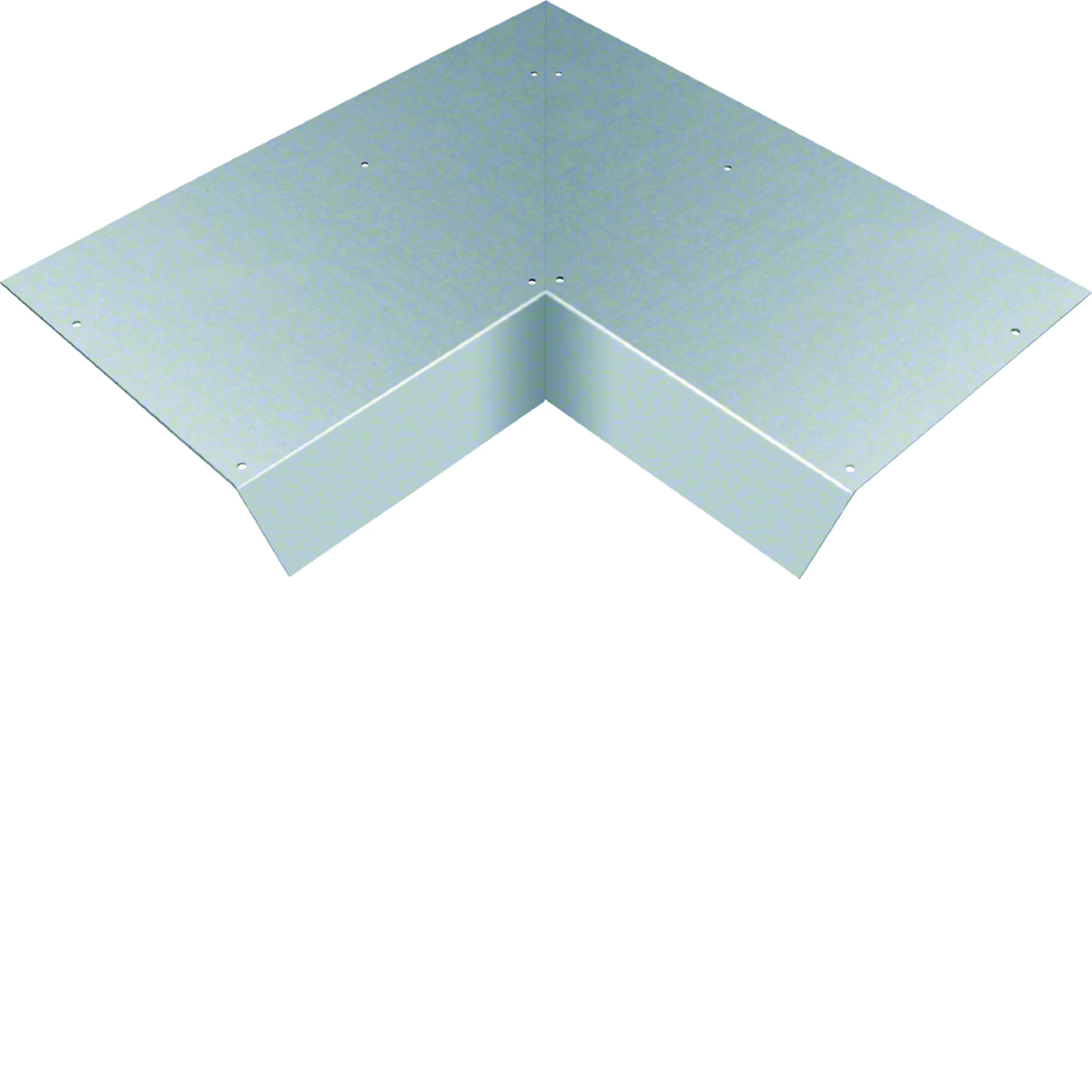

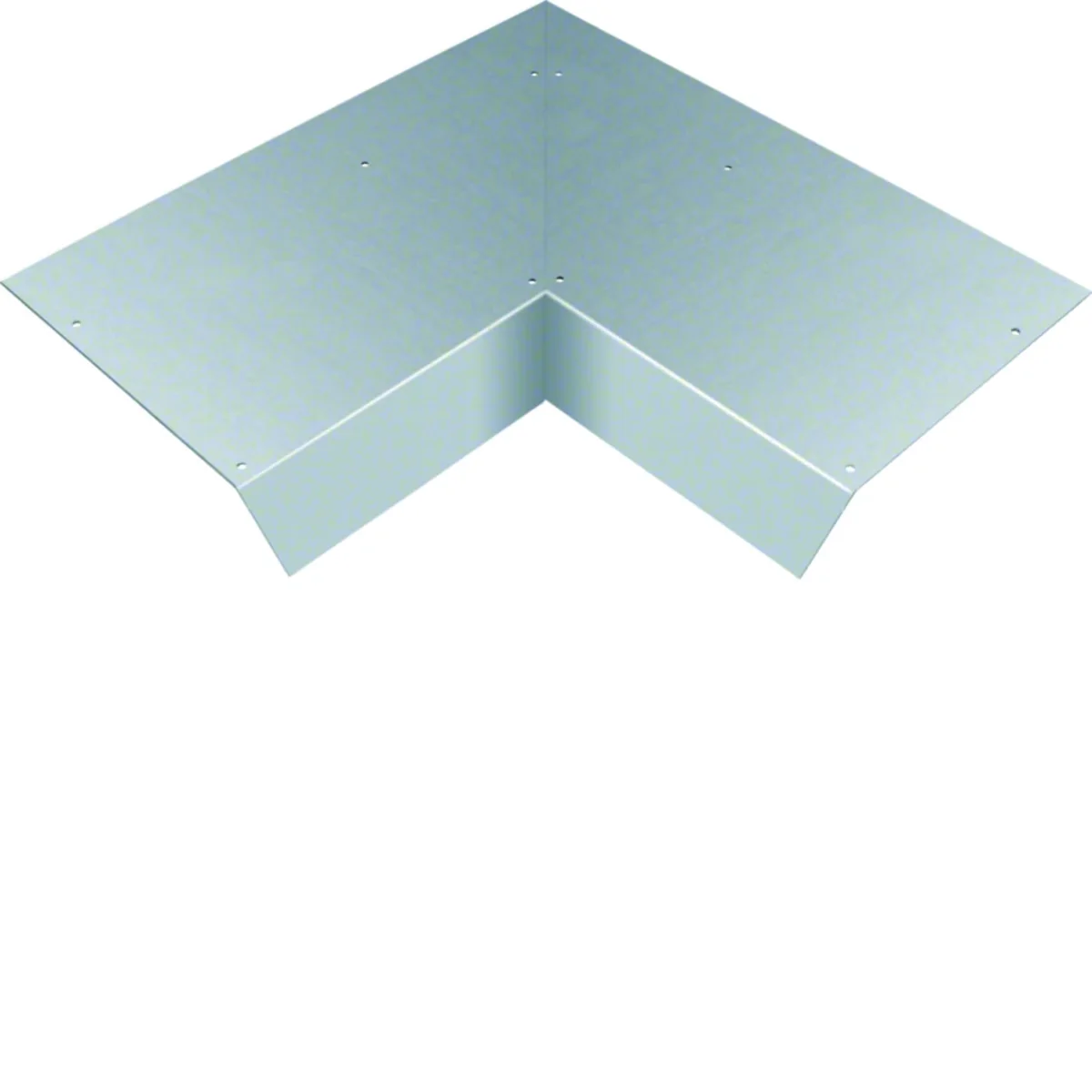

Overfloor trunking cover one side slanted, internal angle, 100mm extension, tehalit.AK series.

Series characteristics:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Technical data

  • Halogen free
    Yes
  • Function
    Inside angle
  • Material
    Metal
  • Width [mm]
    300
  • Accurate color
    galvanized
  • Length [mm]
    800
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    70
  • PKWIU
    25.99.29.0

Other technical data

  • Model
    Cover one-sided bevelled
  • Function
    Inner corner
  • Height
    70 mm
  • Mounting opening
    None
  • With connection opening
    No
  • With protrusion/offset
    Yes
  • Width
    300 mm
  • Length
    800 mm
  • Number of mounting openings
    0
  • Material
    Steel

Bulk packaging

A kind of package Paleta
Quantity 1 pcs. 1 pcs.
Weight (kg) 16,217 16,217
Width (m) 0,470 -
Length (m) 0,070 -
Depth (m) 0,800 -
