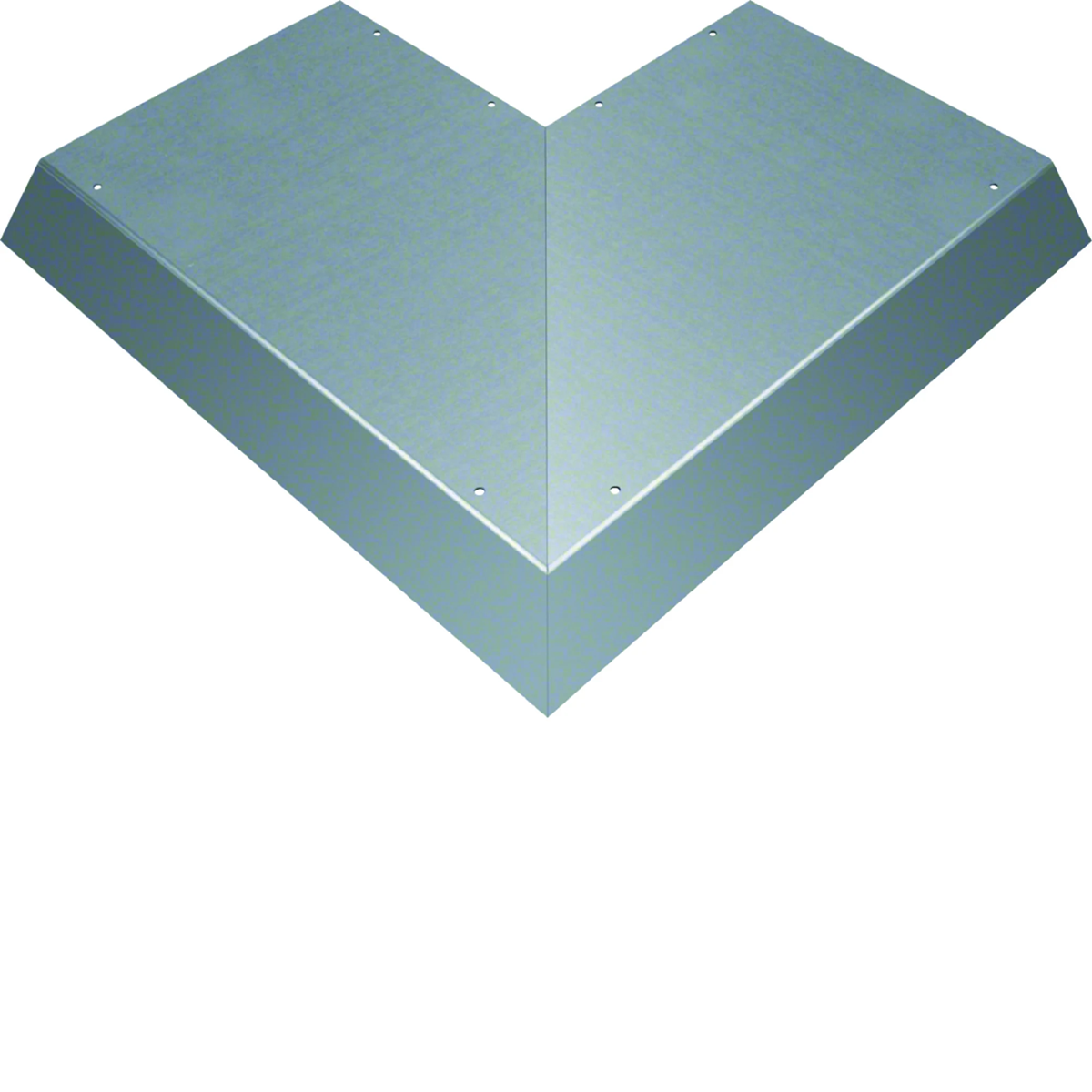

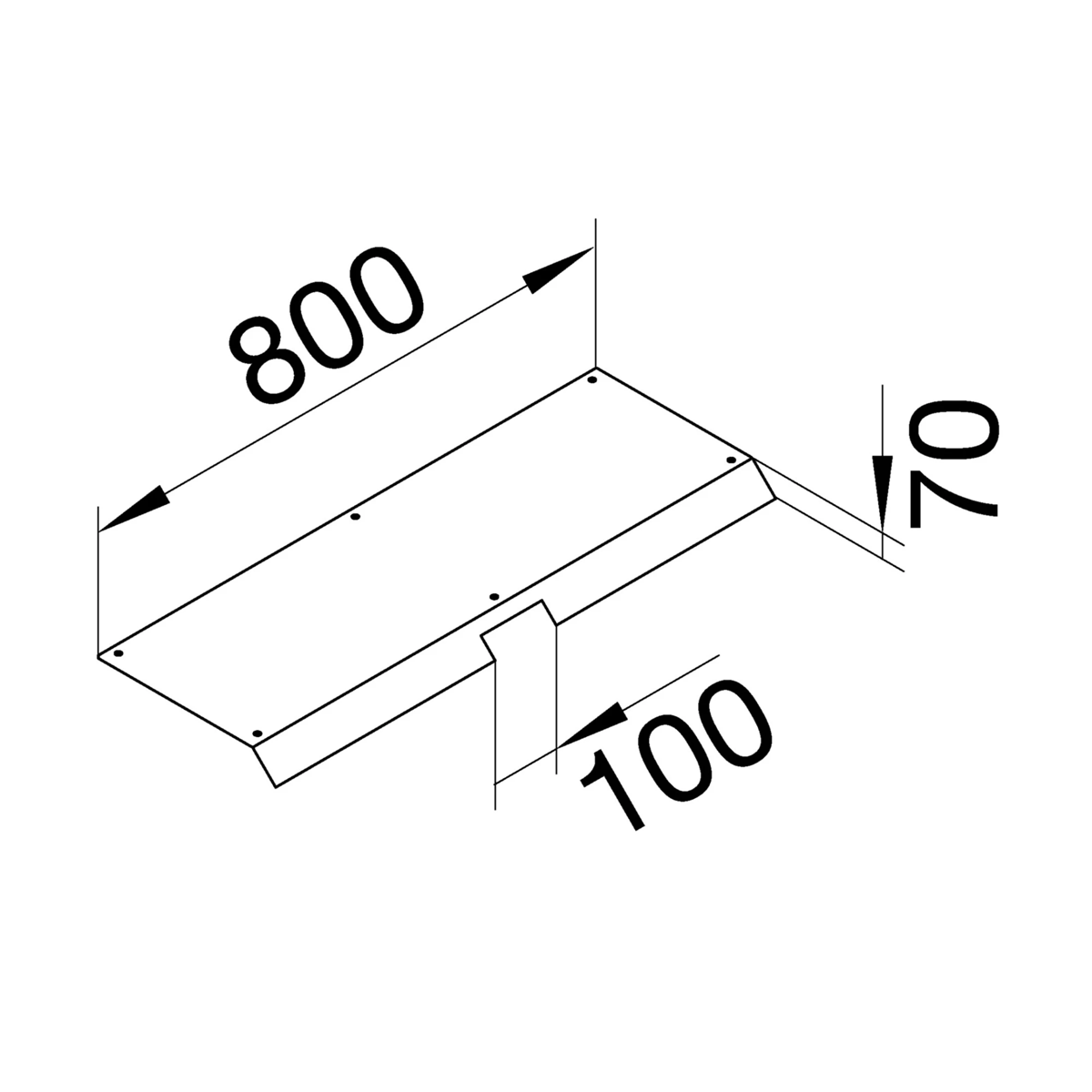

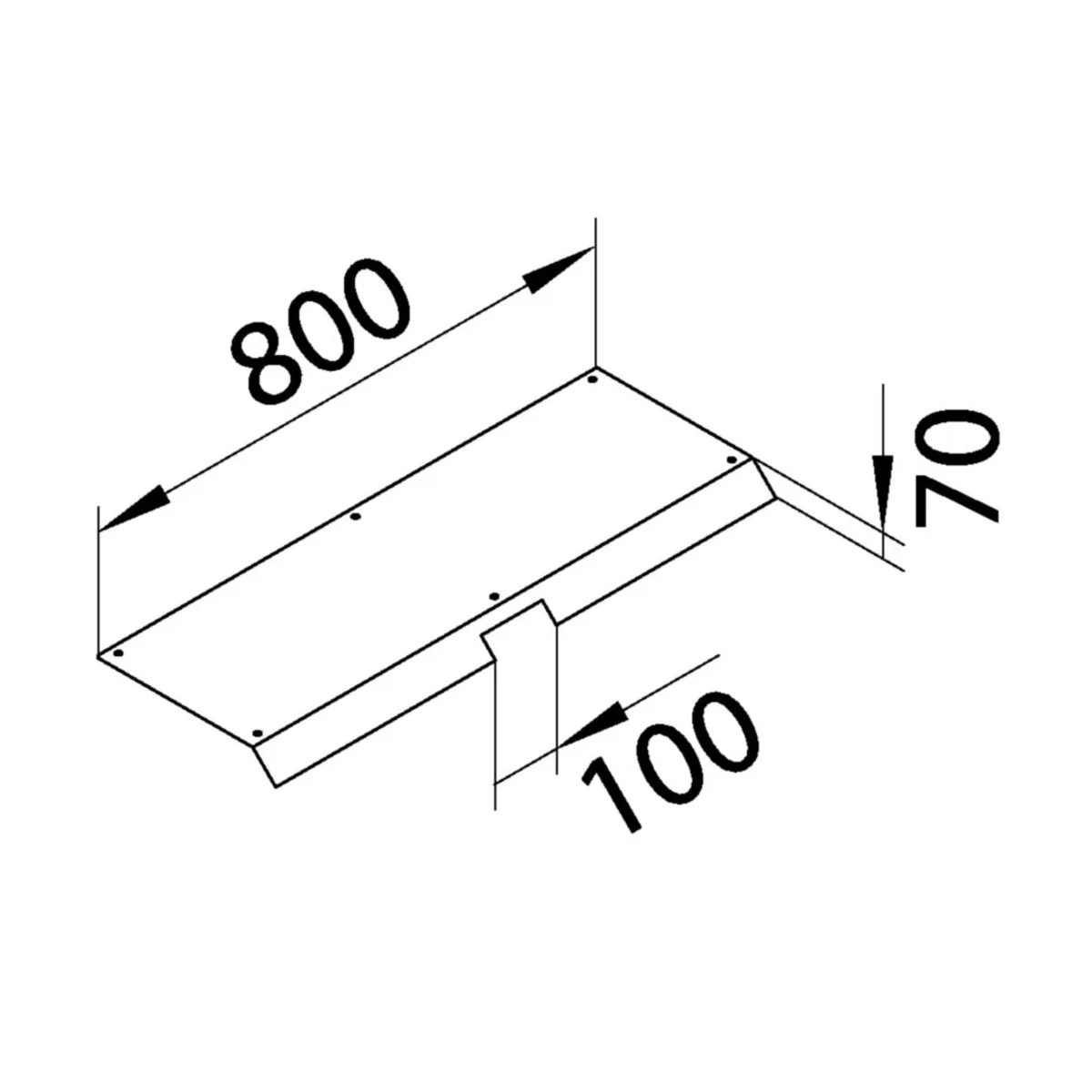

TEHALIT.AK Overfloor trunking cover slanted on one side 800mm external angle 400x70mm steel AKBA4000701

Índice local:
TKM094TEHA
Número de catálogo:
AKBA4000701
Código EAN:
4012002242957
Fabricante: TEHALIT
Halogen free: Yes
Length [mm]: 800
Function: External angle
Precio:
1 306,15 zł
gross / uds.
(IVA incluido 23%)
hasta 4 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Overfloor trunking cover one side slanted, external angle, tehalit.AK series.

Series characteristics:< /p>

Above-floor ducts (installed on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Datos técnicos

  • Halogen free
    Yes
  • Function
    External angle
  • Material
    Metal
  • Width [mm]
    400
  • Accurate color
    galvanized
  • Length [mm]
    800
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    70
  • PKWIU
    25.99.29.0

Otros datos técnicos

  • Model
    Cover one-sided bevelled
  • Function
    Outer corner
  • Height
    70 mm
  • Mounting opening
    None
  • With connection opening
    No
  • With protrusion/offset
    No
  • Width
    400 mm
  • Length
    800 mm
  • Number of mounting openings
    0
  • Material
    Steel

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Karton
Cantidad 1 uds. 1 uds.
Peso (kg) 16,217 16,217
