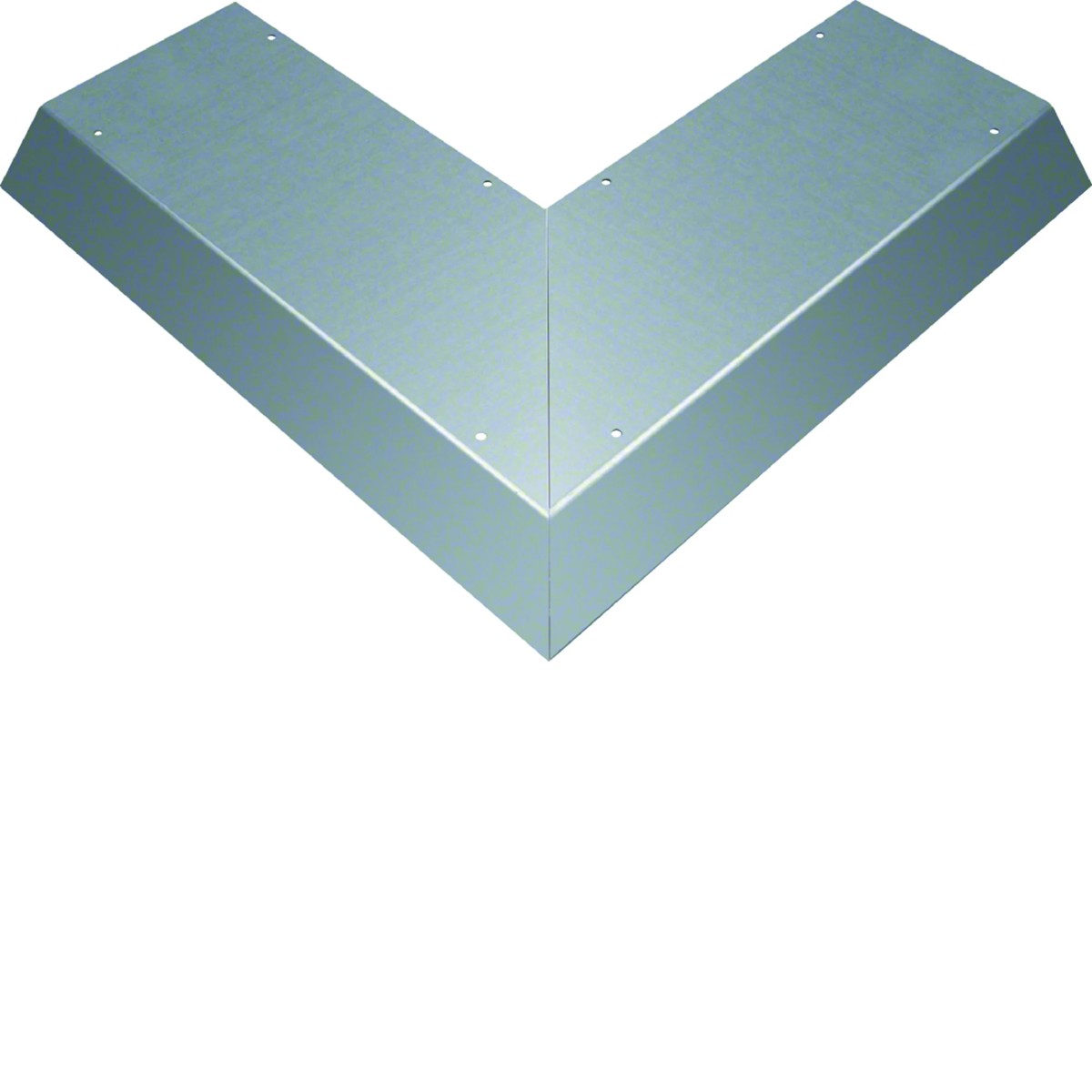

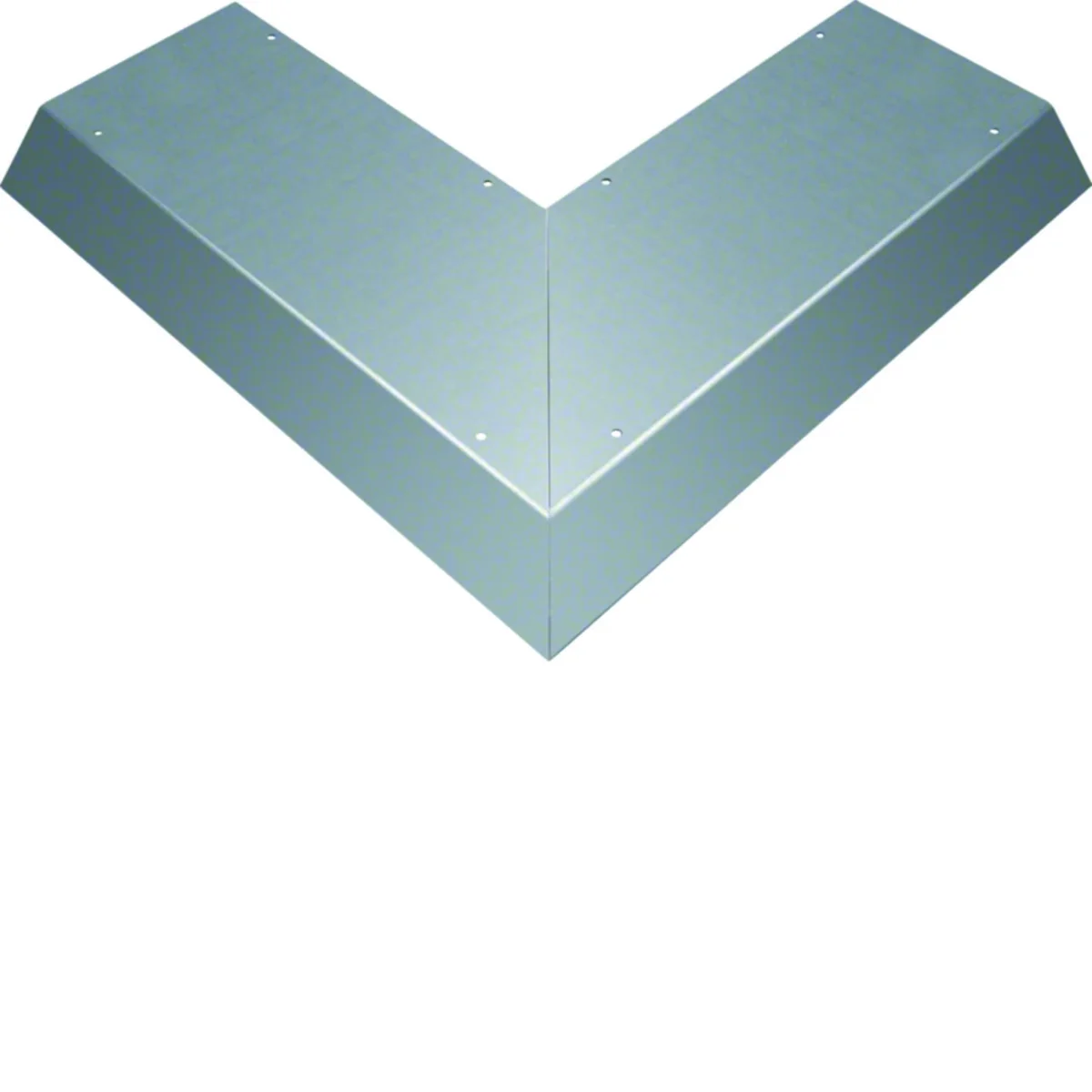

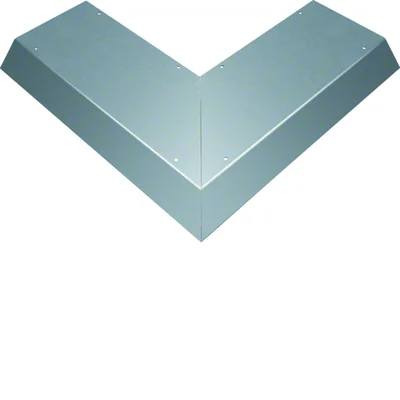

TEHALIT.AK Overfloor trunking cover slanted on one side 800mm external angle 250x70mm steel AKBA2500701

Index local:
TKM090TEHA
Numéro de catalogue:
AKBA2500701
Code EAN:
4012002242872
Producteur: TEHALIT
Halogen free: Yes
Length [mm]: 800
Function: External angle
Prix:
275,09 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

Overfloor trunk cover one-sided slanted, external angle, tehalit.AK series.

Series characteristics:< /p>

Above-floor ducts (installed on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Données techniques

  • Halogen free
    Yes
  • Function
    External angle
  • Material
    Metal
  • Width [mm]
    250
  • Accurate color
    galvanized
  • Length [mm]
    800
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    70
  • PKWIU
    25.99.29.0

Autres données techniques

  • Model
    Cover one-sided bevelled
  • Function
    Outer corner
  • Height
    70 mm
  • Mounting opening
    None
  • With connection opening
    No
  • With protrusion/offset
    No
  • Width
    250 mm
  • Length
    800 mm
  • Number of mounting openings
    0
  • Material
    Steel

Détails du fabricant

  • Producteur
    HAGER POLO Sp. z o. o.
  • Adresse
    43-100 Tychy Fabryczna 10
  • Numéro identifiant TVA
    6460015532

Emballage en vrac

Une sorte de paquet Karton Paleta
Quantité 1 pcs. 20 pcs.
poids (kg) 11,960 264,200
Largeur (m) - 0,800
Longueur (m) - 1,050
Profondeur (m) - 1,200
