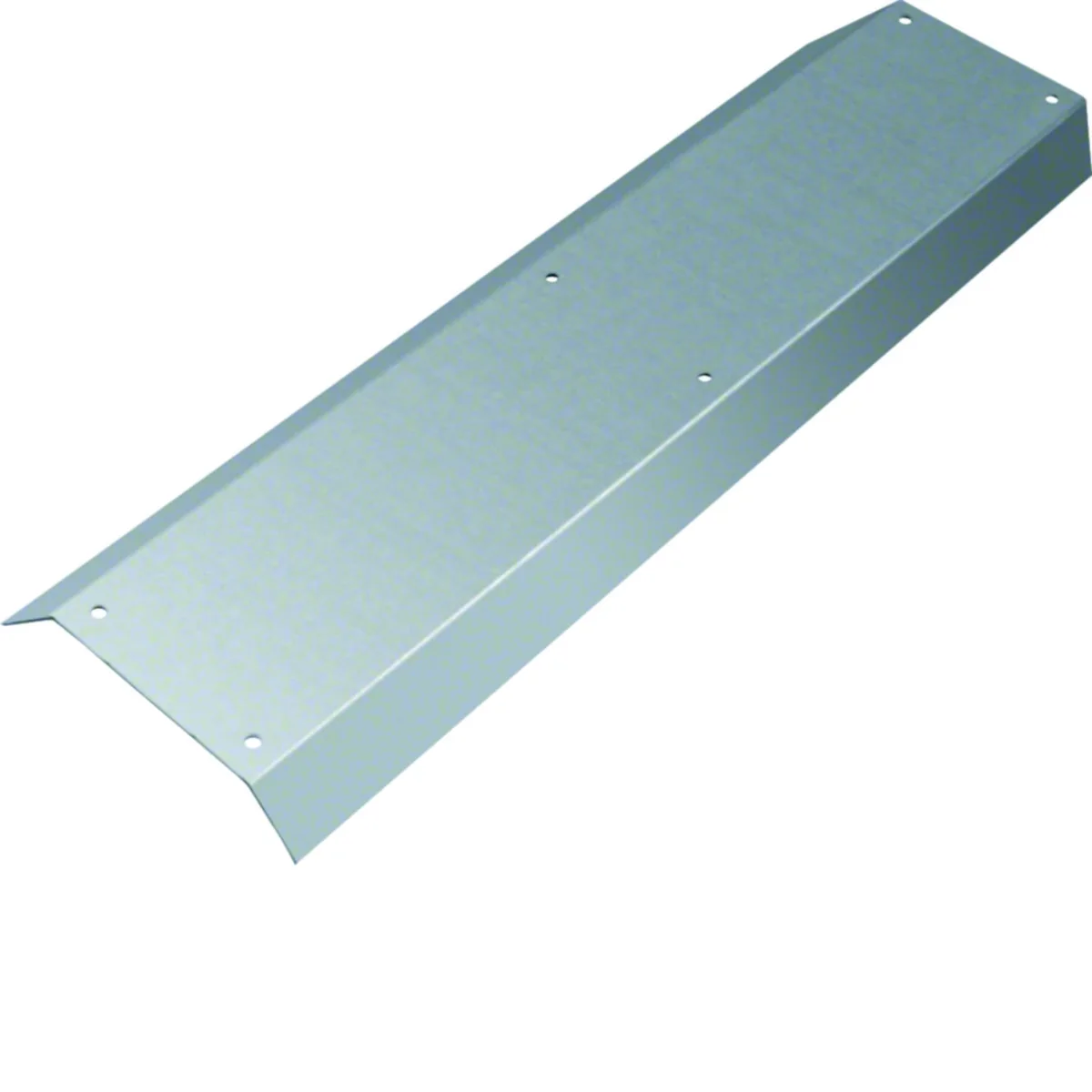

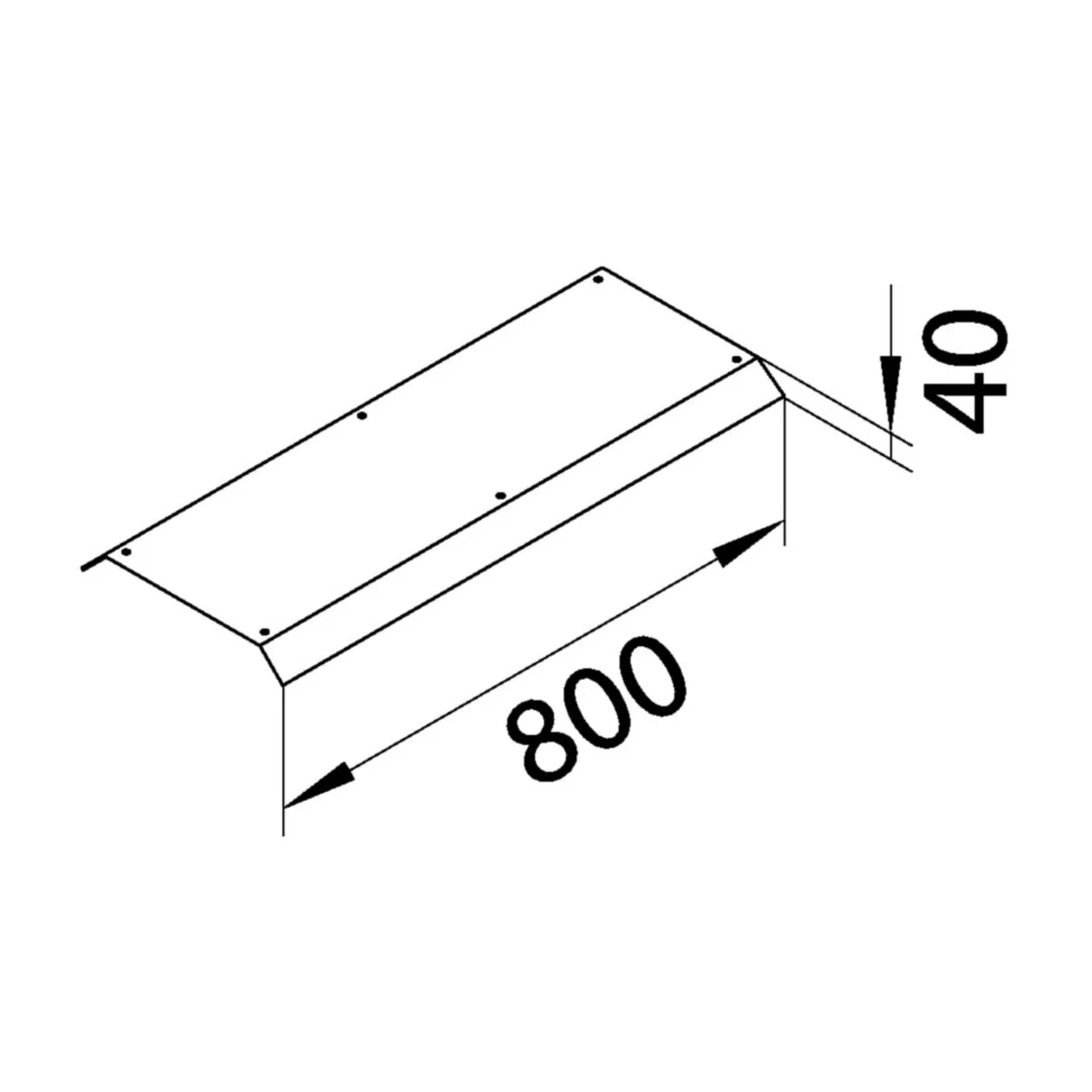

Name: TEHALIT.AK Overfloor trunking cover slanted on both sides 45° 800mm 150x40mm steel
Brand: TEHALIT
SKU: TKM095TEHA
Price: 280.48 PLN

Cover cover slanted on both sides 45°, tehalit.AK series.

Characteristics of the series:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Halogen free

Yes
Function

Connection
Material

Metal
Width [mm]

150
Accurate color

galvanized

Length [mm]

800
Color

Silver
Family

TEHALIT.AK
Height [mm]

40
PKWIU

25.99.29.0

Other technical data

Model

Cover one-sided bevelled
Function

Junction
Height

40 mm
Mounting opening

None
With connection opening

No

With protrusion/offset

No
Width

150 mm
Length

800 mm
Number of mounting openings

0
Material

Steel

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	100 pcs.
Weight (kg)	5,128	5,129	552,900
Width (m)	0,233	-	-
Length (m)	0,040	-	-
Depth (m)	0,800	-	-
